4 PROGRAMMING & ADJUSTMENTS USING DIGITAL CONSOLE
4.1 ADJUSTMENTS VIA CONSOLE
Adjustment of Parameters and changes to the chopper’s configuration are made using
the Digital Console. The Console is connected to the “B” connector of the SEM-X
Chopper.
Pay attention to the polarity of the Console Connector when connecting to
the chopper. The bevel on the connector should be uppermost.

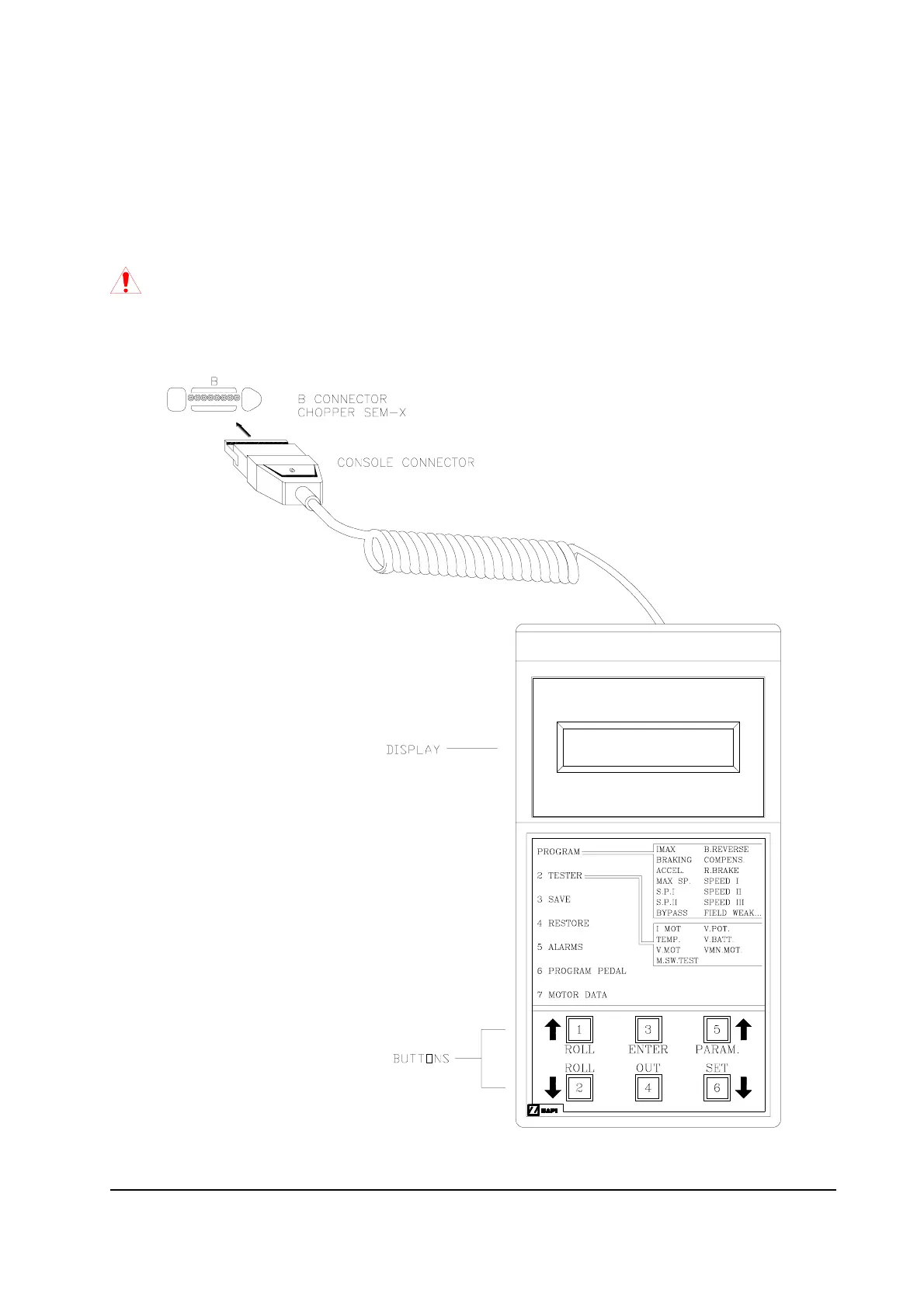

4.2 DESCRIPTION OF CONSOLE & CONNECTION
Digital Consoles used to communicate with SEM-X choppers must be fitted with Eprom
CK ULTRA.
