Page 30/60 H2B USER'S MANUAL - 550145G

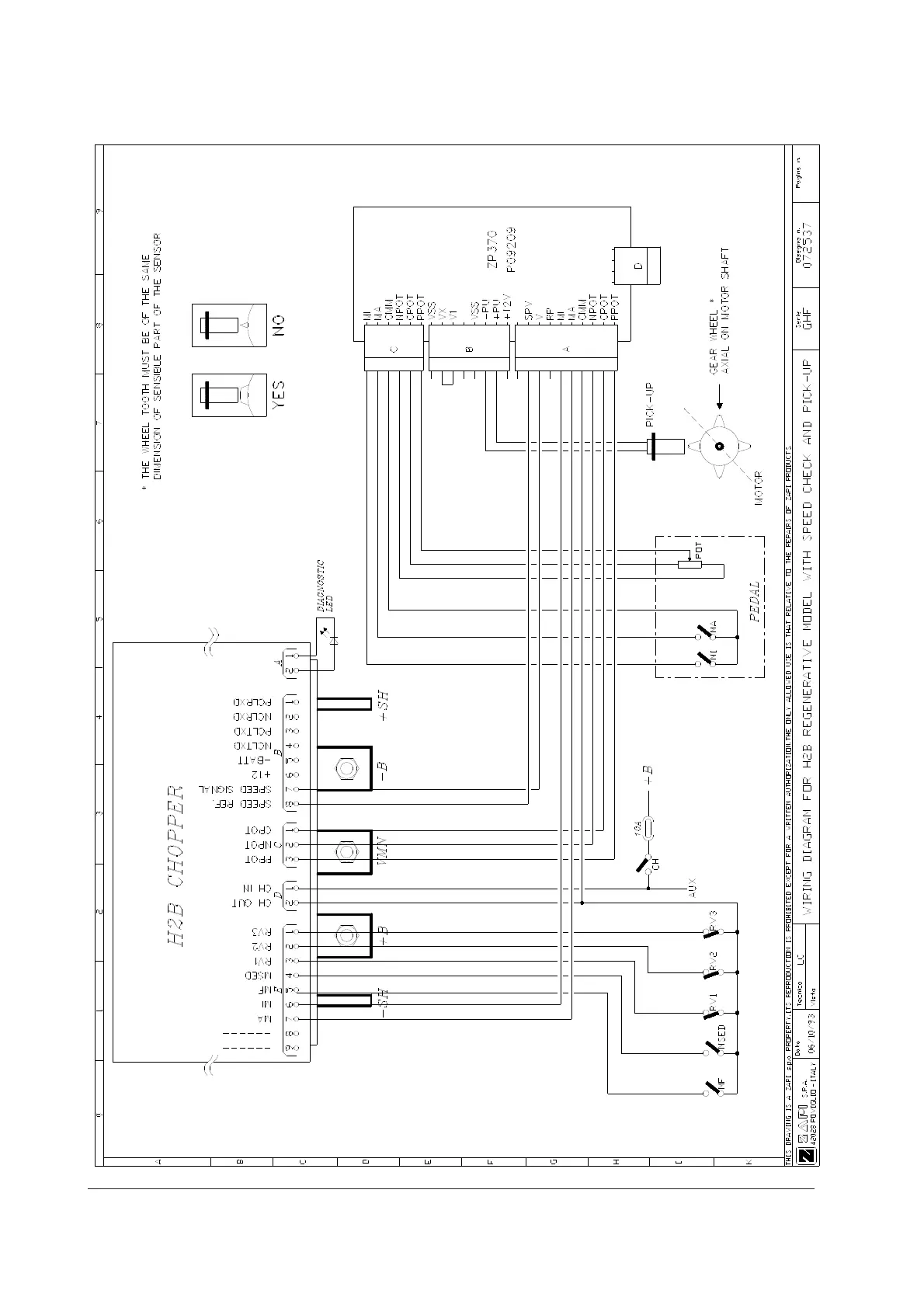

5.1.7 Wiring diagram for H2B regenrative model with speed check and pick-up
