Page 54/60 H2B USER'S MANUAL - 550145G
4) MAIN CONTACTOR
present The output G5 handles a main contactor.
running status The output G5 is active when the chopper is carrying
out any function (except descent).
A detailed description of the meanings is given on point 6.1.2 as per the H2B standard
lifting model.
6.2.3 Parameter modifications h2b configuration pump + 3rd motor
The parameters is same a the point 6.1.3 and the chart 6.1.4, exept for HYDROSPEED
COARSE / FINE / COMP, not present in this model.

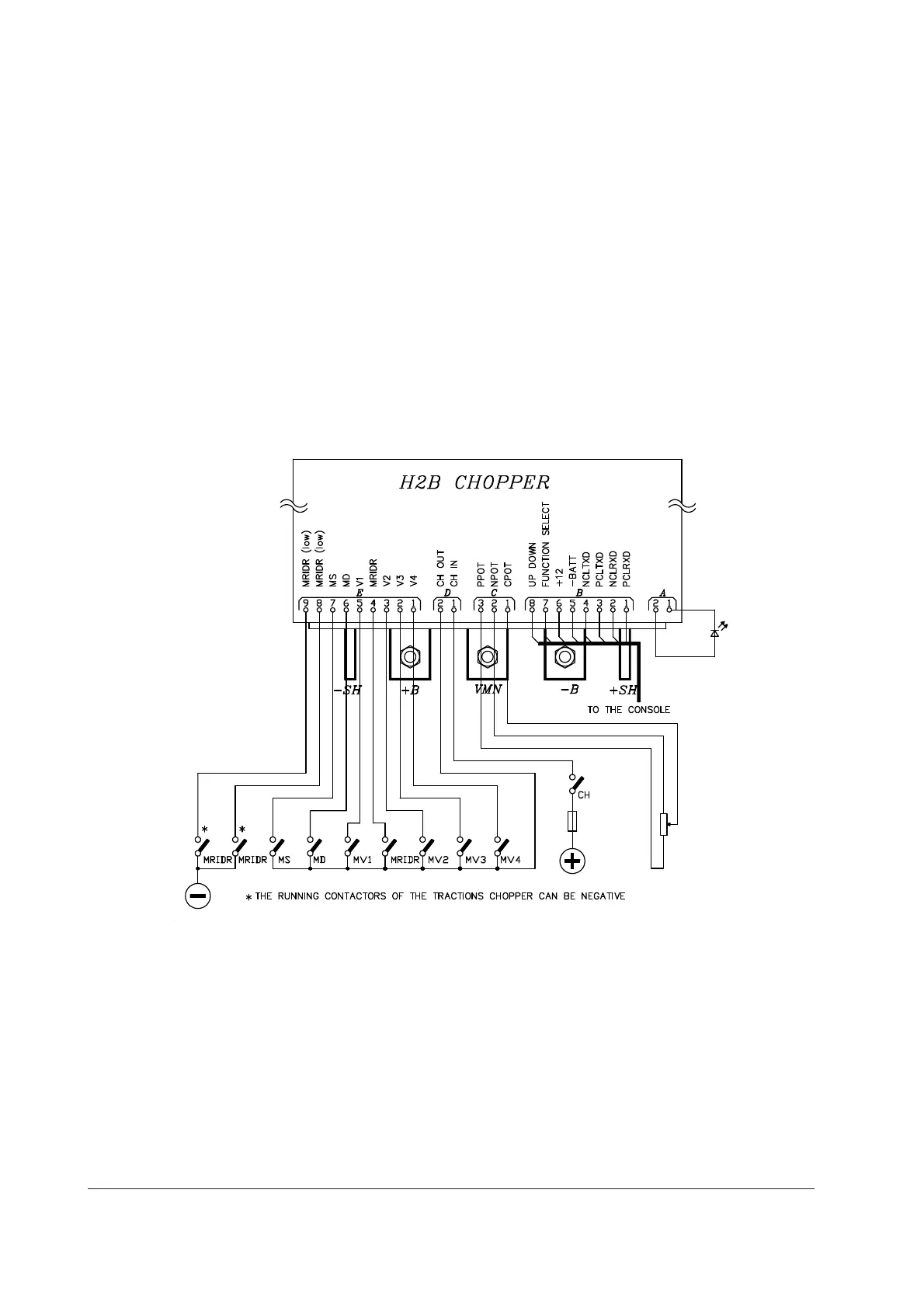

6.2.4 H2B electrical connection diagrams pump + hydro
