3. Installation
3.1. Product overview
The 1PH HYD3000-HYD6000-ZSS inverter is subjected to strict controls and inspection before packaging and
delivery. Do not turn the 1PH HYD3000-HYD6000-ZSS inverter upside down during delivery.
Carefully check the packaging and product fittings before installation.
Caution

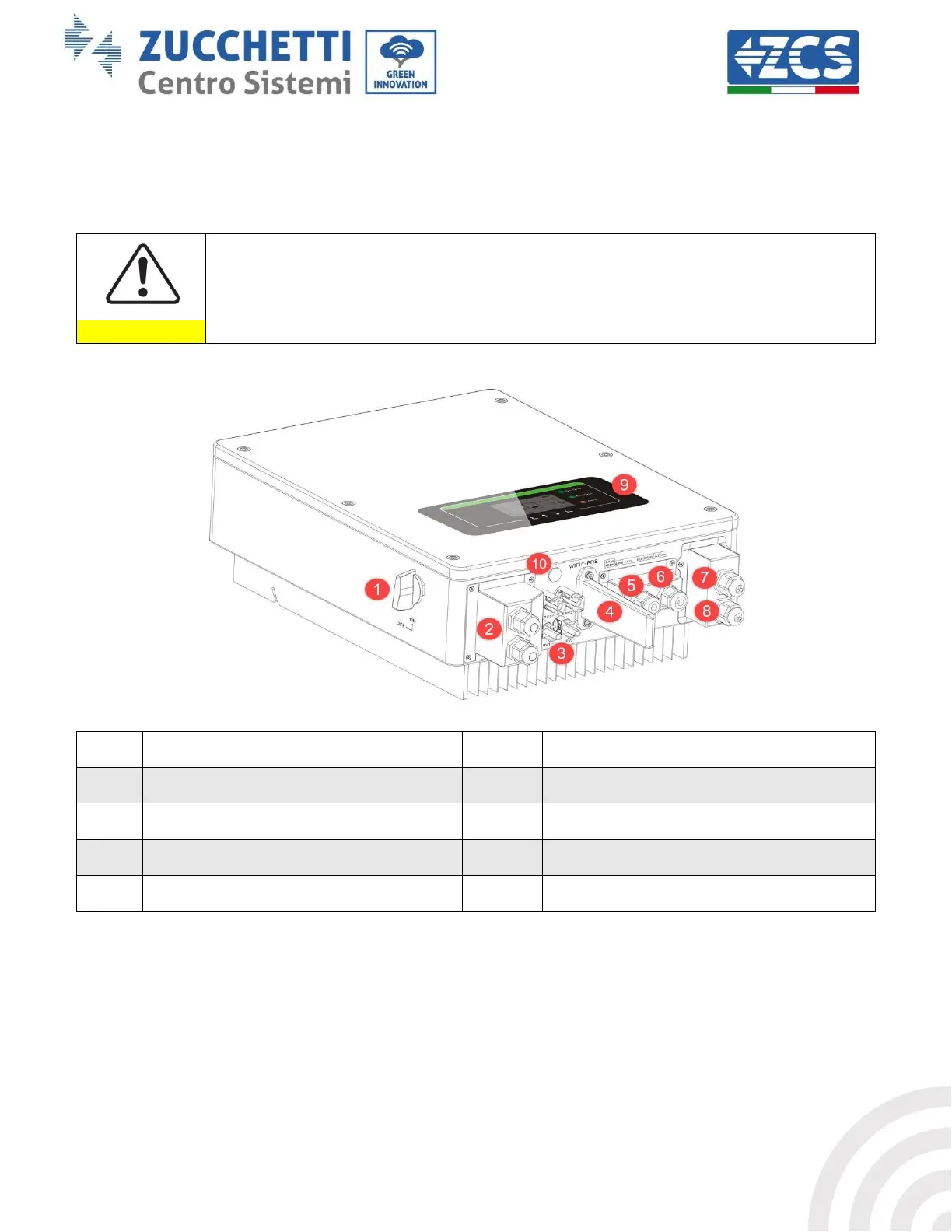

Figure 2 - Diagram of a system on which an 1PH HYD3000-HYD6000-ZSS hybrid is installed
1
DC switch
6
Current transformer port
2
Battery input terminals
7
Critical load connection port
3
PV input terminals
8
Grid connection port
4
Wi-Fi/GPRS adaptor
9
LCD
5
BMS communication interface
10
Vent valve
3.2. Contents of the packaging
Carefully inspect the packaging and accessories before installation. The packaging should contain the following
accessories:
