Page 1-4 105SL Maintenance Manual 32056L Rev. 2 12/4/01
SECTION 1 DESCRIPTION OF EQUIPMENT

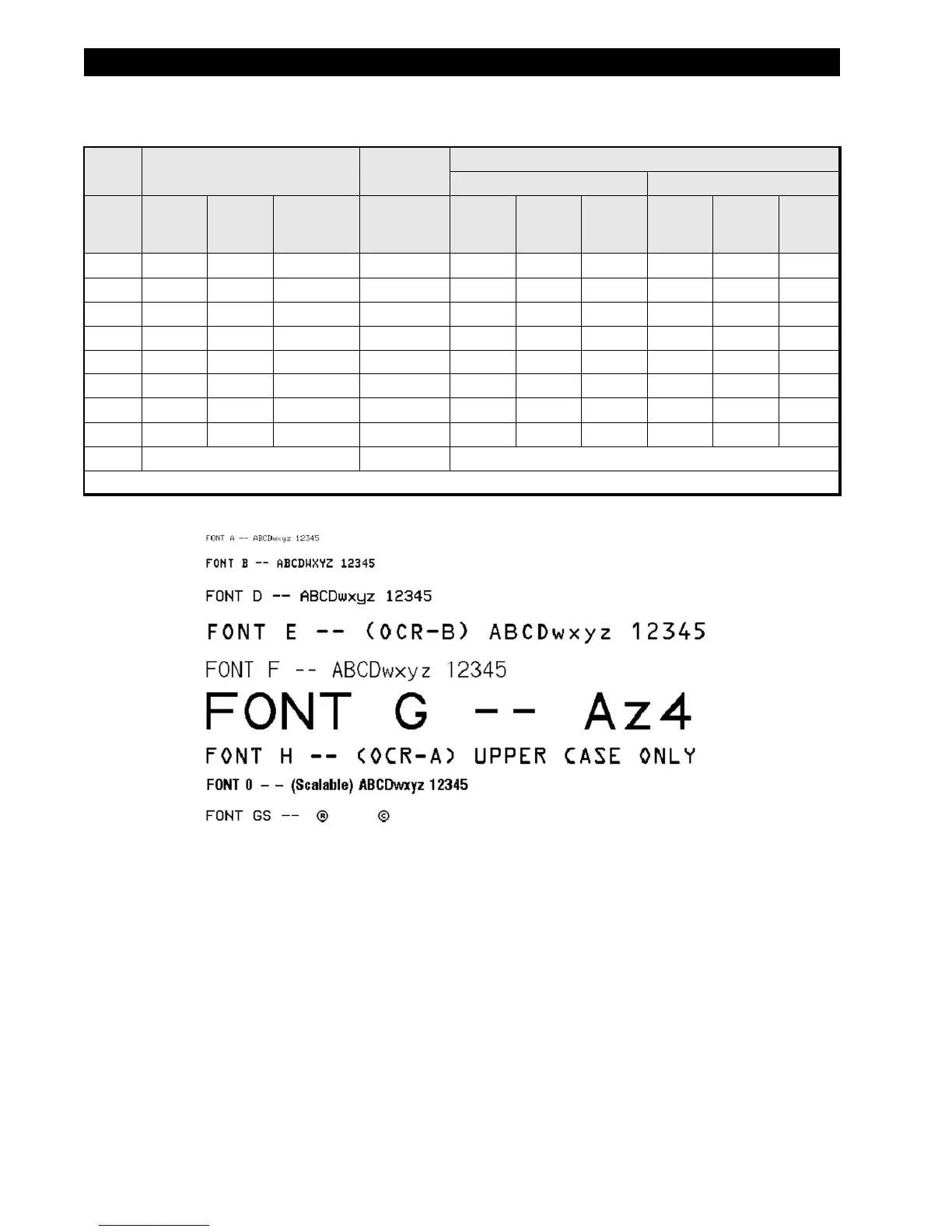

Figure 1-1. Default Fonts Examples
Table 1-2. Font Matrices for 12 dot/mm (300 DPI) 105SL Printheads
Font Matrix Type*
Character Size
Inches Millimeters
Height Width
Inter-
character
gap
Height Width
Char./
Inch
Height Width
Char./
mm
A 9 5 1 U-L-D 0.030 0.020 50.0 0.76 0.51 1.97
B 11 7 2 U 0.037 0.030 33.3 0.93 0.76 1.31
C,D 18 10 2 U-L-D 0.060 0.040 25.0 1.53 1.02 0.98
E 41 20 6 OCR-B 0.137 0.087 11.5 3.47 2.20 0.45
F 26 13 3 U-L-D 0.087 0.053 18.7 2.20 1.36 0.74
G 60 40 8 U-L-D 0.200 0.160 6.2 5.08 4.07 0.25
H 30 19 9 OCR-A 0.100 0.093 10.7 2.54 2.37 0.42
GS 24 24 0 SYMBOL 0.080 0.080 12.5 2.03 2.03 0.49
0 variable U-L-D variable
* U = Uppercase, L = Lowercase, D = Descenders
