32056L Rev. 2 12/4/01 105SL Maintenance Manual Page 5-25
MAINTENANCE AND ASSEMBLY DRAWINGS SECTION 5
*Only available in quantities of 50 as Part Number HW07229
**Only available in quantities of 25 as Part Number HW46105
†Only available in quantities of 25 as Part Number HW30105
Table 5-13. Pivot Bar Assembly
Item Part Number Description Qty
1 32034M Kit, Maintenance Pivot Bar 1
2 . Shield, Tri-mount 1
3 . Flag, Sensor 1
4 35099M . Assembly, Maintenance, Toggle Move 1
5 30391-006 . Screw, 4-40 x 0.37 1
6 . Washer, Wave 0.49 x 0.33 x 0.0075 1
7 . Printhead Lever 1
8 Bearing, Nylon 0.312 x 0.251 x 0.140 1
9
† Bearing, Nylon 0.312 x 0.251 x 0.078 1
Bold = Part available for purchase
Light italic = Part not available for purchase, listed and shown for reference only

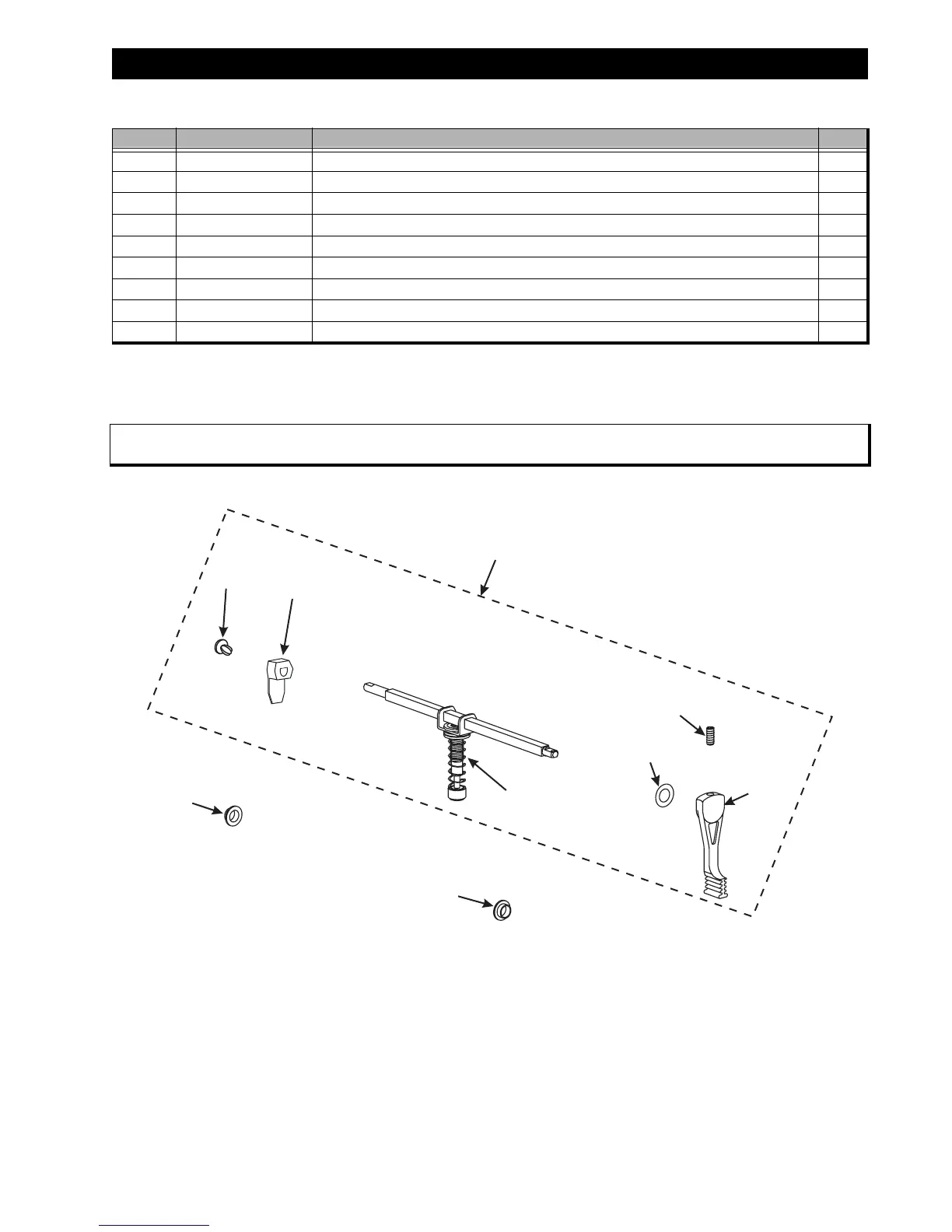

Figure 5-13. Pivot Bar Assembly
3
2
4
5
6
7
9
1
8
To Next Page
