Page 5-24 105SL Maintenance Manual 32056L Rev. 2 12/4/01
SECTION 5 MAINTENANCE AND ASSEMBLY DRAWINGS
Table 5-12. AC and DC Power Supplies
Item Part Number Description
Qty
1
32060M
Kit, Maintenance AC Power Supply (Configuration Numbers
10500-0XXX-XXXX and 10500-1XXX-XXXX) 1
2  . Assembly, AC Power Supply 1
3 49285 . Pad, Insulation 1
4
32070M
Kit, Maintenance DC Power Supply (Configuration Numbers
10500-0XXX-XXXX and 10500-1XXX-XXXX) 1
5  . Assembly, DC Power Supply 1
6 49286 . Pad, Insulation 1
7 01130 . Nut, 6-32 2
8 46392-006 . Screw, 6-32 x 0.37 1
9 33050M
Kit, Maintenance AC/DC Power Supply (Configuration Numbers
10500-2XXX-XXXX and 10500-3XXX-XXXX
1
10  . Assembly, AC/DC Power Supply 1
11  . Pad, Insulation 1
Bold = Part available for purchase
Light italic = Part not available for purchase, listed and shown for reference only

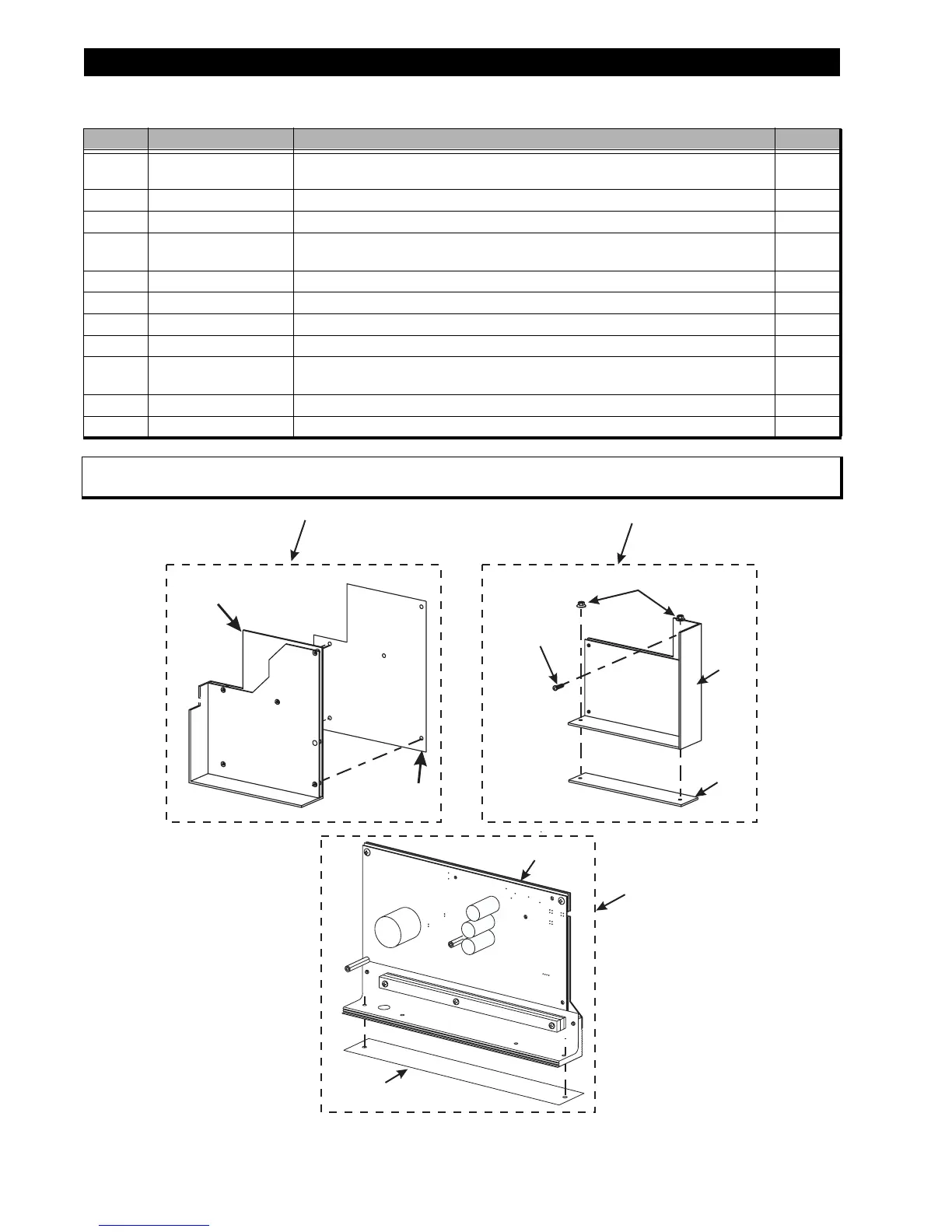

Figure 5-12. Power Supplies
1
2
3
4
7
8
5
6
9
10
11
