32056L Rev. 2 12/4/01 105SL Maintenance Manual Page 5-23
MAINTENANCE AND ASSEMBLY DRAWINGS SECTION 5
*Only available in quantities of 25 as Part Number HW30208
Table 5-11. Front Panel and LCD Display
Item Part Number Description
Qty
1 32021M Kit, Maintenance, Front Membrane Switch 1
2 5HI . Front Panel and Membrane Switch Assy. 1
3 01130 . Nut, 6-32 2
4 . Washer, Flat 0.500 x 0.191 x 0.030 2
5 32043M Kit, Maintenance, LCD 1
6 . LCD Display 1
7 01130 . Nut, 6-32 1
Bold = Part available for purchase
Light italic = Part not available for purchase, listed and shown for reference only

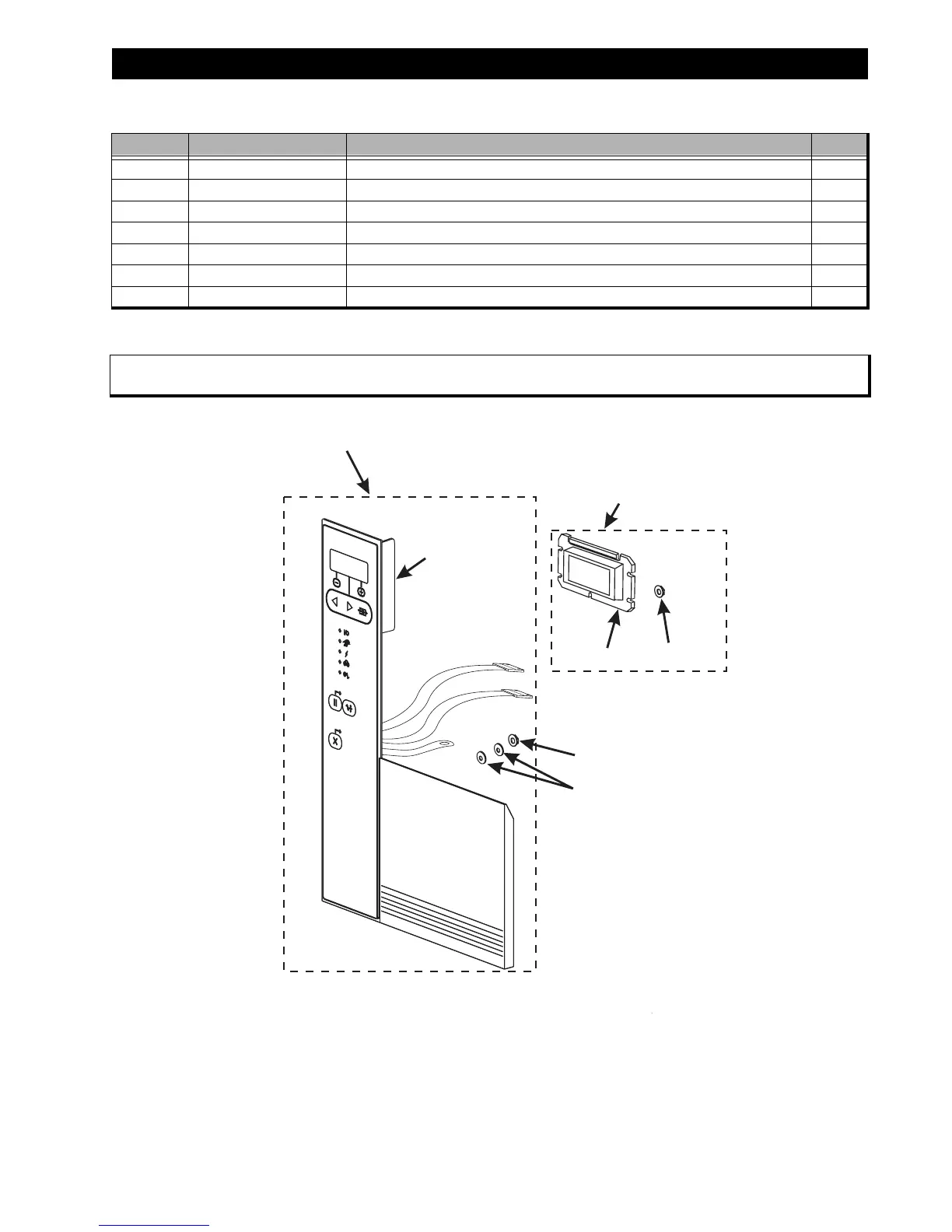

Figure 5-11. Front Panel and LCD Display
