Page 5-22 105SL Maintenance Manual 32056L Rev. 2 12/4/01
SECTION 5 MAINTENANCE AND ASSEMBLY DRAWINGS
*Only available in quantities of 25 as Part Number HW30256-B
**Only available in quantities of 50 as Part Number HW30392-004
Table 5-10. Media Guide Assembly
Item Part Number Description Qty
1 40305RM Kit, Maintenance, Media Guide 1
2 30153 . Guide, Stationary Media 1
3 01130 . Nut, 6-32 1
4 40252R . Support, Media Guide 1
5 30033 . Guide, Adjustable Media 1
6 % . Nut, Thumb 6-32 x 0.50, Brass 1
7 . Screw, Cap 6-32 x 0.25 2
Bold = Part available for purchase
Light italic = Part not available for purchase, listed and shown for reference only

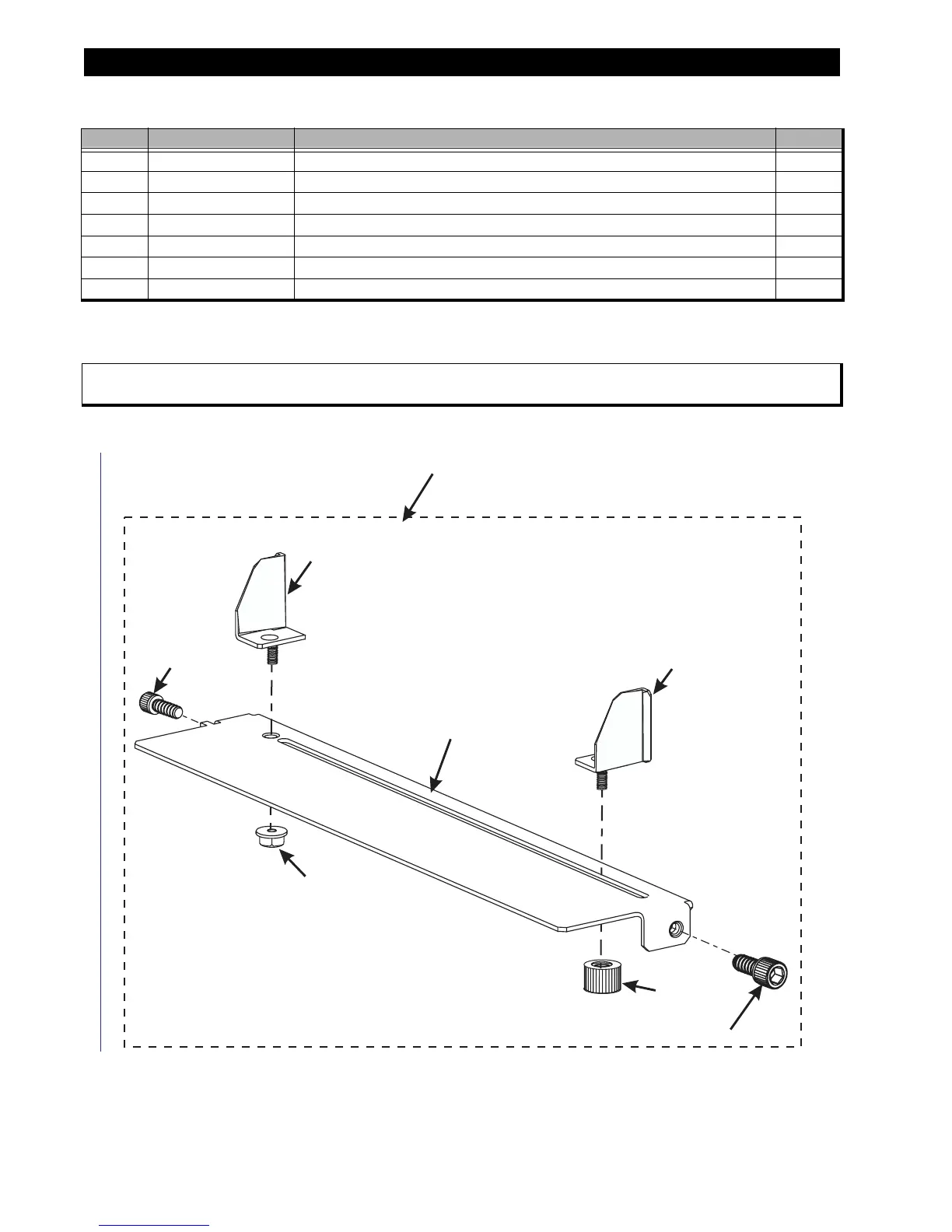

Figure 5-10. Media Guide Assembly
1
2
5
6
7
3
4
7
