RFID TRANSPONDER PLACEMENT /
POWER GUIDELINES
DISCLAIMER
THE INFORMATION CONTAINED IN THIS GUIDELINE IS SUBJECT TO THE WARRANTY DISCLAIMERS, LIMITATIONS
OF LIABILITY AND INDEMNIFICATION PROVISIONS CONTAINED IN THE ZEBRA TECHNOLOGIES CORPORATION
INLAY GUIDELINES TERMS OF USE. SUCH TERMS OF USE MAY BE FOUND AT WWW.RFID.ZEBRA.COM/
TRANSPONDERSPECS. USERS SHOULD ALWAYS TEST THE RFID TRANSPONDER AND LABELS FOR SUITABILITY
IN THE INTENDED APPLICATION PRIOR TO MAKING ANY MATERIAL OR EQUIPMENT PURCHASES. THE
GUIDELINE IS SUBJECT TO CHANGE WITHOUT NOTICE.
©2015 ZIH Corp. All Rights reserved. www.zebra.com
Model Number: HXX-7XX-XXXXX
Zebra R110Xi HF
Guideline
#
Revision
Date
Protocol

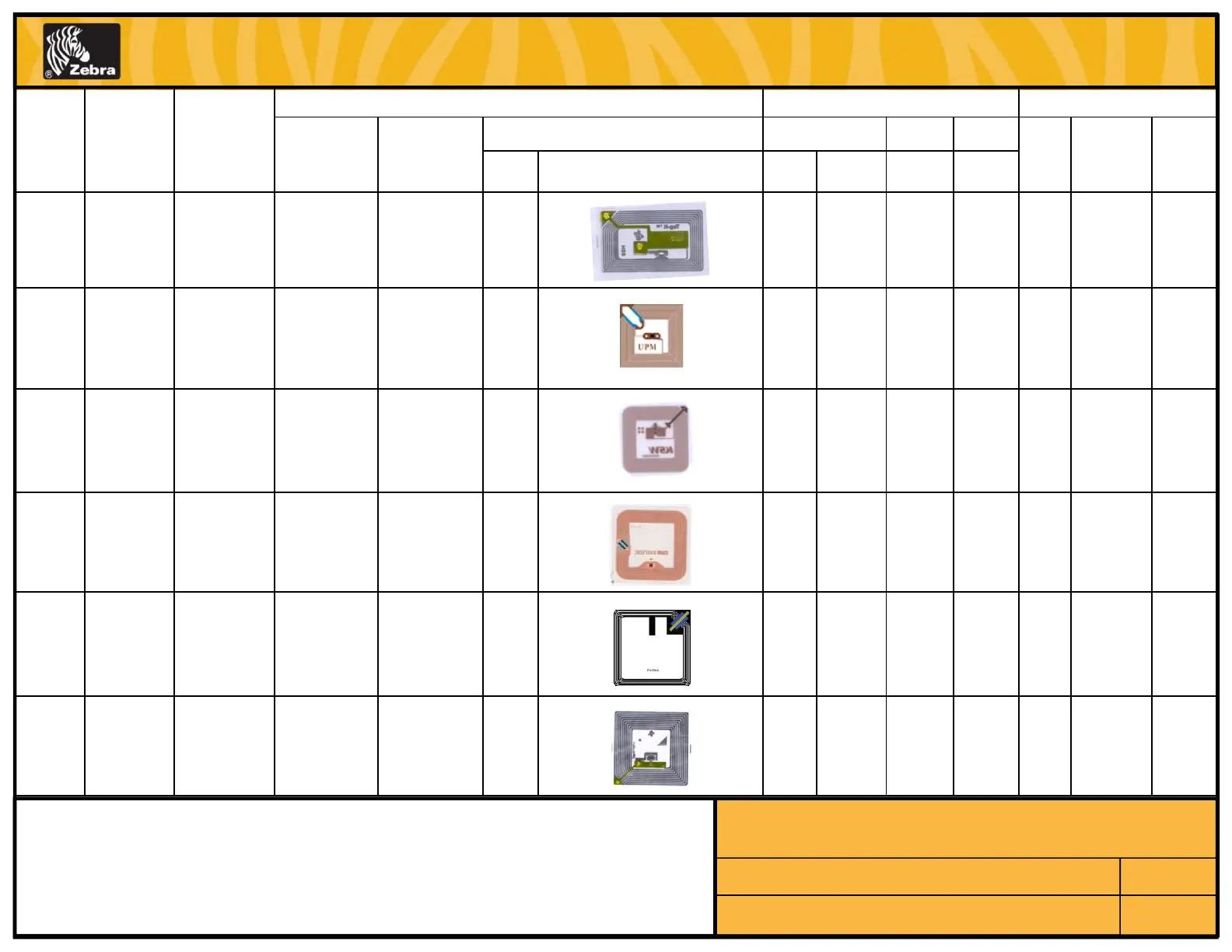

Transponder Transponder Placement (mm) Printer/ Encoder Settings
Manufacturer
Manufacturer
Part Number
Orientation
a x y
Tag
Type
Antenna
Port
RFID
Power
Option
Viewed through facestock/
Machine direction down
Option (± 3mm) (± 3mm) ()
00001 09/18/2009 ISO 15 693
Texas
Instruments
RI-I03-114A-01
Tag-it Standard
Mini Rectangle
A
A 25 31 51 15693 1 LOW
00002 09/17/2009 ISO 15 693 Raflatac
15 x 15
3001060
A
A 13 27 51 15693 1 LOW
00003 09/17/2009 ISO 15 693 KSW
KSW-NN-H030-
Isp-G
A
A 13 26 25 15693 1 LOW
00004 09/18/2009 ISO 15 693 Raflatac
45 x45mm
3000210
A
A 32 10 54 15693 1 LOW
00005 09/18/2009 ISO 15 693 Sirit/RSI RSI-506
A
A 51 32 51 15693 1 MED
00006 09/18/2009 ISO 15 693
Texas
Instruments
RI-I11-114A-01
Tag-It Standard
Square 45x45
A
A 25 6 61 15693 1 LOW
TRANSPONDER PLACEMENT/ POWER GUIDELINES
Zebra R110Xi HF
Printer/ Encoder
Page
2 of 5

Zebra R110Xi HF Specifications

General

Maximum resolution	300 x 300 DPI
Core diameter	76 mm
Ribbon length	300 m
Media thickness	0.076 - 0.305 mm
Maximum media length	991 mm
Maximum roll diameter	203 mm
Supported paper width	114 mm
Media thickness (imperial)	0.003 - 0.012 \
Maximum media length (imperial)	39 \
Supported paper width (imperial)	4.5 \
RS-232 ports	1
Standard interfaces	Ethernet
Connectivity technology	Wired
Weight (imperial)	50 lbs
Dimensions (WxDxH)	263.5 x 495.3 x 393.7 mm
Flash memory	4 MB
Certification	-UL 60950 3/CSA CAN/CSA-C22.2 No. 60950-00 3, -FCC part 15.247, -RSS-210, -ETSI EN 300 220-3 & ETSI EN 301 489-3.
Internal memory	16 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Page description languages	ZPL, ZPL II
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	22700 g
