Zebra R110Xi HF User Manual

RFID TRANSPONDER PLACEMENT /
POWER GUIDELINES
DISCLAIMER
THE INFORMATION CONTAINED IN THIS GUIDELINE IS SUBJECT TO THE WARRANTY DISCLAIMERS, LIMITATIONS
OF LIABILITY AND INDEMNIFICATION PROVISIONS CONTAINED IN THE ZEBRA TECHNOLOGIES CORPORATION
INLAY GUIDELINES TERMS OF USE. SUCH TERMS OF USE MAY BE FOUND AT WWW.RFID.ZEBRA.COM/
TRANSPONDERSPECS. USERS SHOULD ALWAYS TEST THE RFID TRANSPONDER AND LABELS FOR SUITABILITY
IN THE INTENDED APPLICATION PRIOR TO MAKING ANY MATERIAL OR EQUIPMENT PURCHASES. THE
GUIDELINE IS SUBJECT TO CHANGE WITHOUT NOTICE.
©2015 ZIH Corp. All Rights reserved. www.zebra.com
Model Number: HXX-7XX-XXXXX
Zebra R110Xi HF
TRANSPONDER PLACEMENT/ POWER GUIDELINES
Zebra R110Xi HF
Printer/ Encoder
Page
3 of 5
Guideline
#
Revision
Date
Protocol

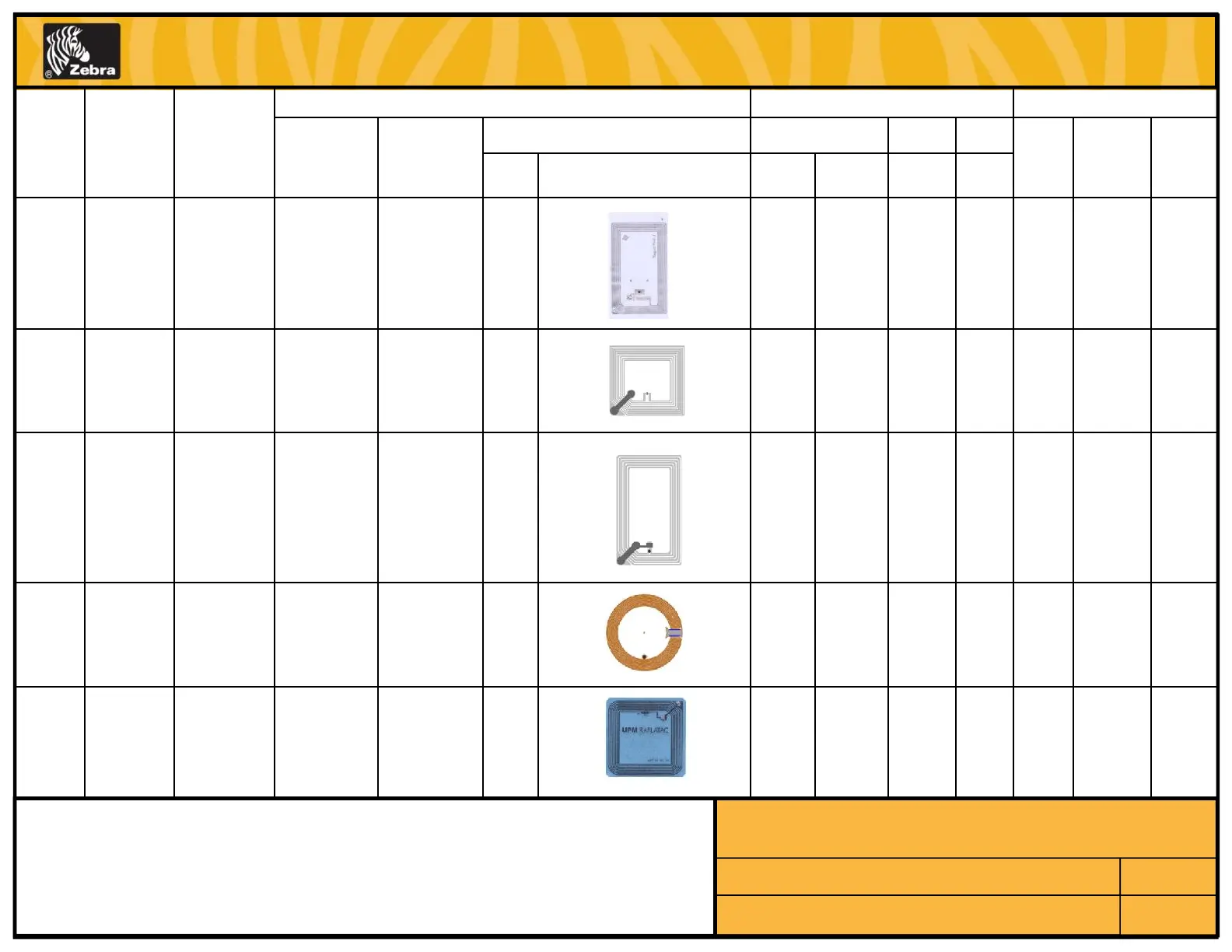

Transponder Transponder Placement (mm) Printer/ Encoder Settings
Manufacturer
Manufacturer
Part Number
Orientation
a x y
Tag
Type
Antenna
Port
RFID
Power
Option
Viewed through facestock/
Machine direction down
Option (± 3mm) (± 3mm) ()
00007 09/18/2009 ISO 15 693
Texas
Instruments
RI-I02-114A-01
Tag-It Standard
45x76
A
A 38 15 80 15693 1 LOW
00008 09/21/2009 ISO 15 693 Avery AD-709
A
A 25 15 38 15693 1 LOW
00009 09/21/2009 ISO 15 693 Avery AD-714
A
A 25 8 45 15693 1 LOW
00010 09/21/2009 ISO 15 693 Avery AD-720
A
A 25 12 61 15693 1 LOW
00011 11/20/2009
ISO 15 693
Raflatac
50 x50mm
3001261
A
A 29 5 56 15693 1 LOW

Zebra R110Xi HF Specifications

General

Maximum resolution	300 x 300 DPI
Core diameter	76 mm
Ribbon length	300 m
Media thickness	0.076 - 0.305 mm
Maximum media length	991 mm
Maximum roll diameter	203 mm
Supported paper width	114 mm
Media thickness (imperial)	0.003 - 0.012 \
Maximum media length (imperial)	39 \
Supported paper width (imperial)	4.5 \
RS-232 ports	1
Standard interfaces	Ethernet
Connectivity technology	Wired
Weight (imperial)	50 lbs
Dimensions (WxDxH)	263.5 x 495.3 x 393.7 mm
Flash memory	4 MB
Certification	-UL 60950 3/CSA CAN/CSA-C22.2 No. 60950-00 3, -FCC part 15.247, -RSS-210, -ETSI EN 300 220-3 & ETSI EN 301 489-3.
Internal memory	16 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Page description languages	ZPL, ZPL II
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	22700 g
