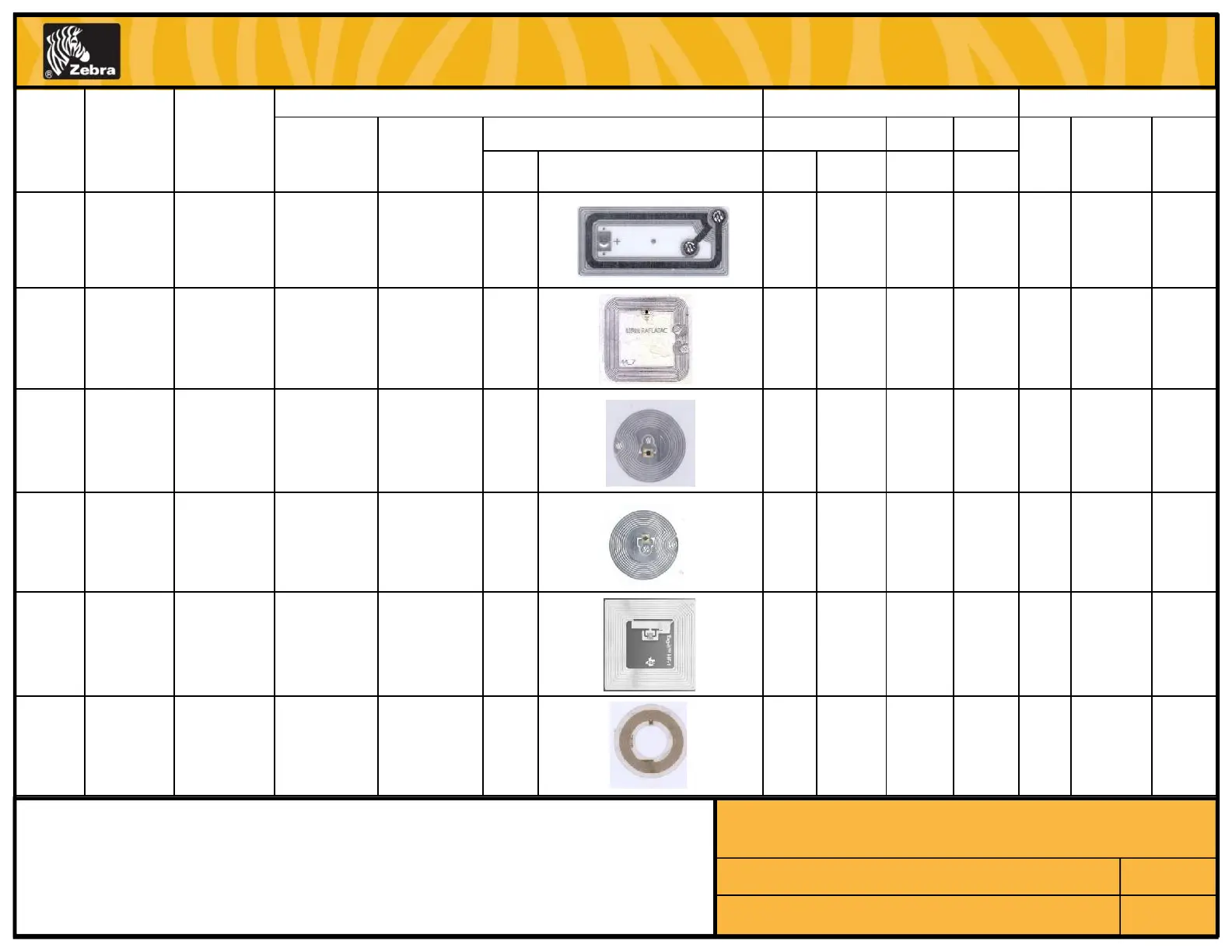

RFID TRANSPONDER PLACEMENT /
POWER GUIDELINES
DISCLAIMER
THE INFORMATION CONTAINED IN THIS GUIDELINE IS SUBJECT TO THE WARRANTY DISCLAIMERS, LIMITATIONS
OF LIABILITY AND INDEMNIFICATION PROVISIONS CONTAINED IN THE ZEBRA TECHNOLOGIES CORPORATION
INLAY GUIDELINES TERMS OF USE. SUCH TERMS OF USE MAY BE FOUND AT WWW.RFID.ZEBRA.COM/
TRANSPONDERSPECS. USERS SHOULD ALWAYS TEST THE RFID TRANSPONDER AND LABELS FOR SUITABILITY
IN THE INTENDED APPLICATION PRIOR TO MAKING ANY MATERIAL OR EQUIPMENT PURCHASES. THE
GUIDELINE IS SUBJECT TO CHANGE WITHOUT NOTICE.
©2015 ZIH Corp. All Rights reserved. www.zebra.com
Model Number: HXX-7XX-XXXXX
Zebra R110Xi HF
Guideline
#
Revision
Date
Protocol
Transponder Transponder Placement (mm) Printer/ Encoder Settings
Manufacturer
Manufacturer
Part Number
Orientation
a x y
Tag
Type
Antenna
Port
RFID
Power
Option
Viewed through facestock/
Machine direction down
Option 3mm) 3mm) ()
0016 4/7/2010 ISO 15 693 Avery AD-730
AD-730x
A
A 25 22 54 15693 1 Low
0017 5/3/2010 ISO 15 693 Raflatac
3001457
43 x 43mm
A
A 25 15 48 15693 1 Low
0018 8/23/2010 ISO 15 693 TI RI-I16-112A-03
A
A 25 37 50 15693 1 Low
0018 2/03/2011 ISO 15 693 TI RI-I16-114A-S1
A
A 25 17 52 15693 1 Low
0019 7/19/2011 ISO 15 693 TI RI-I11-114B-01
A
A 25 4 63 15693 1 Low
0020 1/13/2012 ISO 15 693 Raflatac 3001423
BullsEye
A
A 25 12 54 15693 1 Low
TRANSPONDER PLACEMENT/ POWER GUIDELINES
Zebra R110Xi HF
Printer/ Encoder
Page
5 of 5
