pg. 6 P1010425 Rev. G
A green LED will light on the power supply to indicate the power is on. An amber LED will light to
indicate an error condition is present. If the error condition occurs, unplug the printer from the power
supply and turn off the vehicle power. Reconnect the printer to the power supply, and if the amber LED
remains on, contact technical support.
• Turn on the printer. Load the printer with media and press the feed button to ensure that the
printer is properly connected and the media has been properly installed. The printer will be able to
print as long as the vehicle power stays on.
The power supply can be located on any convenient surface within 6 ft. (1.83m) of the printer. Locate
the power supply where it will receive adequate ventilation. Do not locate it near the operators feet or
where it could hinder operation of the system or vehicle controls. Ensure that the cable routing does not
invite damage to either the charger or the printer.

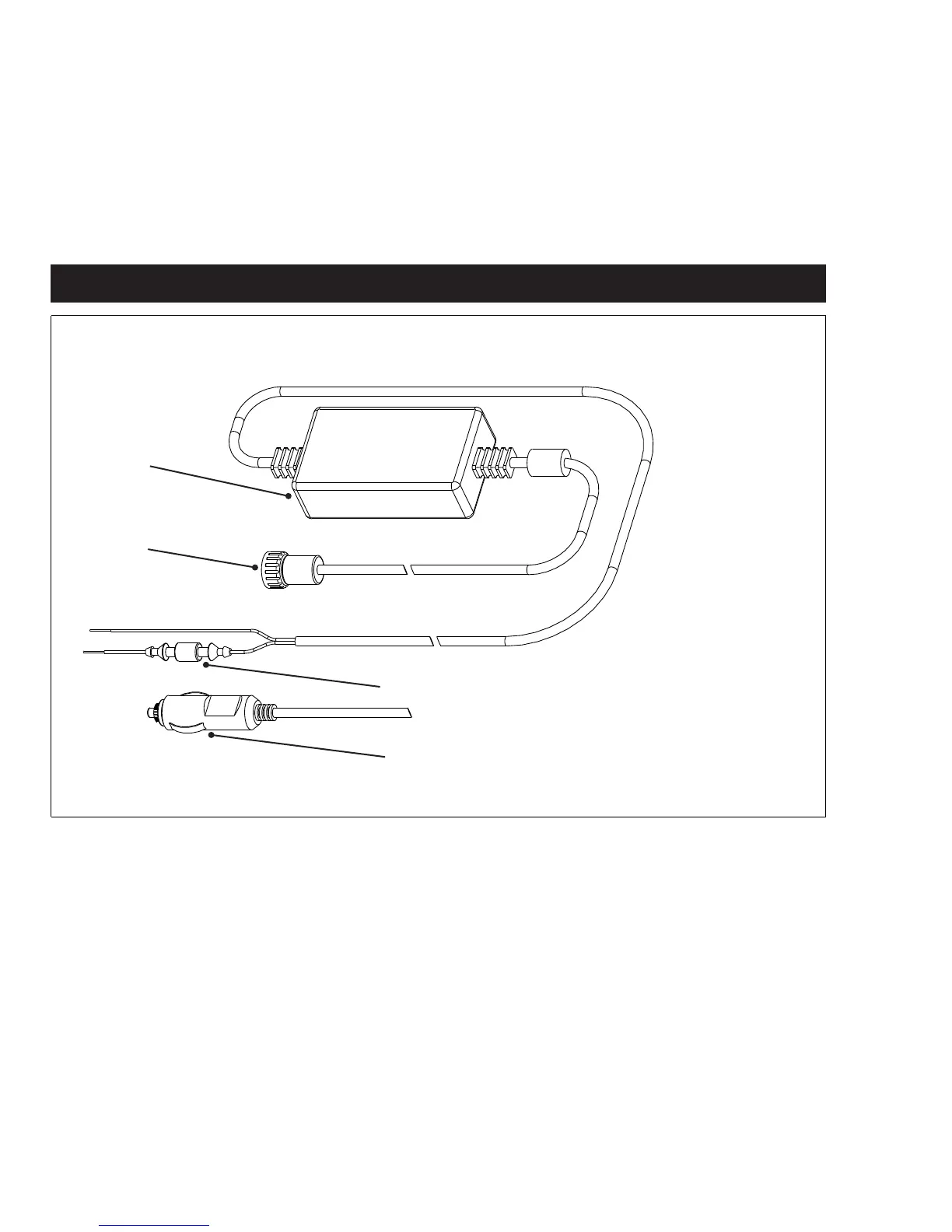

Figure 2: Power suPPly VehiCle ConneCTors
Cigarette Lighter Connector (6 ft. cord)
Bare Wire Connector w/ Fuse (10 ft. cord)
DC Cable (4 ft. cord)
Power Supply
(4”x2.25”x1.4”)
• If installing the cigarette lighter version, fully seat the cigarette lighter into the vehicle cigarette
receptacle. IMPORTANT: Ensure that the cigarette lighter receptacle is rated for at least 15ADC.
DO NOT use an accessory receptacle intended for low current accessories.
• If installing the permanent bare-wire installation version, follow good wiring practices and
connect to a fused connection point on the vehicle electrical fuse block.
