RW Series Quick Start Guide

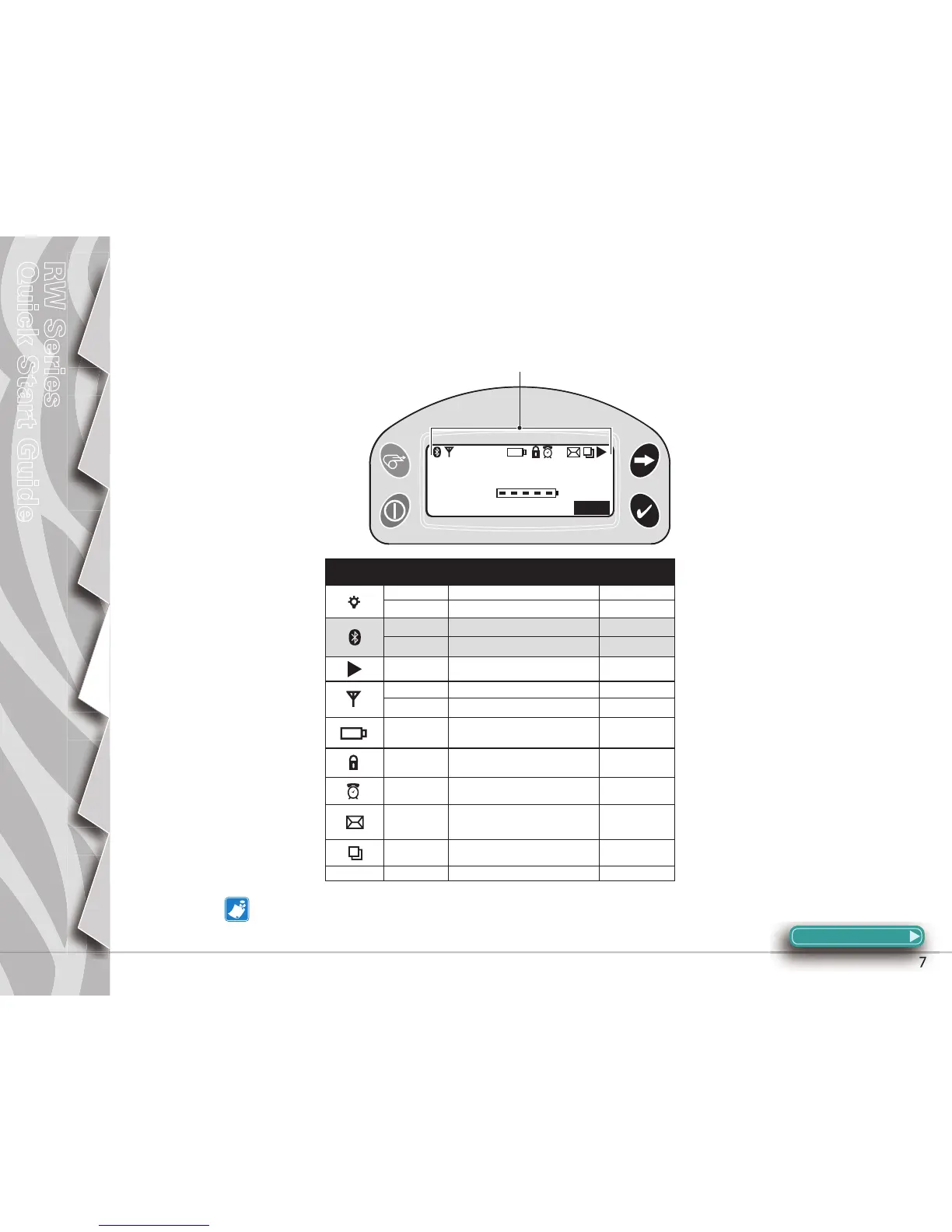

LCD Control Panel
The top of the display shows icons indicating various printer functions. Check the icon’s status and refer to the referenced Troubleshoot-
ing topic on the following pages.
Troubleshooting
Zebra RW 420
Signal:0%
Battery (ok)
Latch: ok Rdr MENU
Zebra RW 420
Signal:0%
Battery (ok)
Latch: ok Rdr MENU
Icon Status Indication Ref. to Topic #
on next page
On Bluetooth Link established n/a
O No Bluetooth Link 5
On Bluetooth link established n/a
O No Bluetooth link 5
Flashing Transmitting/Receiving data n/a
On 802.11x RF Link established n/a
O No 802.11x RF Link 5
Flashing Low Battery 3, 5, 6,
Flashing Head latch not closed 8, 10, 11
Flashing Indicates Printing activity n/a
Steady Data processing in process 7
Flashing Out of Media 9,11
Blank Screen n/a No application
RW series printers may be built with one of two LCD types. LCDs using the Bluetooth icon
(highlighted by a gray background in the table above) will gradually replace LCDs with the
“light bulb” icon indicating Bluetooth activity. Printers with either type of display will function
identically.
7
Section Continues
PRINTER STATUS ICONS
