NOTE: Use a cotton swab moistened with Zebra-recommended Printhead Cleaning
Solution (part # 1426) to clean the Printhead Element Surface before printing.
6. Reload media and ribbon.
7. Perform the Printhead Voltage Adjustment procedure in this section.
8. After setting printhead voltage, run PAUSE Test labels and adjust the
printhead position as needed to achieve optimum print quality.
9. Adjust Head Parallelism and Print Position (per Print Quality Adjustments
procedure) if required.
10. Print a series of test labels to insure continued quality printing.
11. If the Cutter Option is used, you MUST perform the Cutter Voltage
Adjustment Procedure.

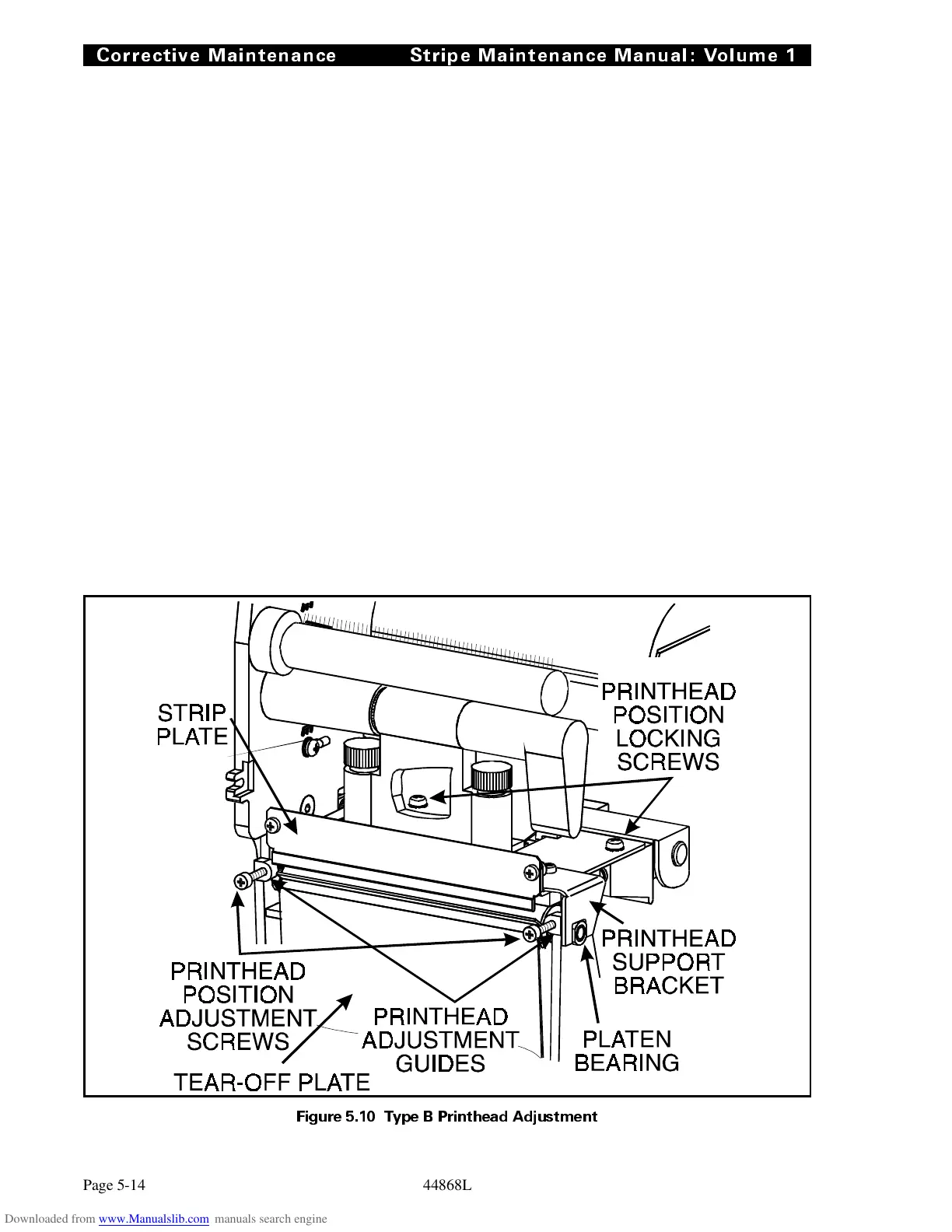

Figure 5.10 Type B Pri nthead Adju stment
Corrective Maintenance Stripe Maintenance Manual: Volume 1
Page 5-14 44868L
