Zebra TC72 Quick Start Guide

TC72/TC77 Quick Start Guide
28
Imager Scanning
To read a bar code, a scan-enabled application is required. The device contains the DataWedge application
that allows the user to enable the imager, decode the bar code data and display the bar code content.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the exit window on the top of the device at a bar code.

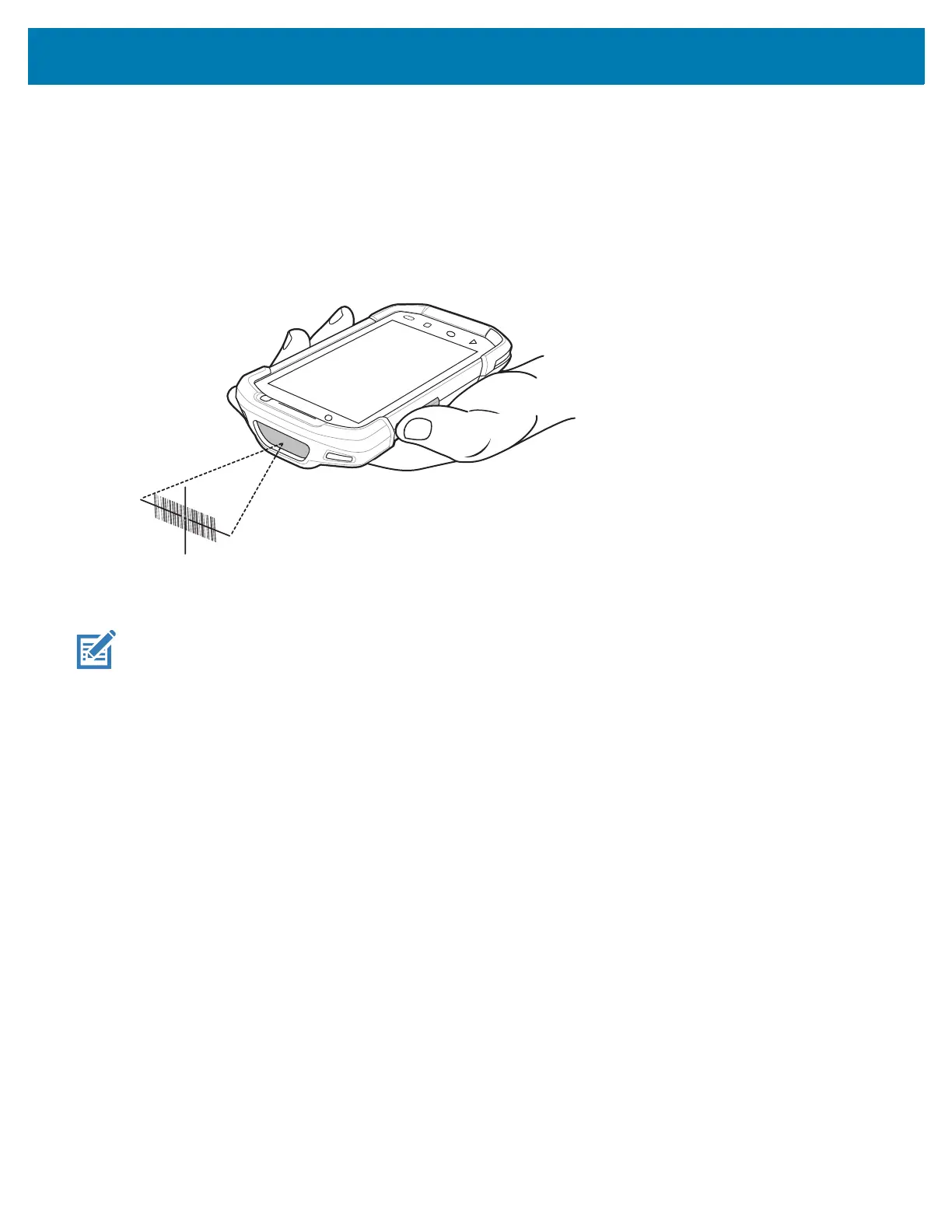

Figure 25 Imager Scanning
3. Press and hold the scan button.
The red laser aiming pattern turns on to assist in aiming.
NOTE: When the device is in Picklist mode, the imager does not decode the bar code until the crosshair or aiming dot touch-
es the bar code.

Zebra TC72 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Internal memory	4 GB
Internal memory type	-
Total storage capacity	32 GB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Scanner type	1D/2D
Product color	Black, Silver
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
