Zebra TC72 Quick Start Guide

TC72/TC77 Quick Start Guide
19

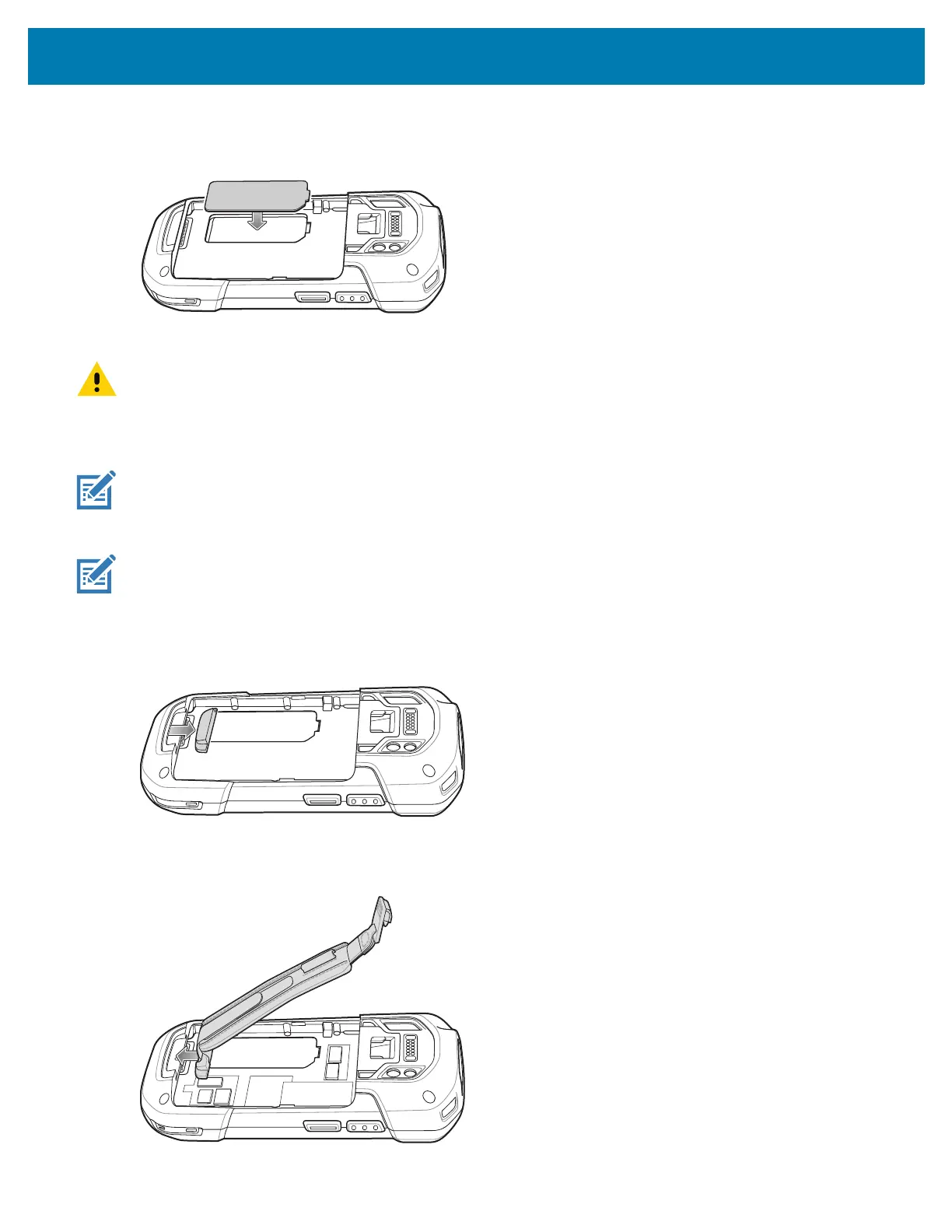

7. Replace the access door.
Figure 17 Replace Access Door
8. Press the access door down and ensure that it is properly seated.
CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.
Installing the Hand Strap and Battery
NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings, stickers, etc.,
may compromise the intended performance of the device or accessories. Performance levels such as sealing (Ingress Pro-
tection (IP)), impact performance (drop and tumble), functionality, temperature resistance, etc. could be effected. DO NOT
put any labels, asset tags, engravings, stickers, etc. in the battery well.
NOTE: Installation of the hand strap is optional. Skip this section if not installing the hand strap.
1. Remove the hand strap filler from the hand strap slot. Store the hand strap filler in a safe place for future
replacement.
Figure 18 Remove Filler
2. Insert the hand strap plate into the hand strap slot.
Figure 19 Insert Hand Strap

Zebra TC72 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Internal memory	4 GB
Internal memory type	-
Total storage capacity	32 GB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Scanner type	1D/2D
Product color	Black, Silver
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
