Universal Serial Bus (USB) Interface
88
980643-001 Rev. A TLP 2824 Plus™ User Guide 3/31/09
Universal Serial Bus (USB) Interface

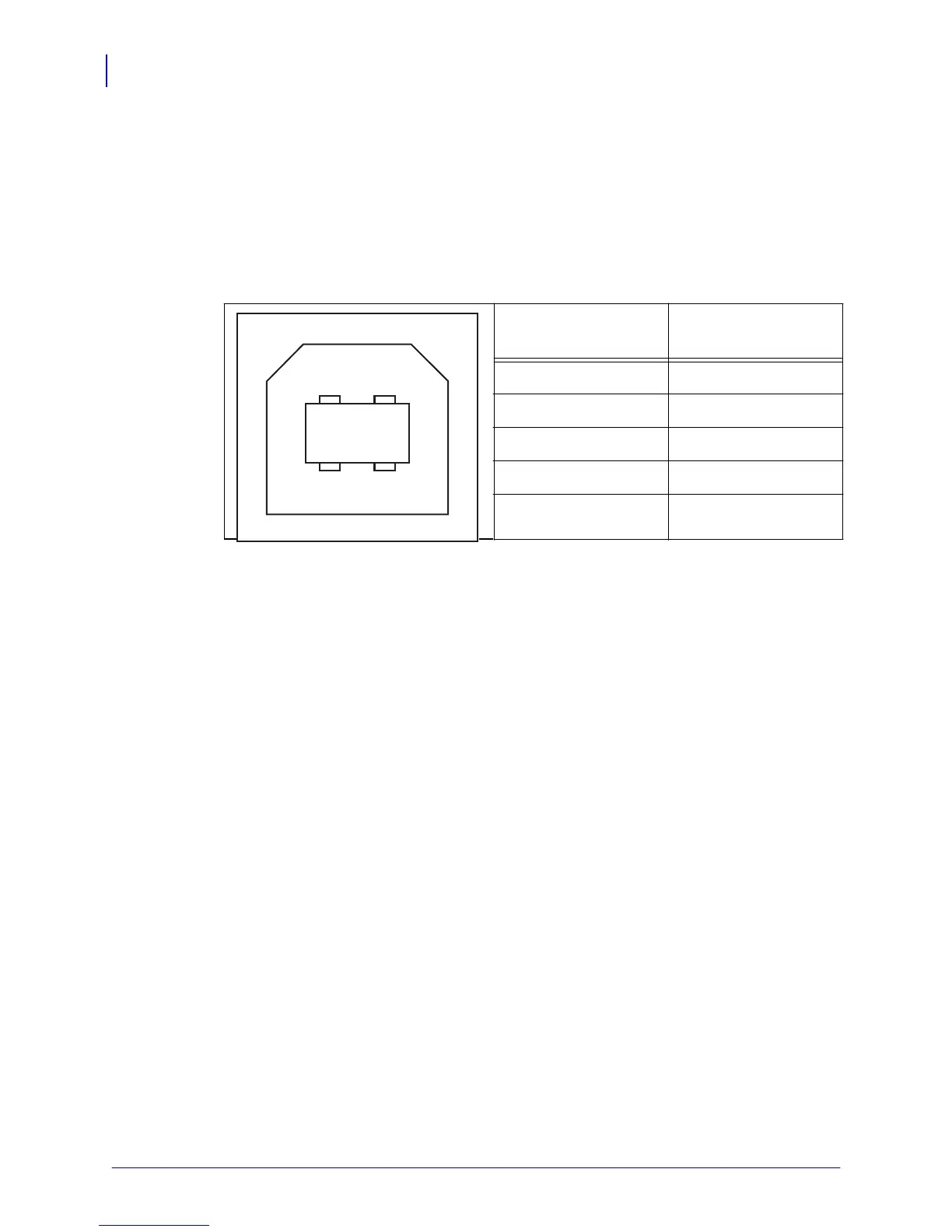

The figure below displays the cable wiring required to use the printer’s USB interface.
The printer requires cable or cable packaging that bears the “Certified USB™” mark to
guarantee USB 2.0 compliance.
For printer supported operating systems and drivers, see the software and documentation
CD or visit the Zebra printer web site at:
http://www.zebra.com
For information on the USB interface, go to the USB web site at:
http://www.usb.org
Pin Signal
1Vbus - N/C
2D-
3D+
4Ground
Shell Shield / Drain Wire
1
2
3
4
