Serial Port Interface
92
980643-001 Rev. A TLP 2824 Plus™ User Guide 3/31/09

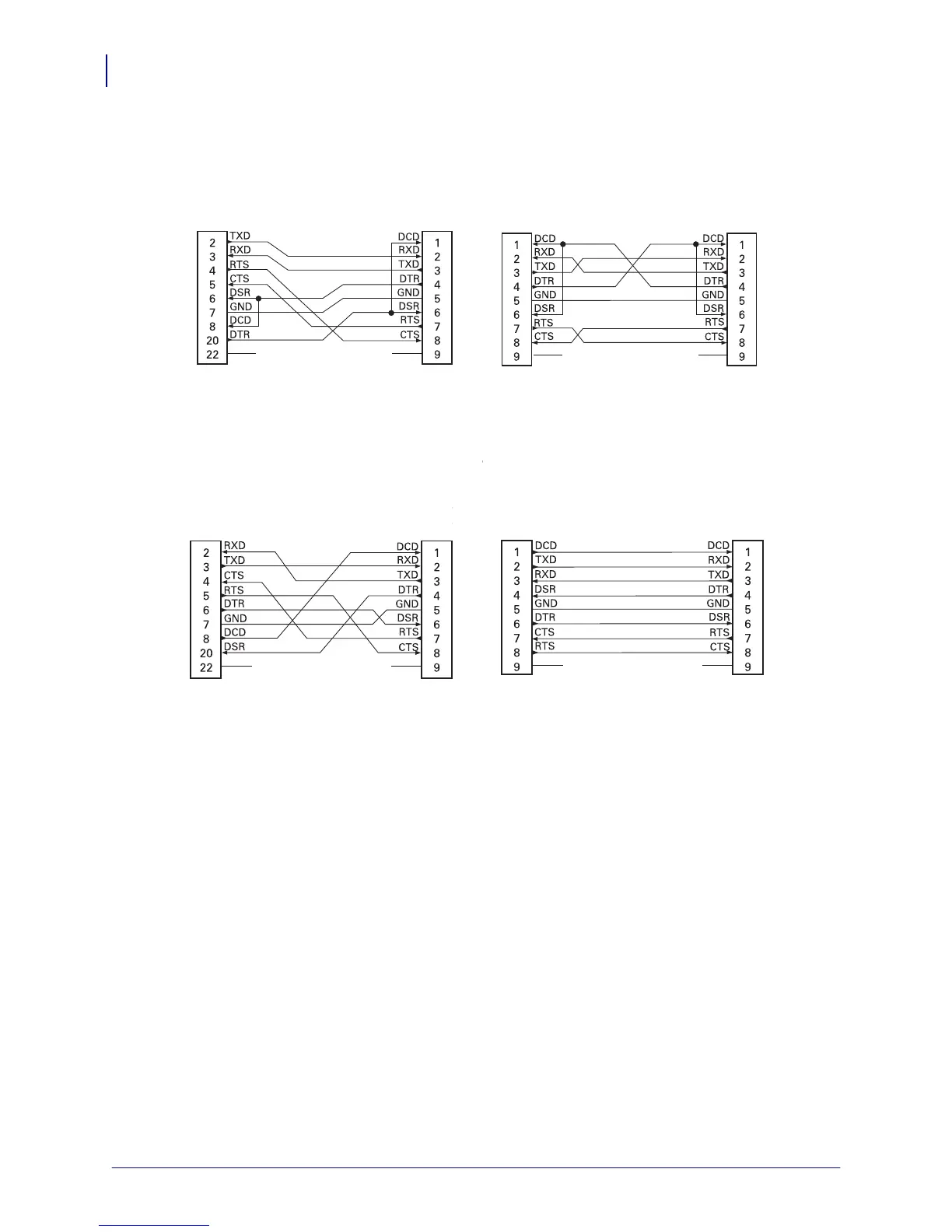

Connecting the Printer to a DTE Device
Connecting the Printer to a DCE Device
DB-25S
Connector
to DTE Device (PC)
DB-9P
Connector
to Printer
DB-9P
Connector
to Printer
DB-9S
Connector
to DTE Device (PC)
DB-9P
Connector
to Printer
DB-9P
Connector
to Printer
DB-25S
Connector
to DCE Device
DB-9S
Connector
to DCE Device
