Zebra TLP 2824 Plus - Page 29

17
Getting Started
Loading Roll Media
3/31/09 TLP 2824 Plus™ User Guide 980643-001 Rev. A

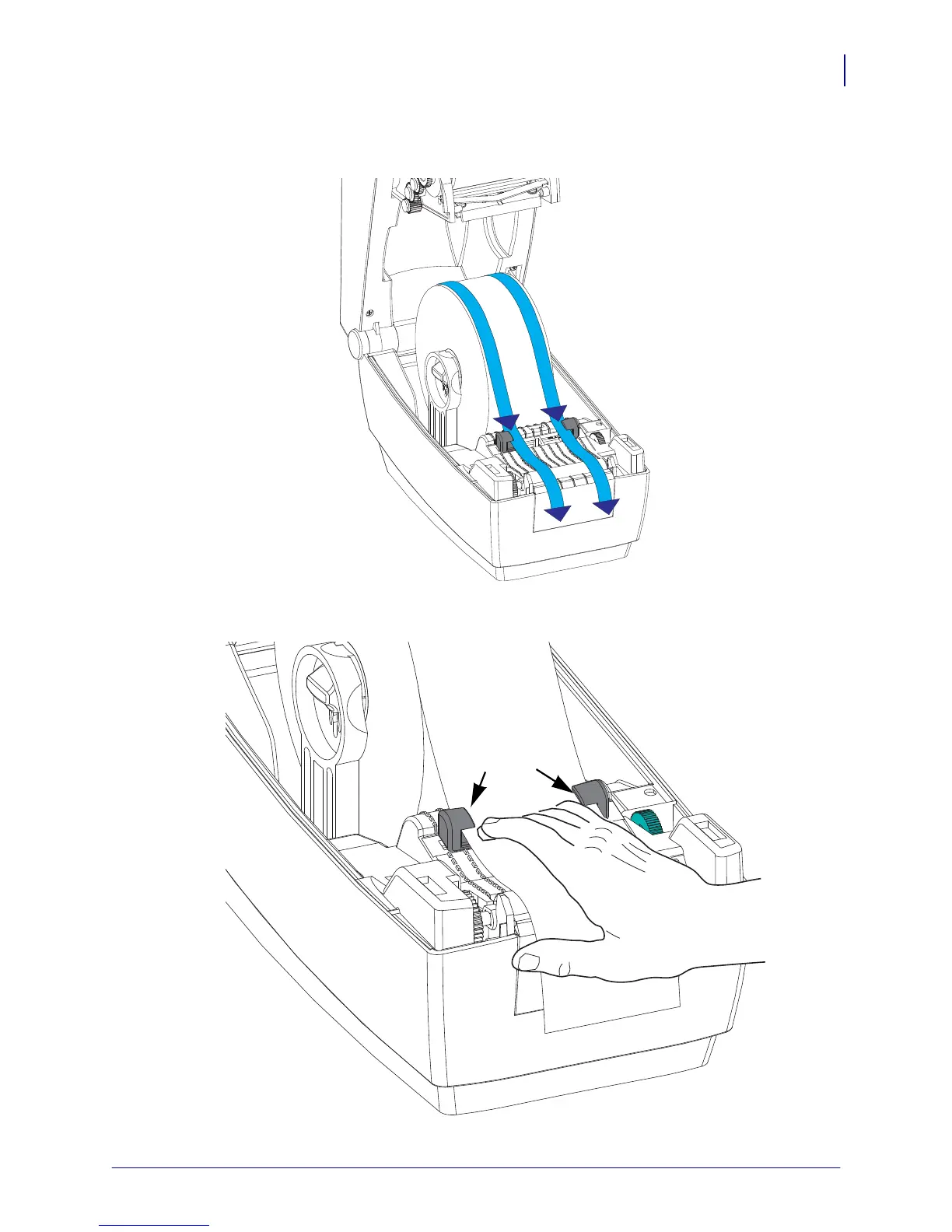

5. Pull the media so that it extends out of the front of the printer. Verify the roll turns freely.
The roll must not sit in the bottom of the media compartment. Verify that media’s printing
surface is facing up.
6. Push the media under both of the media guides.
Under Media
Guides
