Zebra ZP 505 User Manual

Quick Installation Guide 4
ZP 505 Thermal Printer

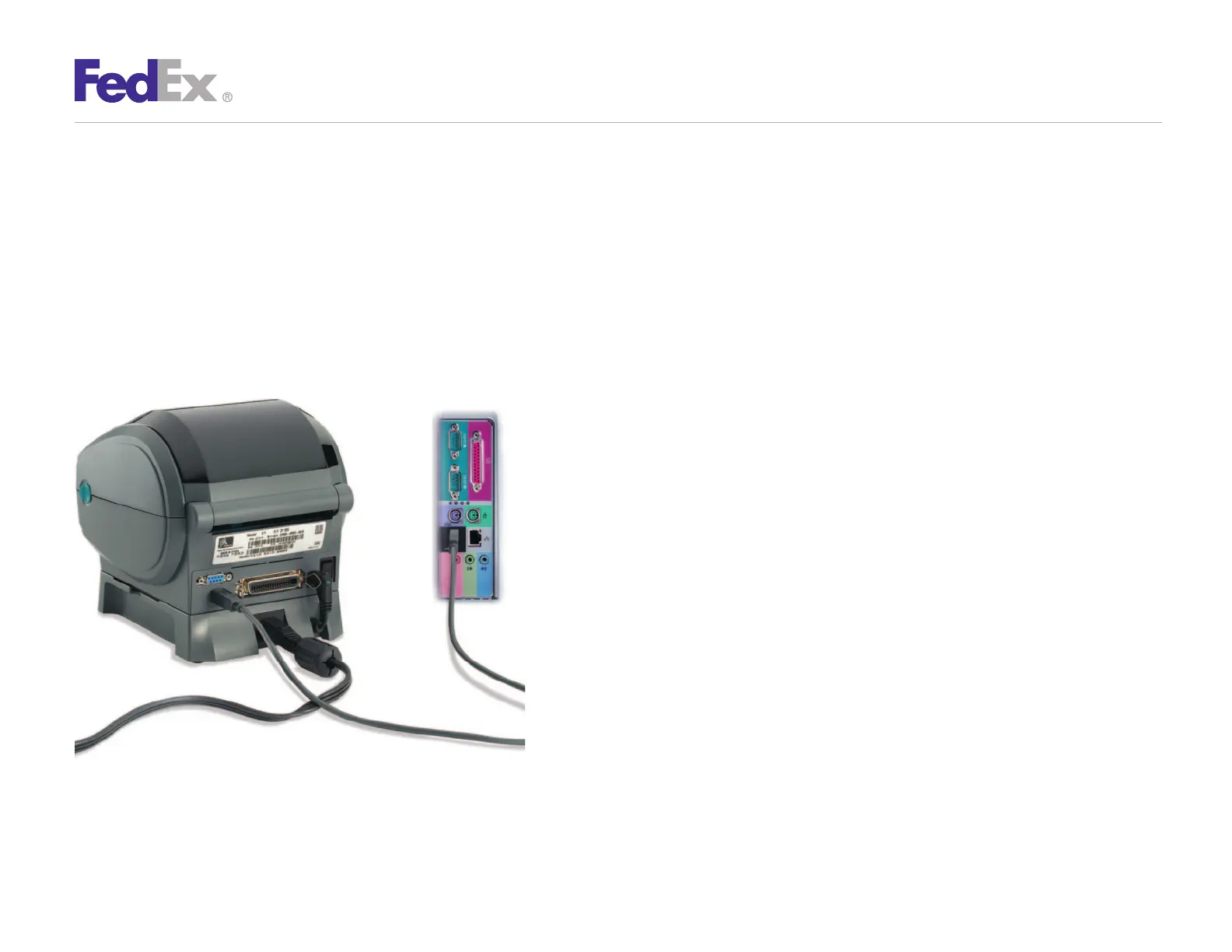

Turn off your computer and the printer before connecting the
supplied USB cable to a dedicated USB port on the printer.
Be sure to thread the USB cable through the strain relief clip
before connecting it to the printer. Then connect the USB cable
from the printer to a dedicated USB port on the computer.
After connecting the printer, turn your computer on,
but do not turn the printer on yet.
Step 3: Connect the Printer
to Your Computer
Step 4: Turn Your Computer On

Zebra ZP 505 Specifications

General

Print Method	Direct Thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	5 inches per second
Media Sensors	Reflective and Transmissive
Connectivity	USB
Memory	8 MB Flash, 8 MB SDRAM
Media Width	1.00 to 4.25 inches
Media Length	39 inches (991 mm)
Programming Language	ZPL II
Supported Media Types	Continuous, Black Mark
Power Requirements	100-240V AC, 50-60Hz
