Zebra ZXP 7 series User Manual

24 Zebra ZXP Series 7 Card Printer User’s Manual P1036101-001
2: Installation and Setup
Loading the Laminate
Step 7. Pull out an inch or two of laminate past the lip of the cassette.
Step 8. Close the cassette by firmly pressing the “clamshell” together. You will hear a click
and feel a detent when the halves of the cassette seat together.

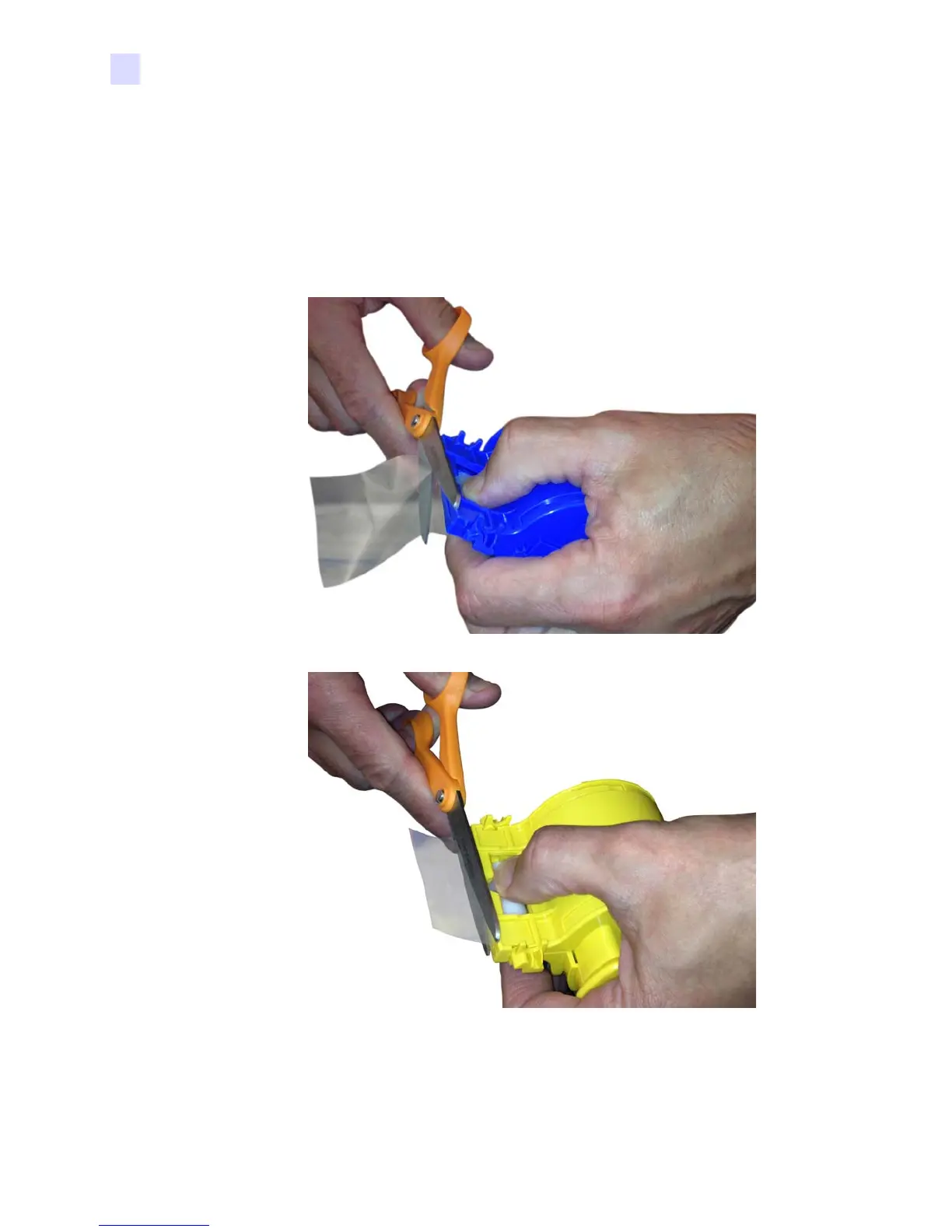

Step 9. Cut the laminate square (as close to perpendicular as possible) with scissors. Hold the
scissors in one hand. Hold the cassette with the other hand. Press the laminate firmly
against the white roller thereby keeping the laminate from moving while cutting.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
