Zebra ZXP Series 7 User Manual

10 Zebra ZXP Series 7 Card Printer User’s Manual P1036101-002
2: Installation and Setup

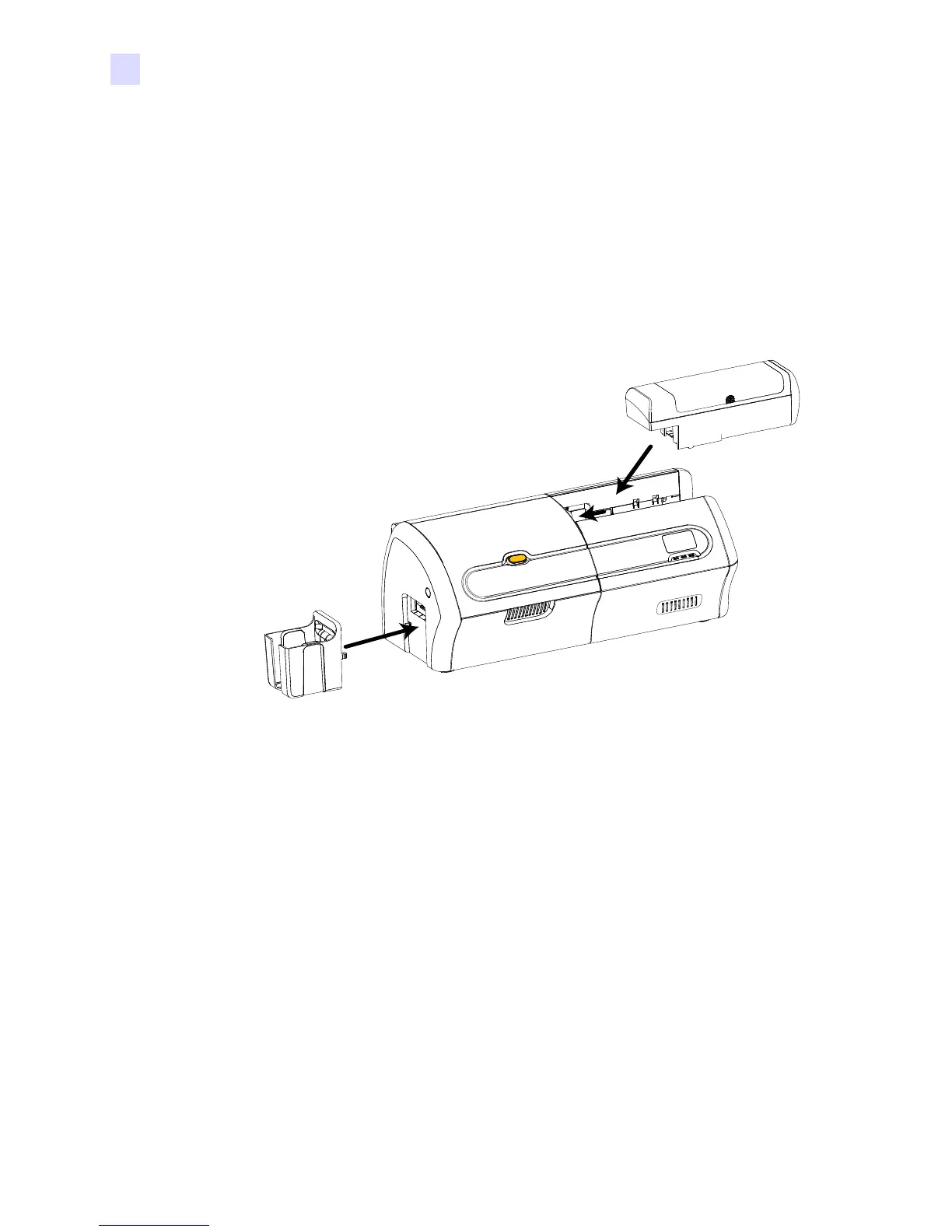

Installing the Feeder Cartridge and Output Hopper
Installing the Feeder Cartridge and Output Hopper
Feeder Cartridge
The Feeder Cartridge is positioned on the right side of the Printer and holds the cards to
be printed. Note that once in place, you can add cards as needed to the Feeder Cartridge
without removing it from the Printer.
Step 1. Install the Feeder Cartridge by sliding it down and to the left into the receptacle.
You will need to apply enough pressure for it to “snap” and lock securely into place.
Step 2. Ensure that the Feeder Cartridge locks securely in place.
Output Hopper
The Output Hopper is positioned on the left side of the Printer and receives the printed cards.
Step 1. Install the Output Hopper by inserting the two tabs on the right side of the hopper
into the two slots on the left side of the Printer.
Step 2. Ensure that the Output Hopper locks securely in place.
1
2

Zebra ZXP Series 7 Specifications

General

Display	LCD
Lamination	Yes
Certification	FCC A, ENERGY STAR
Product color	Black
Total input capacity	200 sheets
Display number of characters	21
Card types	PVC, PVC Composite
Print technology	Dye-sublimation/Thermal transfer
Maximum resolution	300 DPI
Print speed (color)	300 card/h
Print speed (monochrome)	1375 card/h
Printing media thickness	250 - 1270 µm
Duplex print speed (color)	225 card/h
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Dimensions (WxDxH)	964 x 277 x 306 mm
