Zebra ZXP Series 7 - Page 27

2: Installation and Setup
Loading the Laminate
P1036101-002 Zebra ZXP Series 7 Card Printer User’s Manual 19
Removing the Laminate Cassette(s)

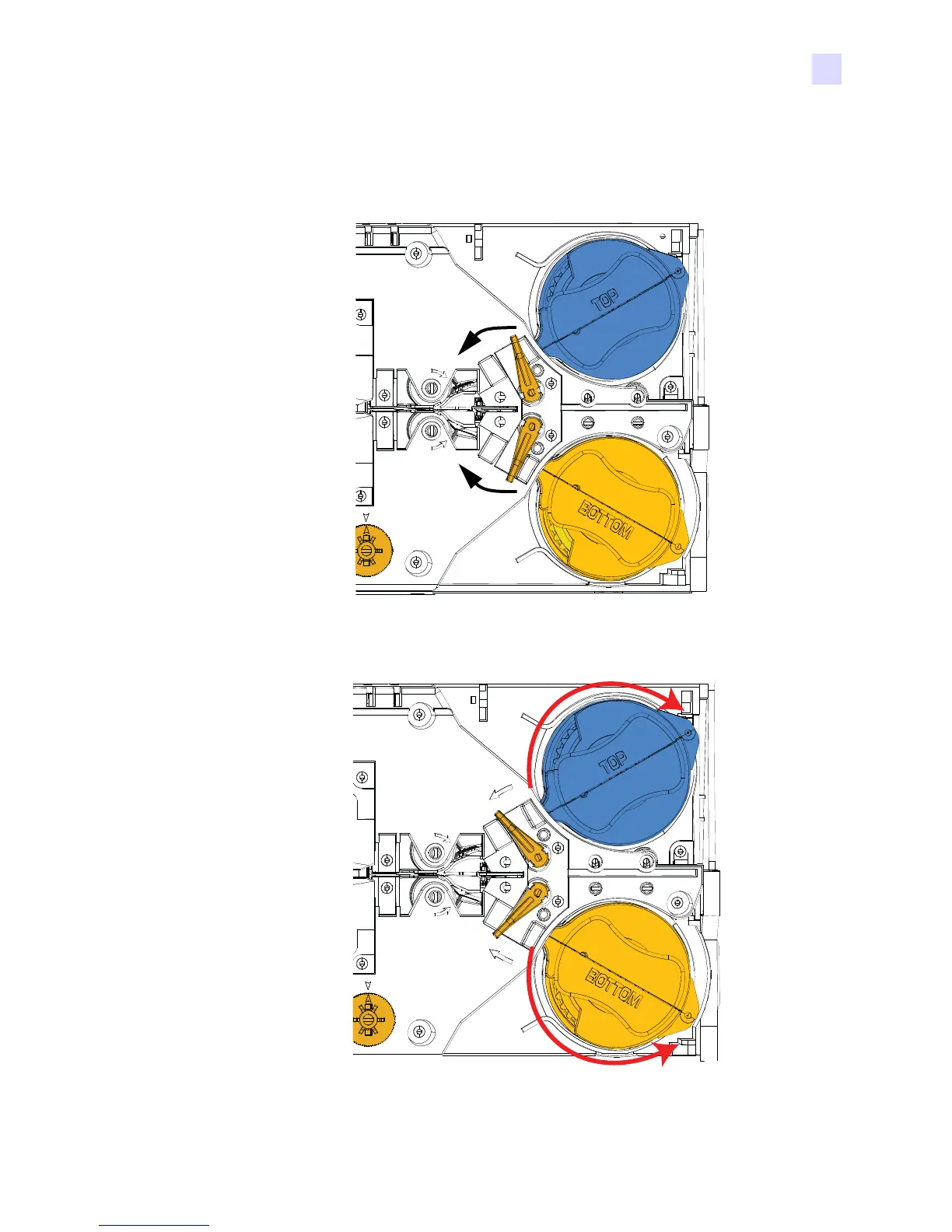

Step 1. Rotate the locking lever in the direction indicated in the figure below.
Step 2. Rotate the cassette to the mechanical stop in the direction indicated below.
