20 Zebra ZXP Series 7 Card Printer User’s Manual P1036101-002
2: Installation and Setup
Loading the Laminate

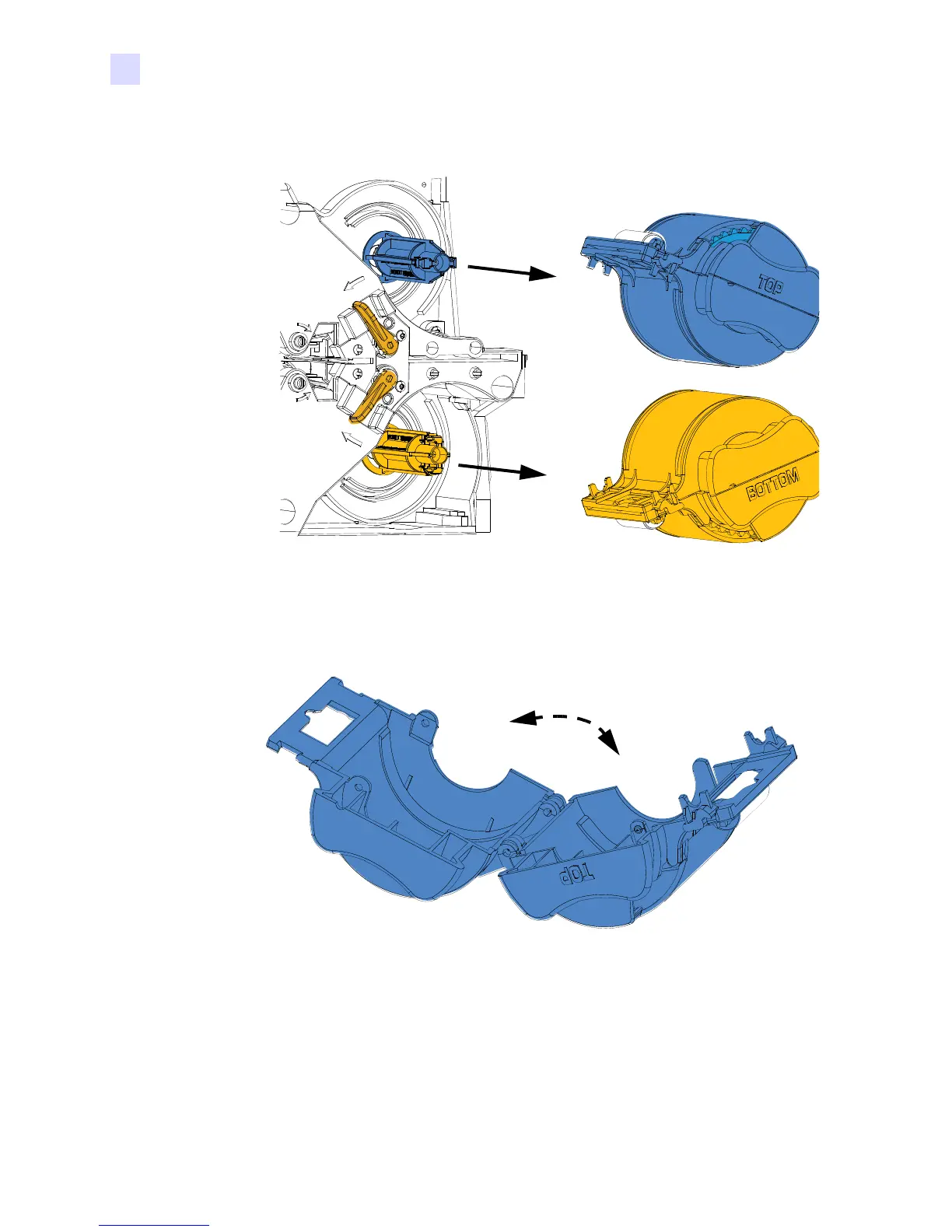

Step 3. Remove the cassette(s) by pulling each cassette straight out from its spindle.
Step 4. Open the cassette(s), like a clam shell, by separating its two halves. Grasp the two
halves firmly with your fingers, then pull it apart. Do NOT use tools. (Upper
Laminate Cassette shown.)
Step 5. If there is an empty laminate core in the cassette, remove it.
