Zebra ZXP Series 7 User Manual

2: Installation and Setup
Loading the Laminate
P1036101-002 Zebra ZXP Series 7 Card Printer User’s Manual 21
Loading the Laminate Cassette(s)
Step 1. Remove a new roll of laminate from its packaging. There are two different laminate
rolls, one for the Upper Cassette (Blue) and one for the Lower Cassette (Gold).

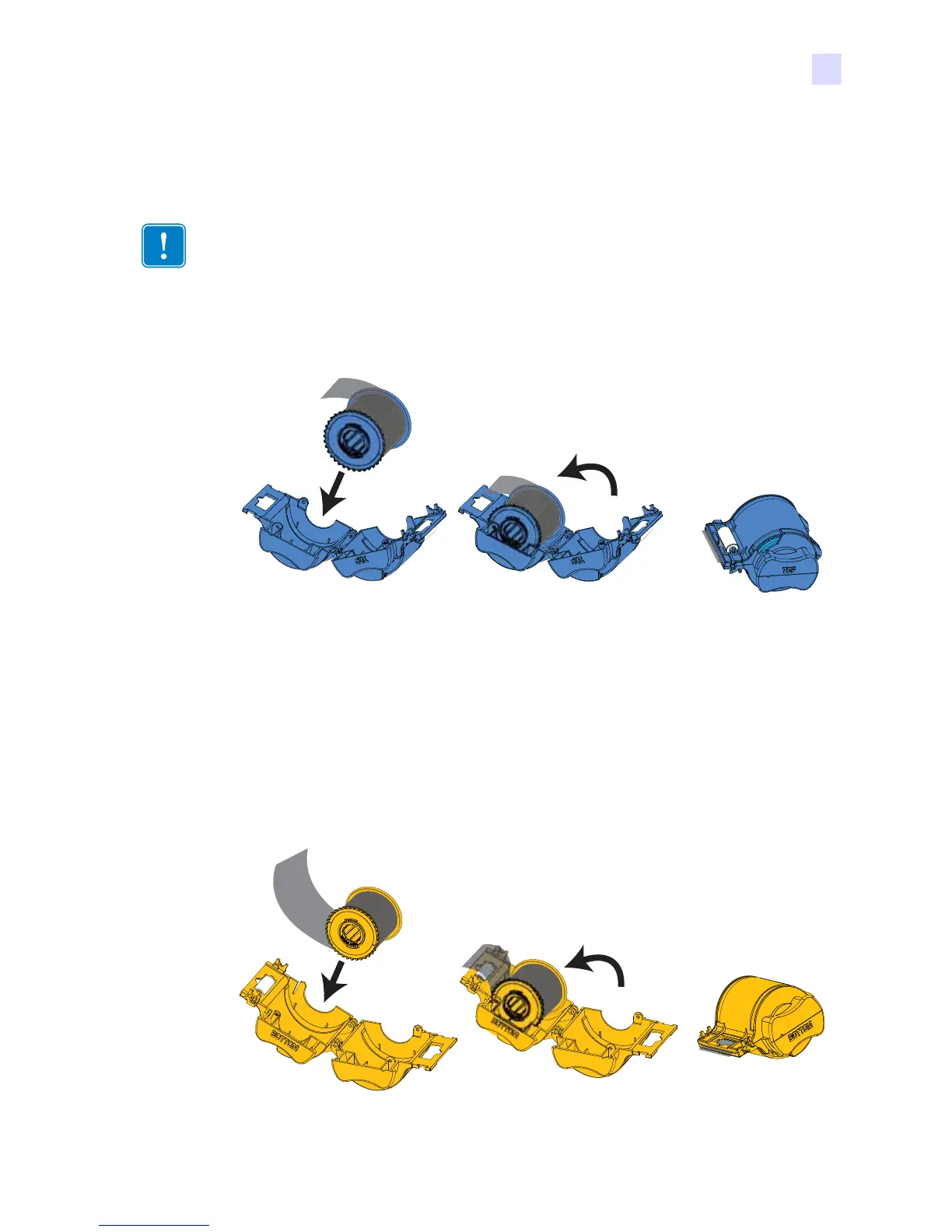

Step 2. Place the roll of laminate in the Upper Laminate Cassette (present on both the
single-sided laminator and dual-sided laminator). Note the orientation of the laminate
spool with respect to the laminate cassette as shown in the figure below.
Step 3. Pull out an inch or two of laminate past the lip of the cassette.
Step 4. Close the cassette by firmly pressing the “clamshell” together. You will hear a click
and feel a detent when the halves of the cassette seat together.
Step 5. Remove a second new roll of laminate from its packaging (for dual-sided
laminator only).
Step 6. Place the roll of laminate in the Lower Laminate Cassette (present on the dual-
sided laminator only). Note the orientation of the laminate spool with respect to the
laminate cassette as shown in the figure below.
Important • The geared flange on the laminate spool is removable, but do not remove it. If it
does come off, snap it back onto the end of the spool.

Zebra ZXP Series 7 Specifications

General

Display	LCD
Lamination	Yes
Certification	FCC A, ENERGY STAR
Product color	Black
Total input capacity	200 sheets
Display number of characters	21
Card types	PVC, PVC Composite
Print technology	Dye-sublimation/Thermal transfer
Maximum resolution	300 DPI
Print speed (color)	300 card/h
Print speed (monochrome)	1375 card/h
Printing media thickness	250 - 1270 µm
Duplex print speed (color)	225 card/h
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Dimensions (WxDxH)	964 x 277 x 306 mm
