Zebra ZXP Series 8 User Manual

2: Installation and Setup
Unpacking the Printer
P1045430-002 Zebra ZXP Series 8 Card Printer User’s Manual 9

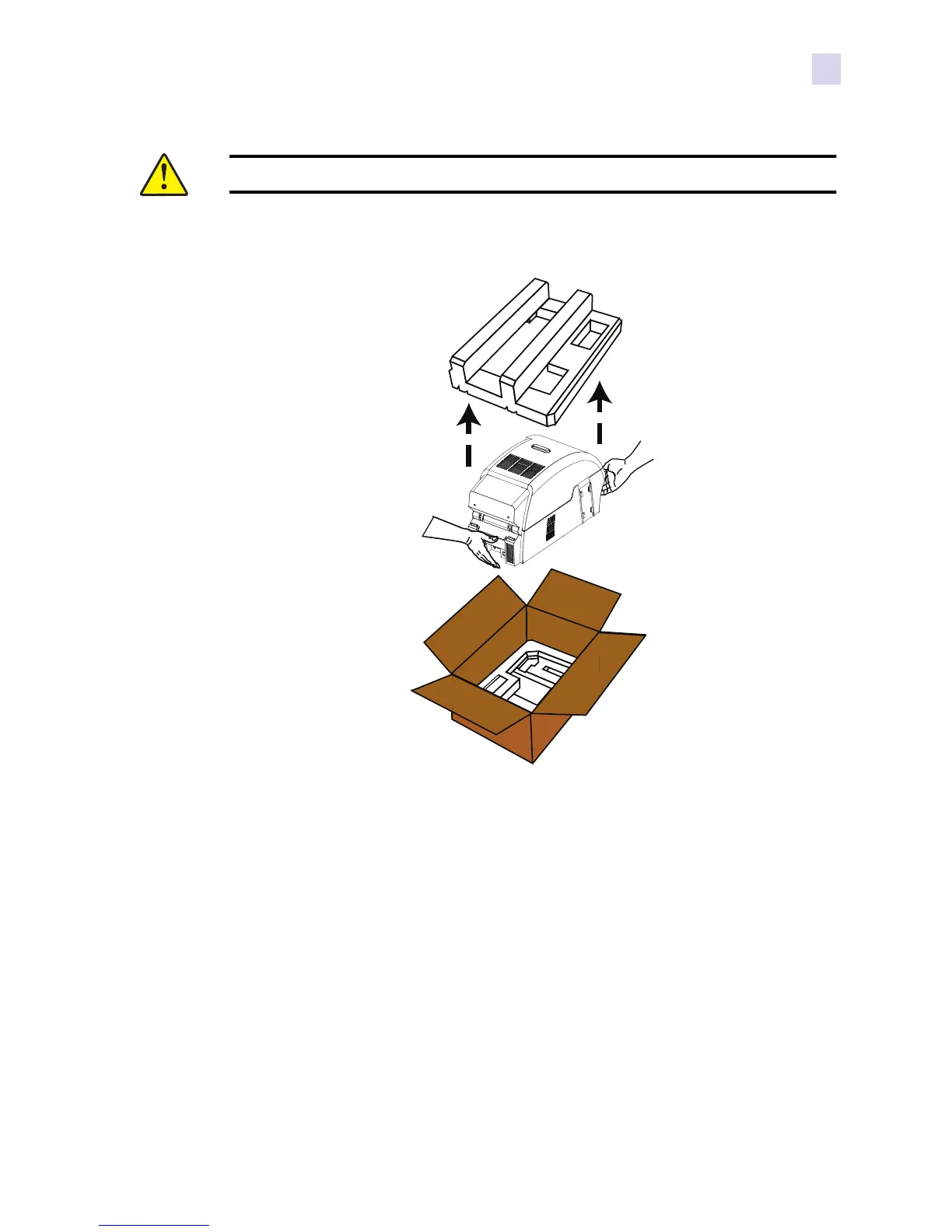

Step 5. Lift the Printer out of the carton by holding it with both hands.
Step 6. Place the Printer in a location that meets the following requirements:
• A reasonably dust- and dirt-free environment.
• Flat surface at least 27 in (686 mm) x 28 in (711 mm) that can support the
weight of the Printer; additional space preferred. Allow a 4-inch clearance,
minimum, on all sides.
• Vertical clearance at least 32 in (813 mm).
• Temperature within the range of 59° to 95°F (15° to 35°C).
• Relative Humidity 20 to 80% inclusive, non-condensing.
• AC power accessible.
Step 7. Remove the protective plastic bag from the Printer.
Caution • The Printer weighs approximately 27.5 lbs (12.5 kg).

Zebra ZXP Series 8 Specifications

General

Color	Yes
Maximum resolution	304 x 304 DPI
Standard interfaces	USB 2.0
Connectivity technology	Wired
Weight (imperial)	27.5 lbs
Dimensions (WxDxH)	356 x 519 x 303 mm
Compatible operating systems	Windows XP, Vista, Server 2003
Internal memory	64 MB
Storage temperature (T-T)	23 - 131 °F
Operating temperature (T-T)	15 - 25 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Power requirements	100 - 240 VAC, 50 - 60 Hz

Weight and Dimensions

Weight	12500 g
