9.0 MAINTENANCE AND SYSTEM CHECK
ACTIVATED ALUMINA (AA); 4-8 mm
ACTIVATED ALUMINA (AA); 4-8 mm
MOLECULAR SIEVE (MS)
-40
o
F DRYERS -100
o
F DRYERS
NOTE: Desiccant weight shown is per-dryer.

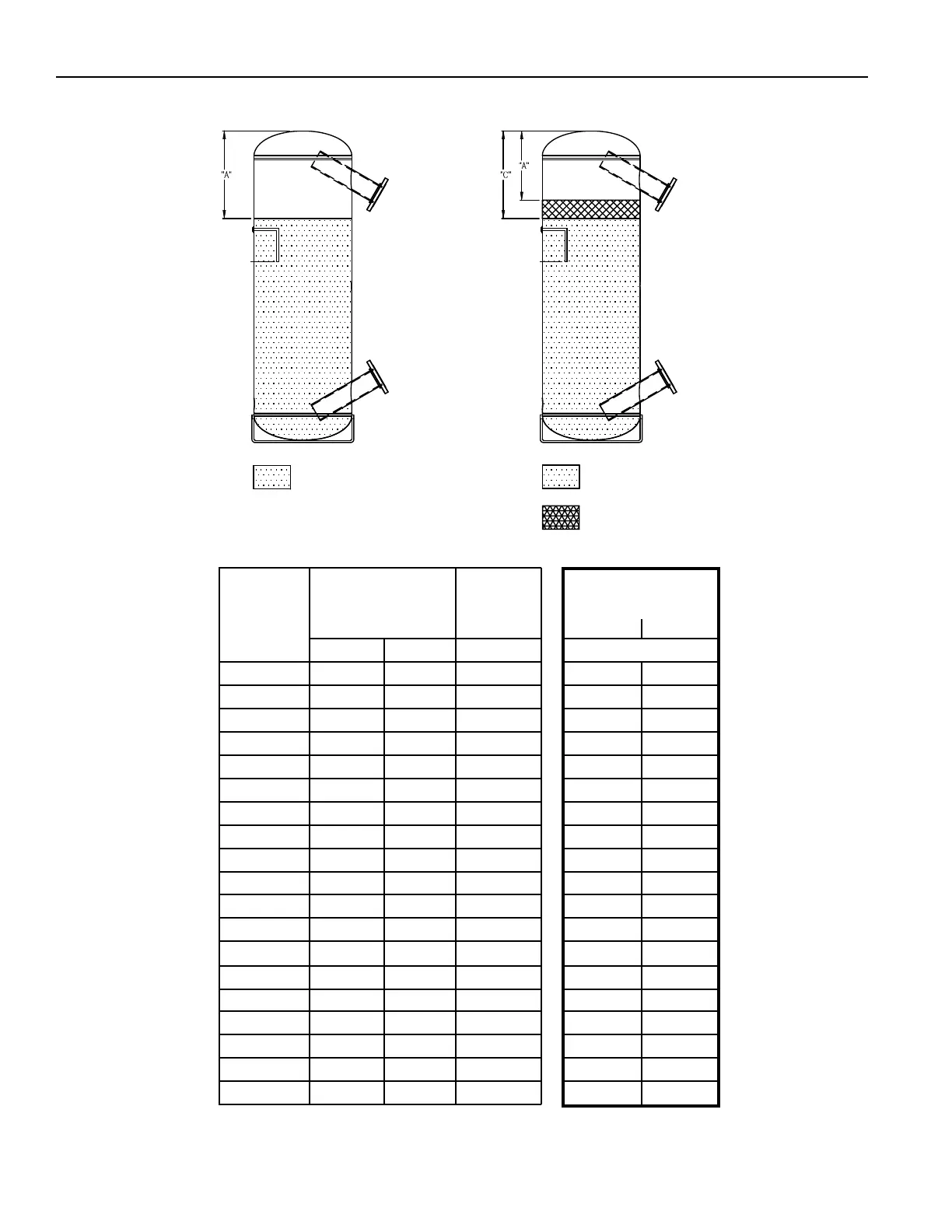

DESICCANT FILL INSTRUCTIONS
-40
o
F -100
o
F
DIMENSIONS DRYERS DRYERS
MODEL (INCH) (AA) (AA) (MS)
A C lbs./Dryer lbs./Dryer
90ZPB 23.00 30.00 100 75 25
120ZPB 17.00 20.38 134 100 34
160ZPB 22.00 29.75 192 150 50
200ZPB 14.00 21.50 236 177 59
250ZPB 23.00 28.00 290 215 75
300ZPB 12.00 21.25 344 258 86
400ZPB 11.00 22.25 470 352 118
500ZPB 27.00 32.00 638 478 160
600ZPB 17.50 29.00 748 560 188
800ZPB 34.00 41.00 900 675 225
1000ZPB 23.00 31.50 1,100 825 275
1200ZPB 10.00 23.75 1,270 950 320
1500ZPB 12.00 23.25 1,600 1,200 400
1800ZPB 35.00 45.75 2,000 1,500 500
2100ZPB 25.50 38.50 2,340 1,755 585
2700ZPB 6.00 26.00 2,928 2,196 732
3300ZPB 16.25 35.25 4,000 3,000 1,000
4000ZPB 7.75 29.00 4,400 3,300 1,100
5000ZPB 9.00 28.00 5,600 4,200 1,400
