ZEKS Eclipse 90ZPB - 12.0 GENERAL ARRANGEMENT; General Arrangement: 90 ZPB-120 ZPB NEMA 1; General Arrangement: 90 ZPB-120 ZPB NEMA 4

0
20
40
60
80
100
120
140
160
180
0 10203040506070
Purge Air Flow - SCFM
Purge Meter Setting - psig
Purge Orifice - 7/16"
800ZPA
Setting - 46 psig @ 130 SCFM
0
20
40
60
80
100
120
140
160
180
200
220
0 10203040506070
Purge Air Flow - SCFM
Purge Meter Setting - psig
Purge Orifice - 1/2"
1000ZPA
Setting - 43 psig @ 162 SCFM
0
30
60
90
120
150
180
210
240
270
300
0 10203040506070
Purge Air Flow - SCFM
Purge Meter Setting - psig
Purge Orifice - 9/16"
1200ZPA
Setting - 41 psig @ 195 SCFM
0
30
60
90
120
150
180
210
240
270
300
330
360
0 10203040506070
Purge Air Flow - SCFM
Purge Meter Setting - psig
Purge Orifice - 5/8"
1500ZPA
Setting - 41 psig @ 243 SCFM
0
30
60
90
120
150
180
210
240
270
300
330
360
0 10203040506070
Purge Air Flow - SCFM
Purge Meter Setting - psig
Purge Orifice - 5/8"
1800ZPA
Setting - 51 psig @ 292 SCFM
0
50
100
150
200
250
300
350
400
450
500
0 10203040506070
Purge Air Flow - SCFM
Purge Meter Setting - psig
Purge Orifice - 3/4"
2100ZPA
Setting - 40 psig @ 340 SCFM
ZEKS Eclipse
TM
90-5,000ZPB Desiccant Dryers
www.zeks.com
28

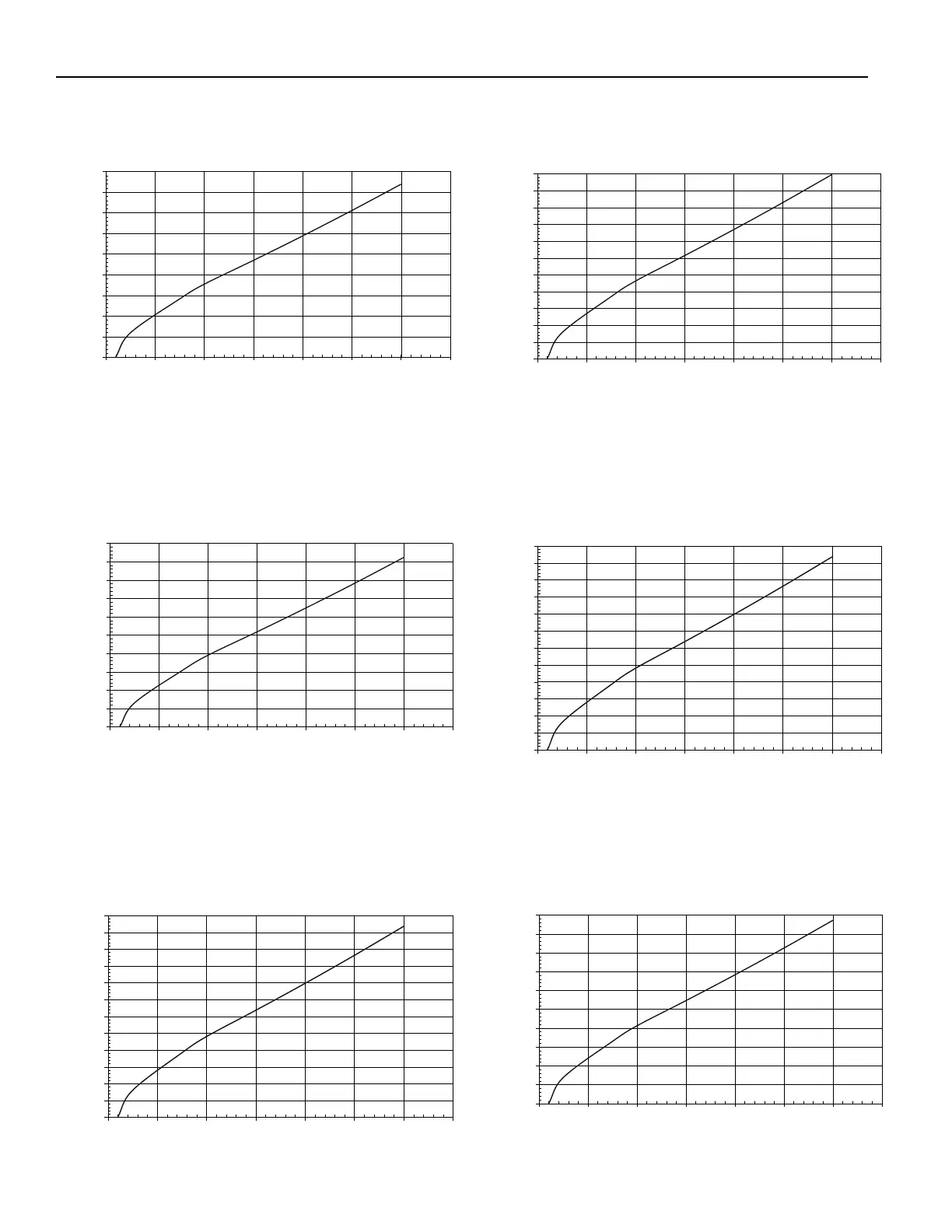

11.0 PURGE CHARTS
Dryer Model: 800ZPB
Purge Pressure Setting: 46 psig @ 130 SCFM
Purge Orifi ce: 7/16”
Dryer Model: 1000ZPB
Purge Pressure Setting: 43 psig @ 162 SCFM
Purge Orifi ce: 1/2”
Dryer Model: 1200ZPB
Purge Pressure Setting: 41 psig @ 195 SCFM
Purge Orifi ce: 9/16”
Dryer Model: 1500ZPB
Purge Pressure Setting: 41 psig @ 243 SCFM
Purge Orifi ce: 5/8”
Dryer Model: 1800ZPB
Purge Pressure Setting: 51 psig @ 292 SCFM
Purge Orifi ce: 5/8”
Dryer Model: 2100ZPB
Purge Pressure Setting: 40 psig @ 340 SCFM
Purge Orifi ce: 3/4”
