5.3.4 Install Smart PVHub
5.3.5 Install Microinverter
Note:
• Please install the PVHub in a place out of direct sunlight
• The length of our solar cables are 3 meter, so before conrming the
location of the PVHub's installation, please measure the distance from
MC4 connector of solar panel to MC4 connector of PVHub
• In order to less connections, it is recommended that micro-inverter is
installed between Smart PVHub and home socket, close to the PVHub.
• Ensure a distance of at least 50mm between the Smart PV Hub and the
microinverter to dissipate heat.
2
1
3
4
2
1
3
4
2
3
1
4
2
1
3
1
1
2
2
4
1 2
6
3
3
4 5

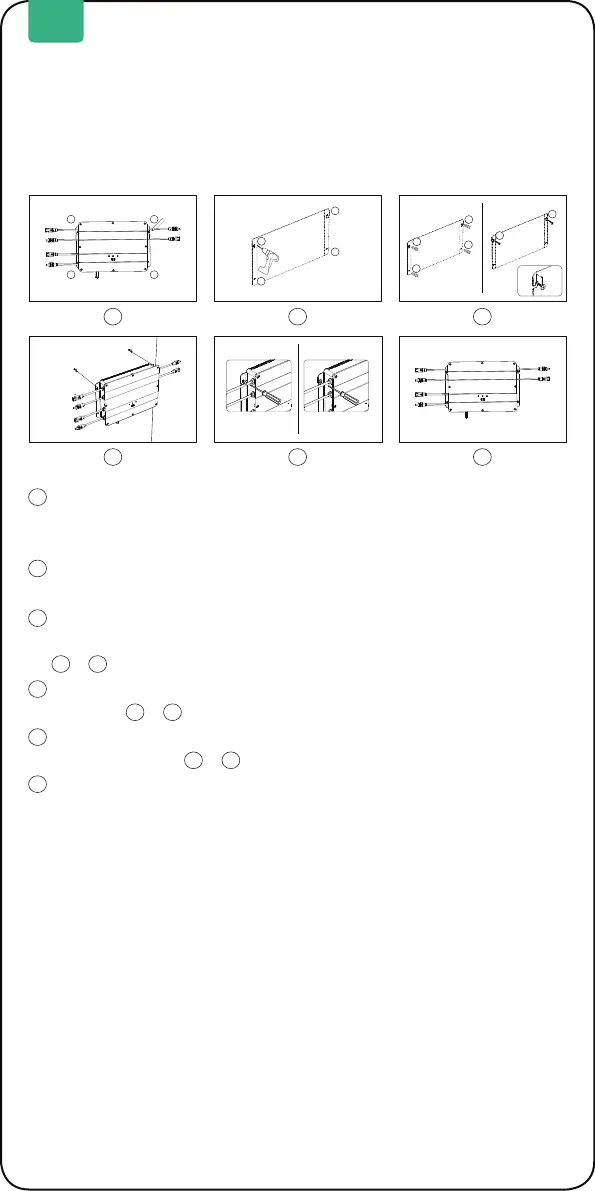

Mark Location, Find a wall you plan to install, one person xes the
Smart PVHub on the wall with his hands, and the other person marks
the positions of the four screw holes of the PVHub with a marker.
Drilling,drill four diameter 8mm mounting holes at the four marked
positions.
Installing screws,rst Respectively Install the yellow plastic expansion
screw tube into the 4 holes which step 3 drilling,then screw 2/3 of the
& screws into the yellow plastic expansion tube.
Hang Smart PVHub, please hang the Smart PVHub on exposed part of
the screw & .
One person xes the Smart PVHub with both hands, and the other one
screws the rest of & screw into the wall completely.
Install another two screws, screw 3 and 4 into the yellow plastic
expansion tube and completely into the wall.In this way, you have
completed the installation of PVHub.
1
2
6
4
5
1
1
1
2
2
2
The method of assembly is subject to the instructions of the
microinverter.
