ZENEC ZE-DAB60 - Antenna Installation Steps 4-9

9
ZE
-
DAB60

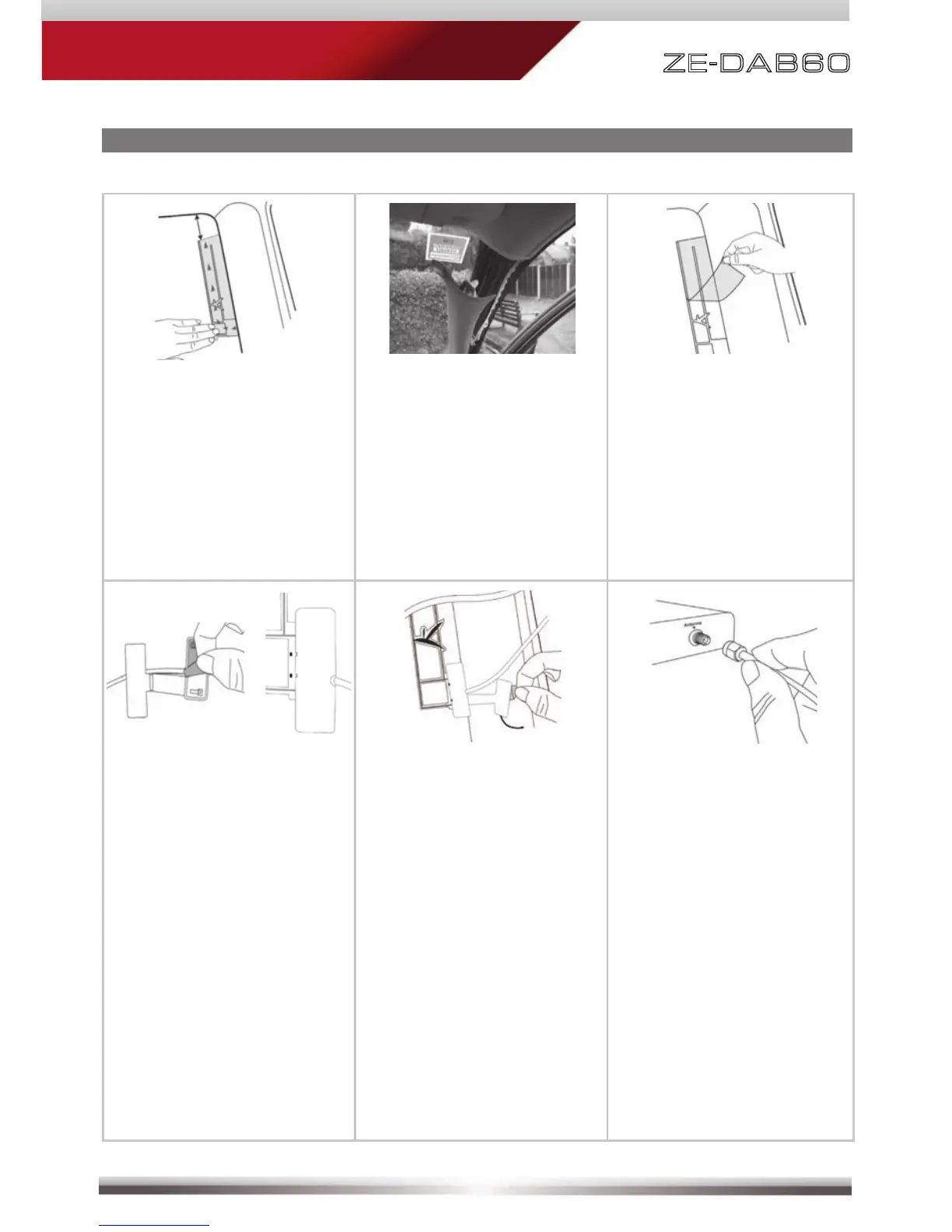

PLACING AND CONNECTING ANTENNA
Apply with
pressure
• Apply pressure vertically
from bottom to top for
secure attachment.
Remove the pillar
cover
• Remove the front right pillar
cover gently.
• Take care not to interfere
with the airbag safety
system when removing the
pillar cover.
Remove the transparent
slip
• Remove the transparent
slip on antenna film gently
but do not touch the
contact port (sticky part of
antenna).
• Do not apply any glass
cleaner.
Peel off the sticker
paper
• Peel off the sticker paper
on contact box.
• The metal part of the
contact box should be
kept clean.
• Match the notches of
the contact box with
the counter pieces on
antenna film.
• Paste the contact box with
gentle pressure.
Adhere the earth stripe to
car body (metal part)
• Peel off the sticker paper
on the earth sheet and
stick the earth sheet onto
the metal part of the
windscreen pillar.
• You don’t need to remove
any paint for the earth con-
tact to work.
• Provide sufficient leeway
for the earth sheet.
Connect the antenna
to the unit
• Route the antenna cable
down the pillar down and
across the inside of the
dash, to the DAB receiver
location.
• Take care that when
installing the amplifier part
of the antenna cable
behind or away from an air
bag or its wiring so that it
does not interfere with the
vehicle safety system.
  
  
min.
5 cm
