PLACING AND CONNECTING ANTENNA
NOTE:
The film antenna is exclusively for use inside the vehicle.
Do not install this film antenna at the following locations:
- Where it may block driver‘s view.
- Where it may obstruct operation of safety devices such as airbags.
- On movable glass surface.
Be sure to check the installation location of film antenna before installation. Film
antenna cannot be re-pasted, so please check the cable grounding mechanism
before actually pasting the antenna onto the wind glass.
Thoroughly wipe oil and dirt off from the pasting surface with the included
cleaner.
Do not bend or damage the film antenna.

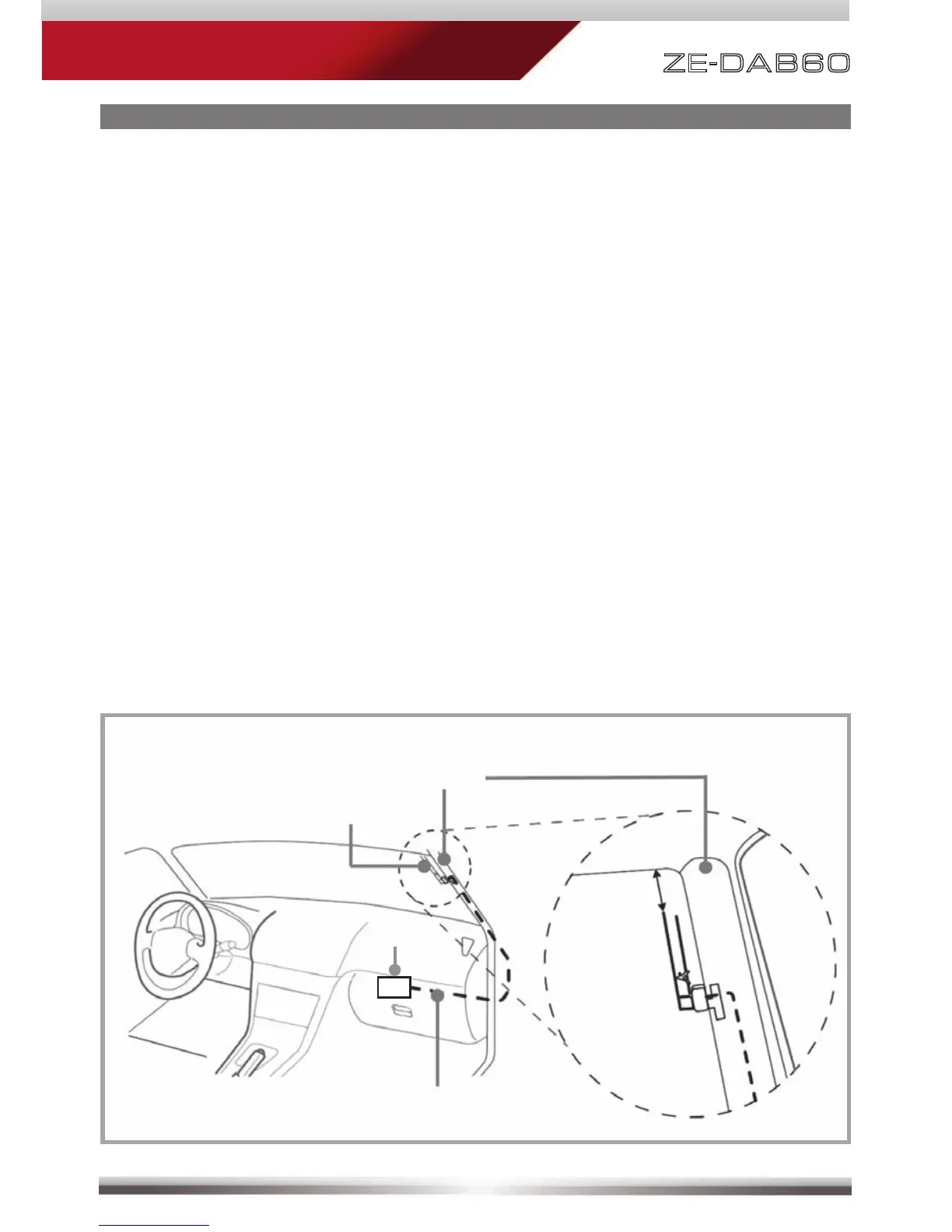

Mounting location
Installation overview
Antenna input cable
Front pillar
Film antenna
min.
5 cm
ZE-DAB60
