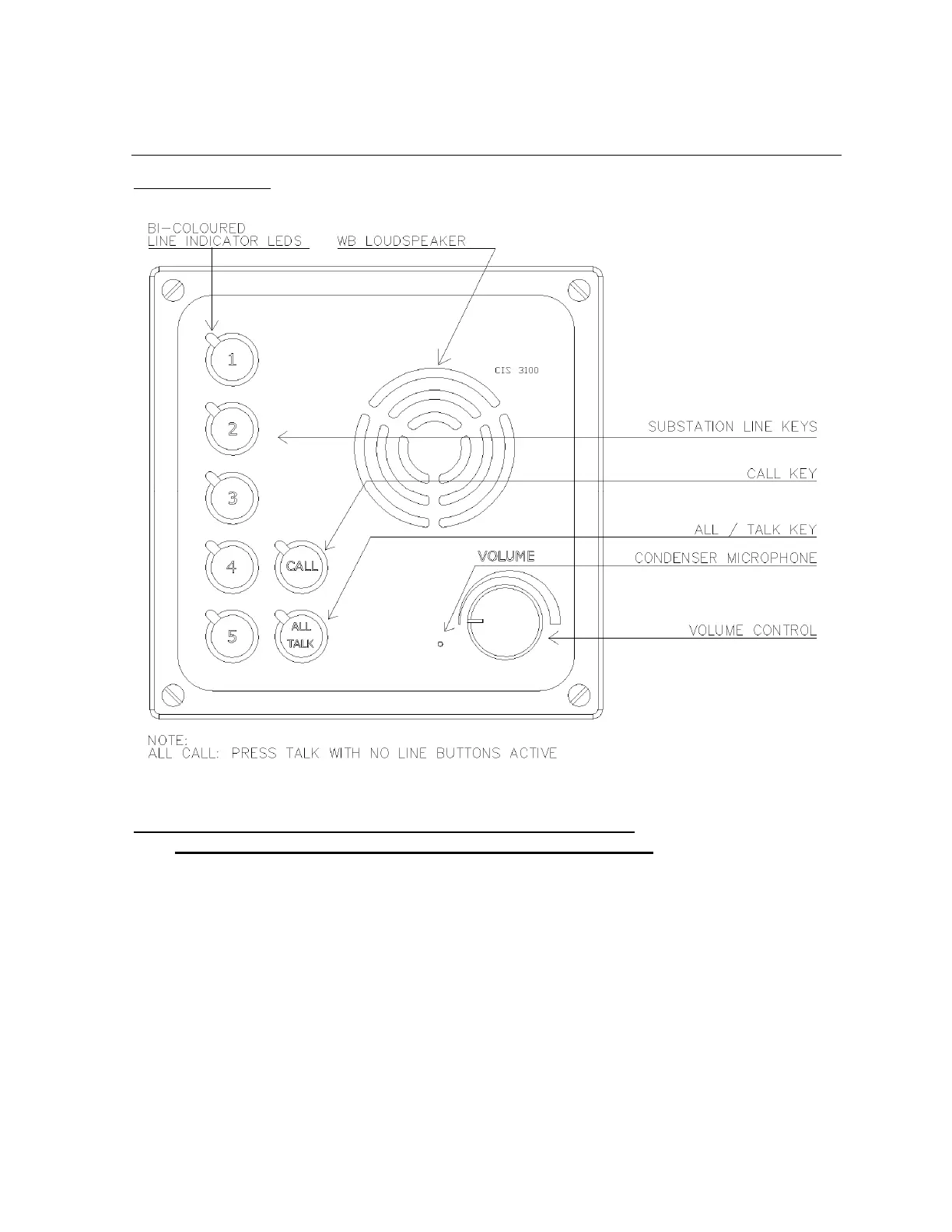

FIGURE 1 / FIGUR 1
4.0 MOUNTING
/ INSTALLATION / SCREEN CONNECTION
MONTERING / INSTALLASJON OG SKJERMTERMINERING
Eng.:
MOUNTING:
The master stations 3100/3101/3102 is delivered for flush mounting.
On request the units may be delivered with wall-mounting box. (option)
Front plate dimensions 3100 and 3101: 144 x 144 mm. (HxW)
3102: 144 x 192 mm. (HxW)
Cut- out dimensions for flush-mounting 3100 and 3101: 115 x 115 mm. (HxW)
3102: 115 x 163 mm. (HxW)
Depth, all types flush mounted: 100 mm.
wall mounted: 100 mm.
INSTALLATION:
The installation should be planned in details before starting. The cables should be listed in a cable plan, with number of
pairs a.s.o.
The location of each unit in the intercom system should be planned to obtain maximum performance and user ability.
