T:\Dataark\DOC-format\Ex_EEx\DSP-15EExmN Ohm.doc
D
SP
-
15EExmN

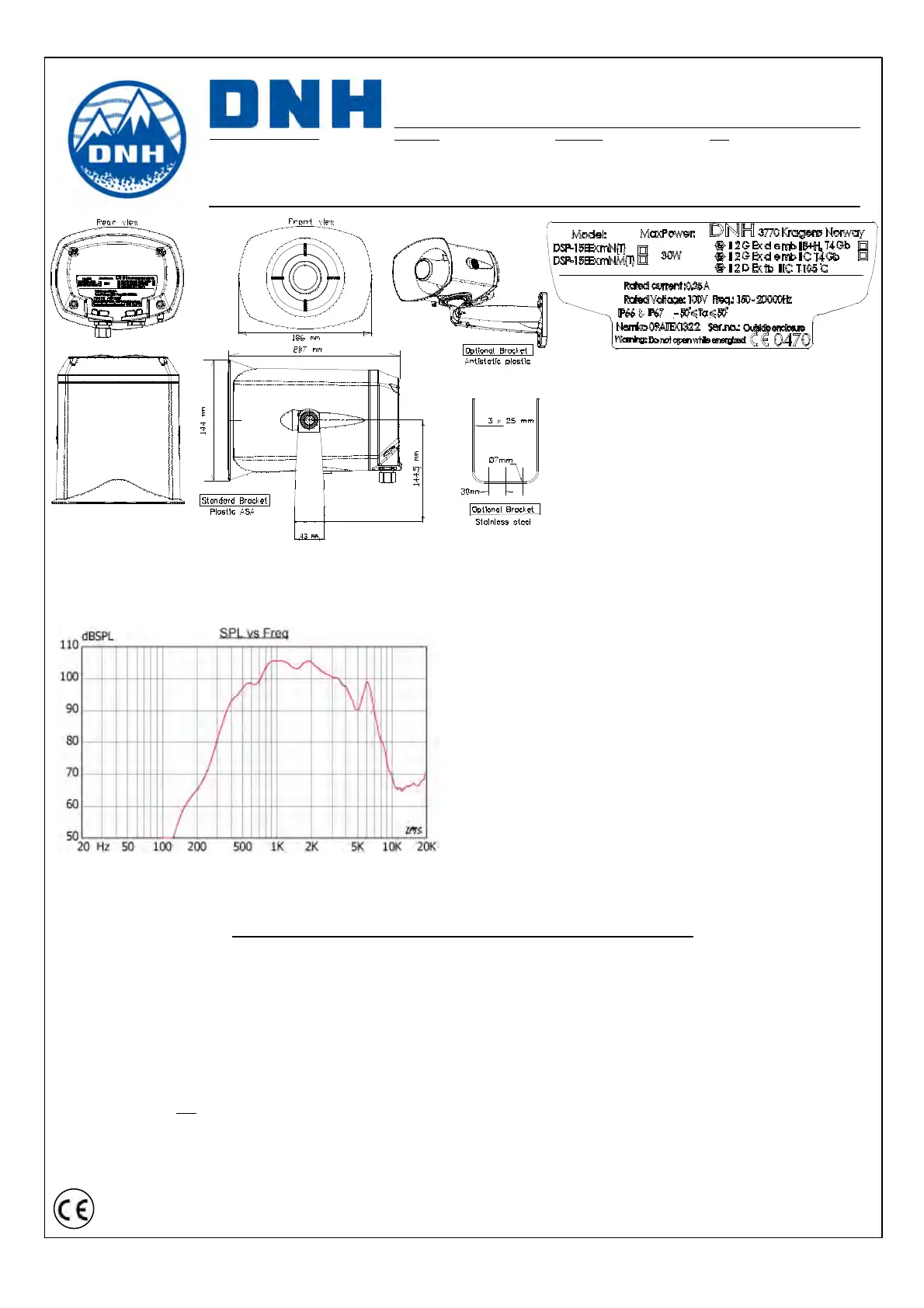

Installation, Operation and Maintenance Procedures
 When mounting the loudspeaker please ensure that it is re-assembled in the same manner in which it was received.
 To change the position of the loudspeaker, please adjust the bracket (by loosening / tightening the screws) as required.
 Use only certified/specified cable glands and blanking plugs, reflecting the same IP rating and temperature range
as the loudspeaker.
 DSP-15 EExmN can be supplied with different bracket systems, according to customer requirements.
 For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated.
 Options: Impedances and labels
 Use only certified/specified cable glands and blanking plugs.
 WARNING: Do not open loudspeaker when energized.
 Fasten lid with a torque of 2 - 3 Nm.
 This loudspeaker is supplied with a 2 year warranty against defective materials and workmanship.
Rev. 21.10.2011
SPL at 1W/1m Sine wave
Material / Color ........................... Anti-st
atic PA / Black
Mounting ...................................................... Bracket
Termination ....................... e-chamber, push terminals
Weight ......................................................... 1,8 kg
IP-rating ....................................................... 66 / 67
Max / min amb. temp .............................. 50°C / -50°C
Rated / max. power ..................................15 W/30 W
SPL 1W/1m .................................................... 105 dB
SPL rated power 15 W .................................... 116 dB
Effective freq range.............................. 380 – 7000 Hz
Dispersion (-6dB) 1kHz / 4kHz .................... 200° / 50°
Directivity factor, Q (1 kHz) .................................. 1,8
M20 EExe ATEX
approved cable gland
and M20 EExe ATEX
approved blinding
plug
IIB
IIC
1
02 dB
113 dB
450-6000
105° / 35°
