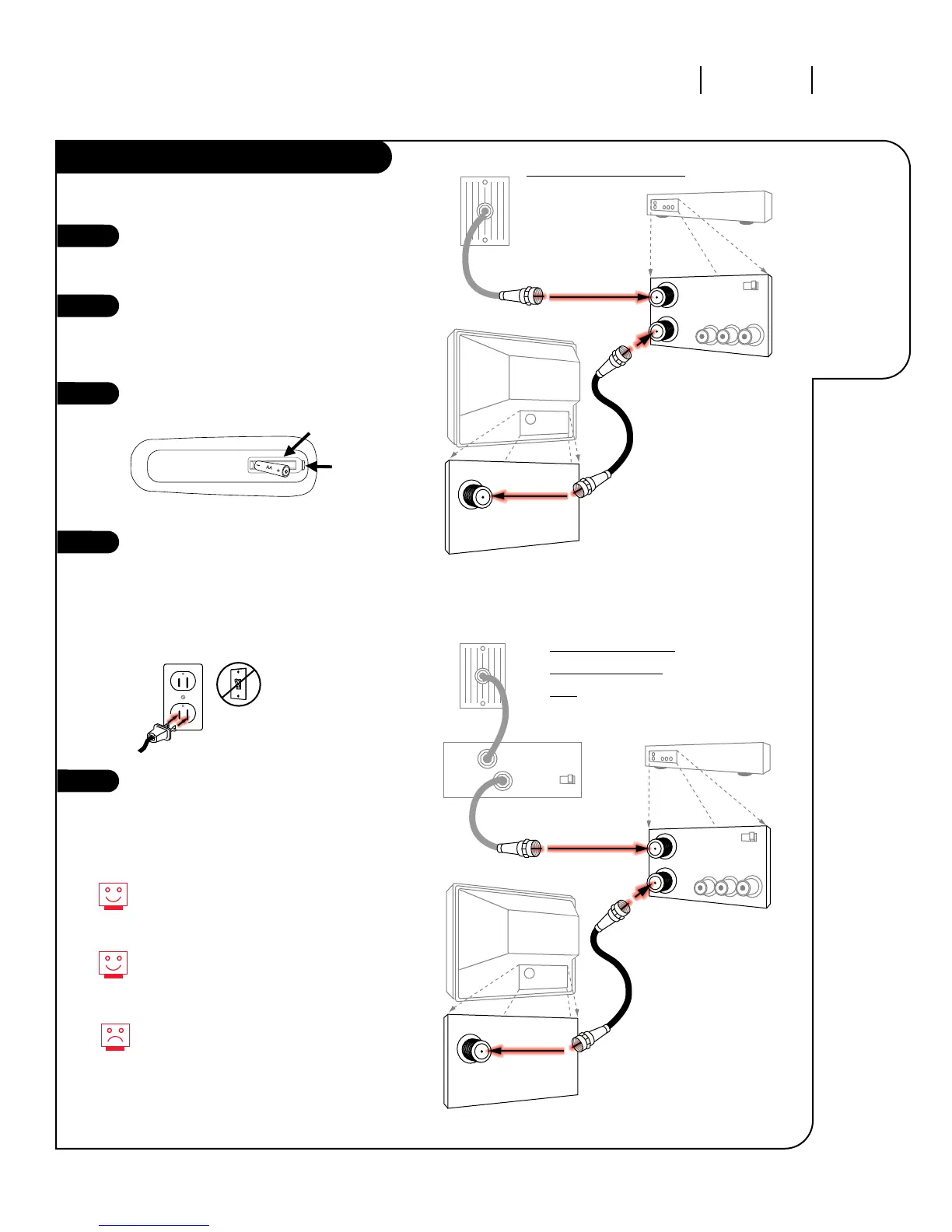

Zenith A19A02D - Hook Up Your Cable (CATV) and VCR

Locate the Antenna/Cable jack on
the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack,
according to the diagram to the
right.
Remove the back of the remote
and put in two AA batteries.
Plug in your TV. Do not plug it
into a switched outlet. Your
Entertainment Machine is
designed to operate on household
current, 120-volt 60 Hertz AC do
not attempt to operate it on DC
Current.
Go to page 8 to Auto Program
your Entertainment Machine.
1
2
3
4
5
206-3369-A
INSTALLATION STANDARD PAGE 7
Connect
your VCR and
Cable to your
Entertainment
Machine.
Hook Up Your Cable (CATV) and VCR
Leave your VCR and your television
tuned to channel three and use
the cable box to change channels.
Remember, when screwing in RF
cables onto jacks, clockwise tight-
ens, and counterclockwise loosens.
No A/V cables are included with
your Zenith Entertainment
Machine. Without A/V cables, most
VCRs will not play videocassettes
in stereo sound.
Cable TV
wall jack
Cable TV
wall jack
RF coaxial cable (75ohm)
RF coaxial cable (75ohm)
Cable box
In
Out
TV back panel
(expanded view)
Antenna
Cable
TV back
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
TV back panel
(expanded view)
Antenna
Cable
TV back
RF coaxial cable (75ohm)
not included with TV
RFcoaxial cable (75ohm)
not included with TV
output
switch
3 4
output
switch
output
switch
back of remote
Cable with Cable
Box to TV with
VCR
Cable to TV with VCR
