Zenith A19A02D - Hook Up Antenna and VCR to the TV

Locate the Antenna/Cable jack on
the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack,
according to the diagram to the
right.
Remove the back of the remote
and put in two AA batteries.
Plug in your TV. Do not plug it
into a switched outlet. Your
Entertainment Machine is
designed to operate on household
current, 120-volt 60 Hertz AC do
not attempt to operate it on DC
Current.
Go to page 8 to Auto Program
your Entertainment Machine.
206-3369-A
INSTALLATION STANDARDPAGE 6
Connect your
off-air
antenna and
VCR to your
Entertainment
Machine.

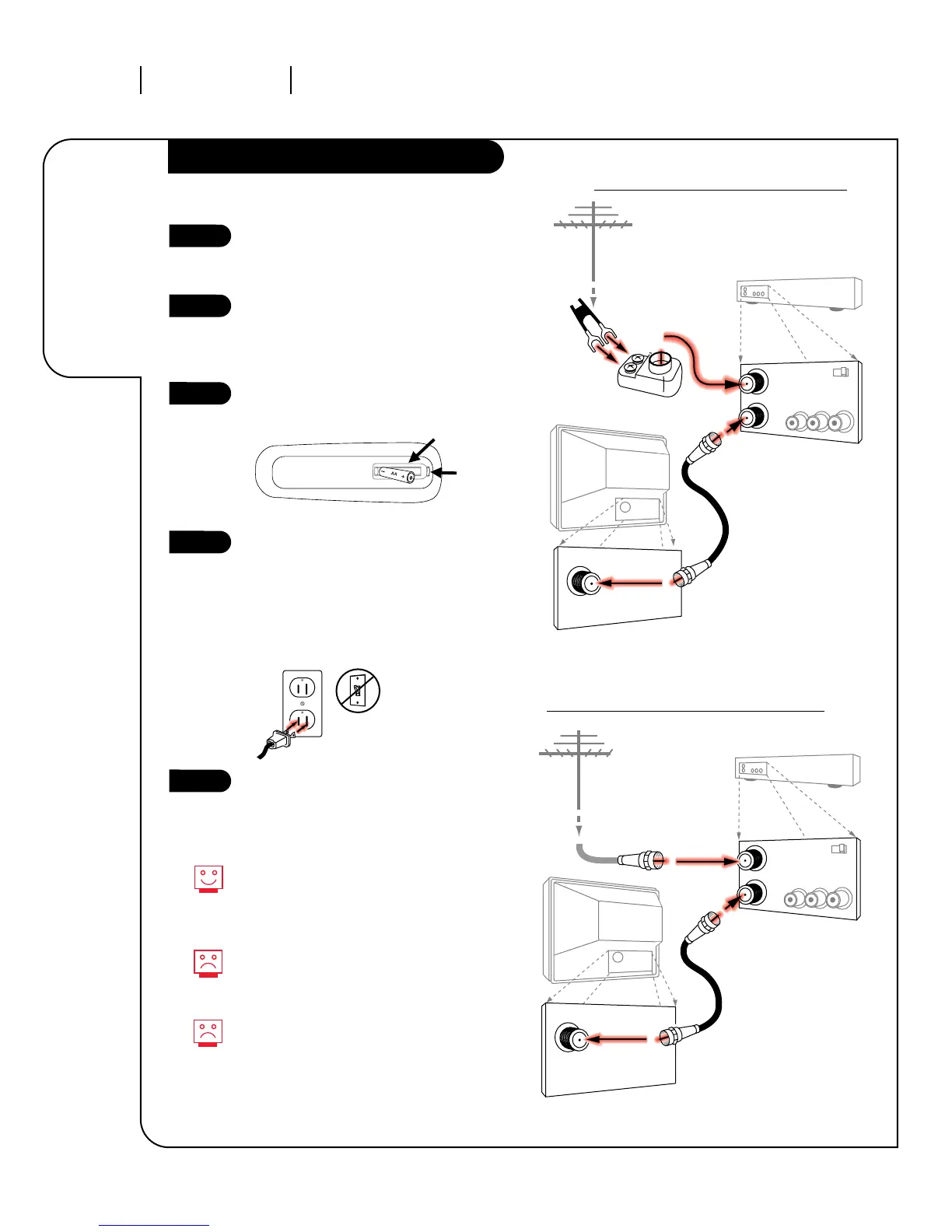

Hook Up Antenna and VCR to the TV
TV back panel
(expanded view)
Antenna
Cable
TV back
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
TV back panel
(expanded view)
Antenna
Cable
TV back
Flat wire
(300ohm)
Antenna
300/75 ohm
Adapter
RF coaxial wire (75 ohm)
not included with TV
Antenna
RF coaxial wire (75ohm)
not included with TV
RF coaxial wire (75 ohm)
not included with TV
Output
switch
Output
switch
back of remote
Remember, when screwing
RF cables onto jacks, clockwise
tightens, and counterclockwise
loosens.
No A/V cables are included
with your Zenith Entertainment
Machine.
Without A/V cables, most VCRs will
not play videocassettes in stereo
sound.
1
2
3
4
5
Flat wire Antenna to TV with VCR
Coaxi
al wire Antenna to TV with VCR
