Zenith A20A22D - Connect Cable and VCR to TV

Locate the Antenna/Cable jack on
the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack,
according to the diagram to the
right.
Remove the back of the remote
and put in two AAA batteries.
Plug in your TV. Do not plug it
into a switched outlet. Your
Entertainment Machine is
designed to operate on household
current, 120-volt 60 Hertz AC. Do
not attempt to operate it on DC
Current.
Go to page 8 to Auto Program
your Entertainment Machine.
206-3371-A
INSTALLATION STANDARD PAGE 7
Connect your
VCR and
Cable to your
Entertainment
Machine.

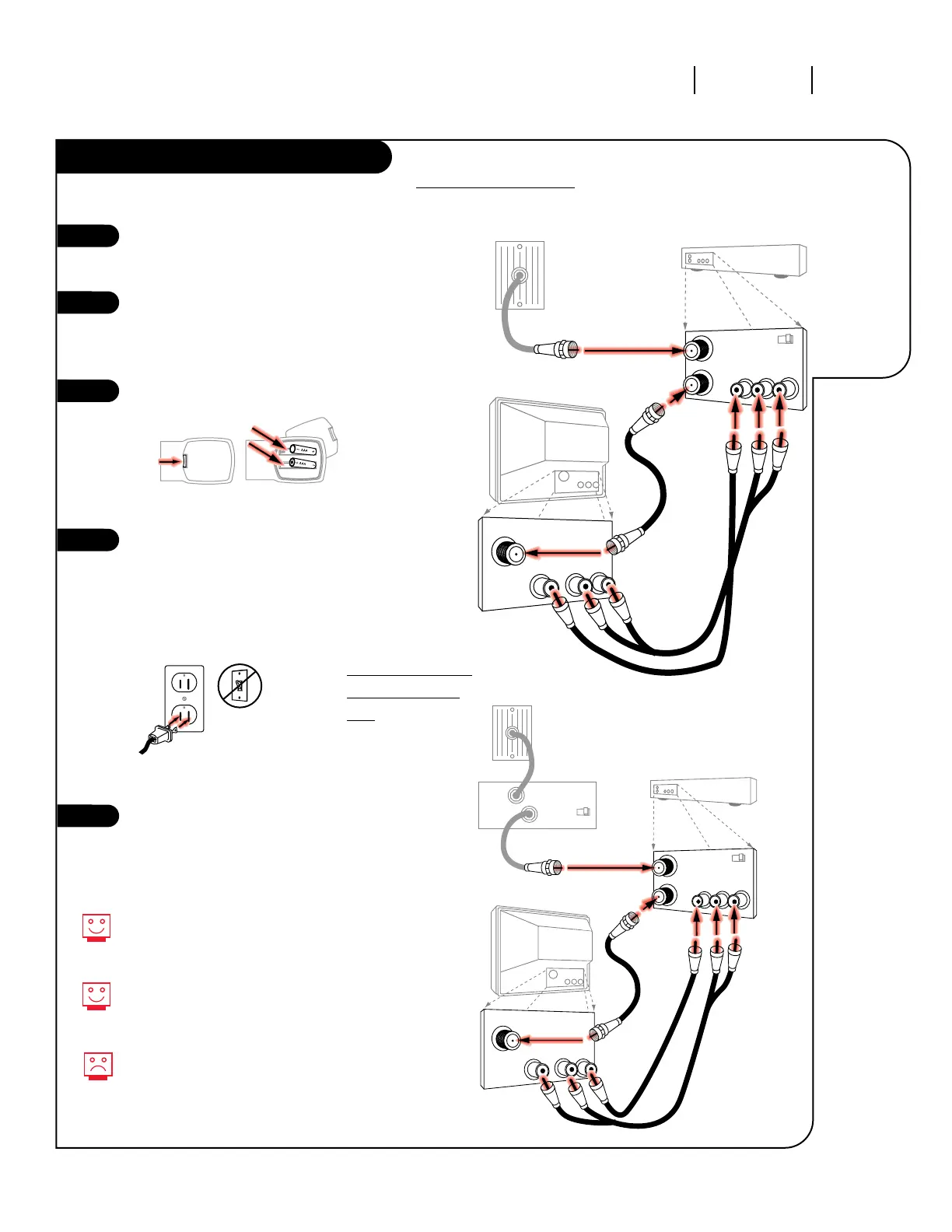

Hook Up Your Cable (CATV) and VCR
Leave your VCR and your television
tuned to channel three and use
the cable box to change channels.
Remember, when screwing in RF
cables onto jacks, clockwise tight-
ens, and counterclockwise loosens.
No A/V cables are included
with your Entertainment Machine.
Without A/V cables, most VCRs
will not play videocassettes in
stereo sound.
Cable TV
wall jack
RF coaxial cable (75ohm)
TV back panel
(expanded view)
Antenna
Cable
TV back
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
output
switch
Audio In Video
back of
remote
1
2
3
4
Cable TV
wall jack
RF coaxial cable (75ohm)
Cable box
In
Out
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
output
switch
3 4
output
switch
TV back panel
(expanded view)
Antenna
Cable
TV back
RF coaxial wire
(75ohm)
not included
with TV
Audio In Video
A/V cables
not included
with TV
5
Cable with Cable
Box to TV with
VCR
Cable to TV with VCR
