CM151 5-1 CA - EXPLODED VIEWS
SECTION 5
MECHANICAL EXPLODED VIEWS

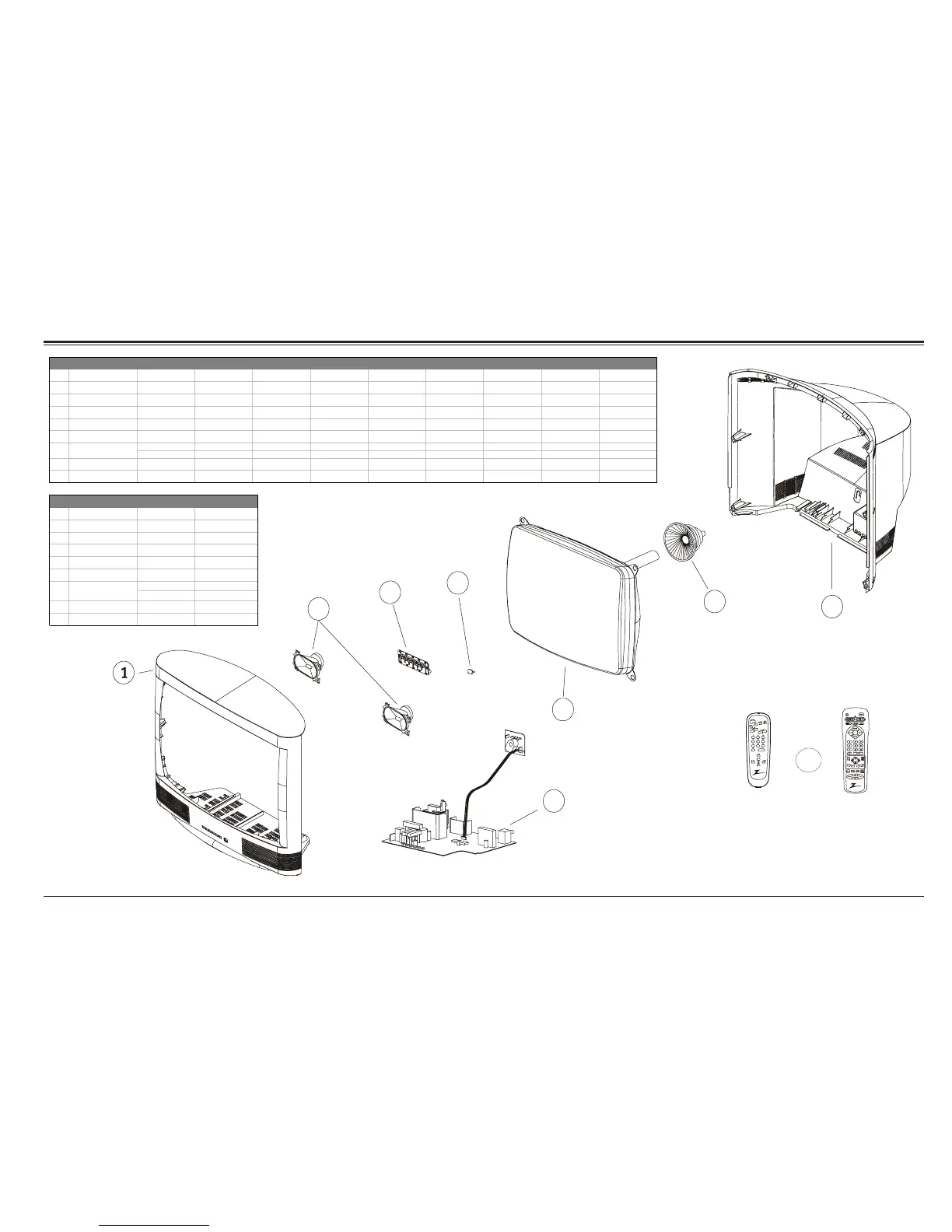

25/26V Table Top Set Exploded View
REF DESCRIPTION LGB26A11ZM LGB26A11ZM6
1 FRONT CABINET 014-12296-17 014-12296-17
2 SPEAKER 049-01368-03 049-01368-03
3 KNOB ARRAY 046-10578 046-10578
4 IR LENS 192-00916 192-00916
5 CRT ASSEMBLY A63AFW38X A63AFW38X
6 YOKE 095-04456-06 095-04456-06
COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR
8 REAR CABINET 014-12297-09 014-12297-09
9 REMOTE CONTROL 124-00233 124-00233
7 MAIN MODULE
REF DESCRIPTION B25A02Z B25A10Z B25A10Z6 B25A10ZC B25A10ZC6 B25A10ZCF B25A11Z B25A11Z6 B25A11ZF
1 FRONT CABINET 014-12296-17 014-12296-17 014-12296-17 014-12296-17 014-12296-17 014-12296-17 014-12296-17 014-12296-17 014-12296-17
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03
3 KNOB ARRAY 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578
4 IR LENS 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916
5 CRT ASSEMBLY A63AFW38X A63AFW38X A63AFW38X A63AFW38X A63AFW38X A63AFW38X A63AFW38X A63AFW38X A63AFW38X
6 YOKE 095-04456-06 095-04456-06 095-04456-06 095-04456-06 095-04456-06 095-04456-06 095-04456-06 095-04456-06 095-04456-06
COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
8 REAR CABINET 014-12297-08 014-12297-08 014-12297-08 014-12297-08 014-12297-08 014-12297-08 014-12297-09 014-12297-09 014-12297-09
9 REMOTE CONTROL 124-00213-23 124-00213-23 124-00213-23 124-00213-23 124-00213-23 124-00213-23 124-00233 124-00233 124-00233
7 MAIN MODULE
3
4
2
7
5
6
8
9
C
C
MBR3492Z
124-00213-23
MBR3447Z
124-00233
