Zenith B25A76R - Page 89

CM151 5-2 CA - EXPLODED VIEWS

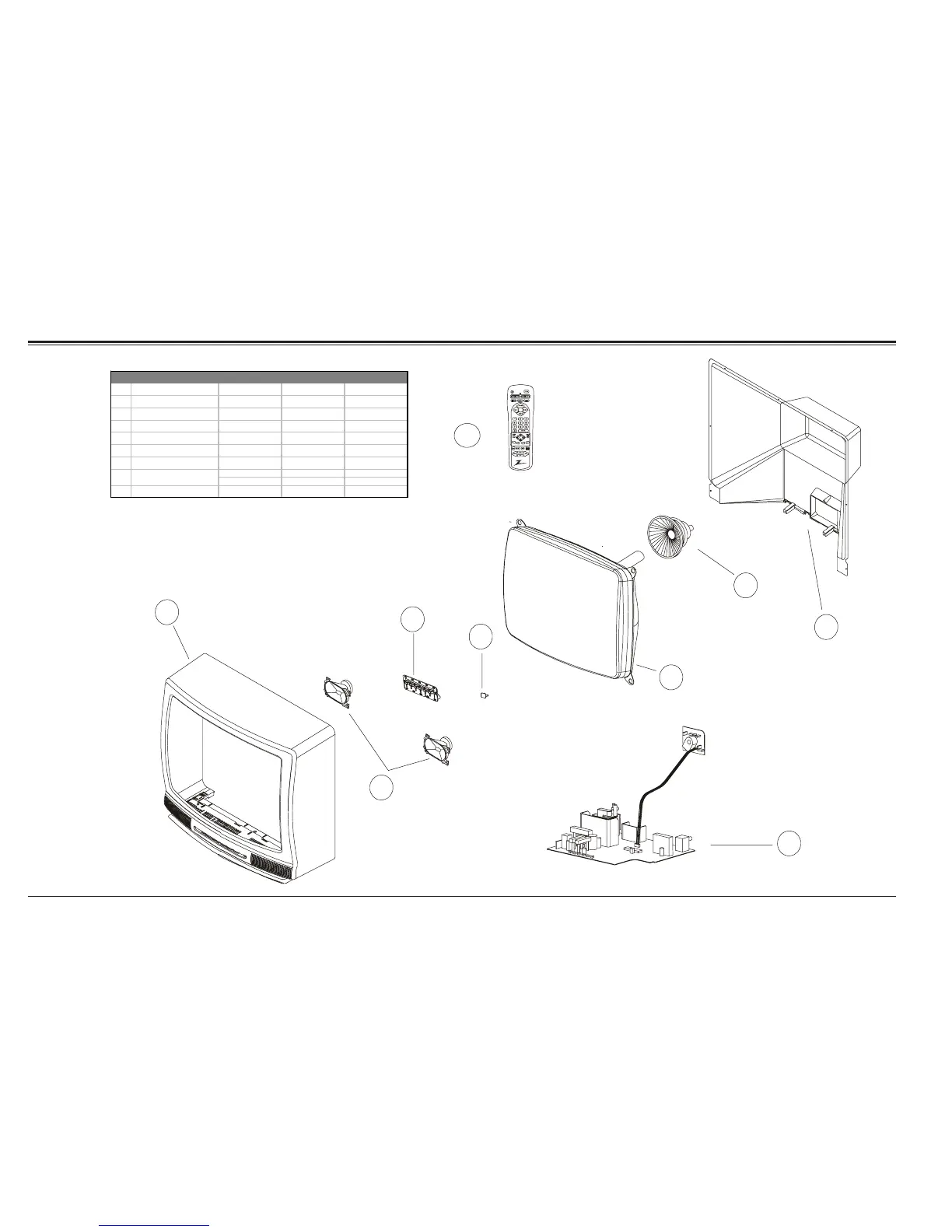

25V Table Top Set Exploded View
8
1
7
6
5
9
3
4
2
MBR3447Z
124-00233
REF DESCRIPTION B25A24Z B25A24Z6 B25A24ZF
1 FRONT CABINET 014-12187-14 014-12187-14 014-12187-14
2 SPEAKER 049-1368-03 049-1368-03 049-1368-03
3 KEYBOARD ASSEMBLY F-50826 F-50826 F-50826
4 IR LENS 192-00858-01 192-00858-01 192-00858-01
5 CRT ASSEMBLY A63AFW38X A63AFW38X A63AFW38X
6 YOKE 095-04456-06 095-04456-06 095-04456-06
7 REAR CABINET 014-12181-09 014-12181-09 014-12181-09
COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
9 REMOTE CONTROL 124-00233 124-00233 124-00233
8 MAIN MODULE
