CM151 5-3 CA - EXPLODED VIEWS

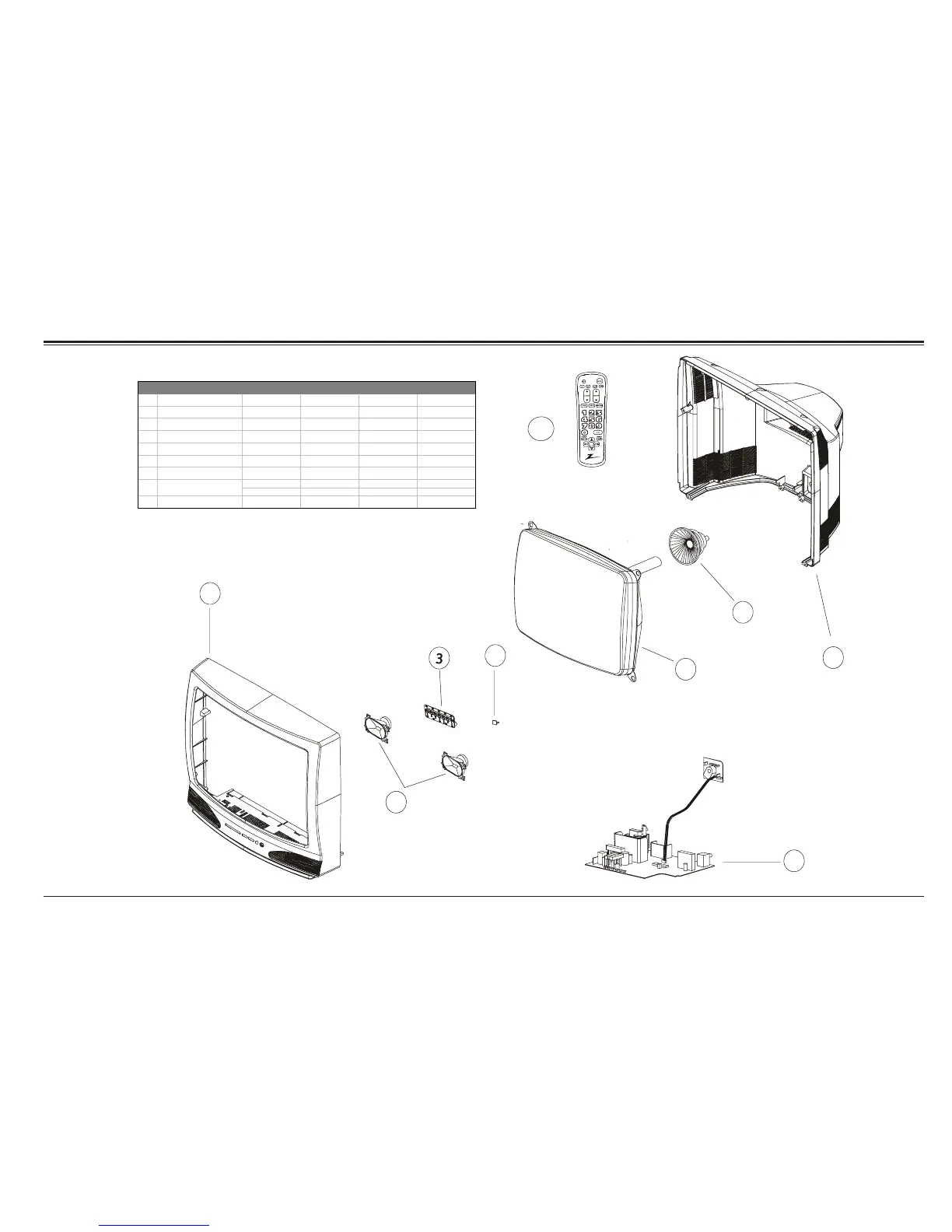

25V Table Top Set Exploded View
8
4
2
1
7
6
5
9
MBR3346Z
124-00229-01
REF DESCRIPTION B25A30ZC B25A30ZCF CB25A25Z CB25A25Z6
1 FRONT CABINET 014-12229-17 014-12229-17 014-12229-17 014-12229-17
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03 049-01368-03
3 KEYBOARD ASSEMBLY F-50825 F-50825 F-50825 F-50825
4 IR LENS 192-00887 192-00887 192-00887 192-00887
5 CRT ASSEMBLY A63AFW38X A63AFW38X A63AFW38X A63AFW38X
6 YOKE 095-04456-06 095-04456-06 095-04456-06 095-04456-06
7 REAR CABINET 014-12230-03 014-12230-03 014-12230-03 014-12230-03
COMPONENT COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
9 REMOTE CONTROL 124-00229-01 124-00229-01 124-00233 124-00233
8 MAIN MODULE
