Zenith B25A76R - Page 91

CM151 5-4 CA - EXPLODED VIEWS

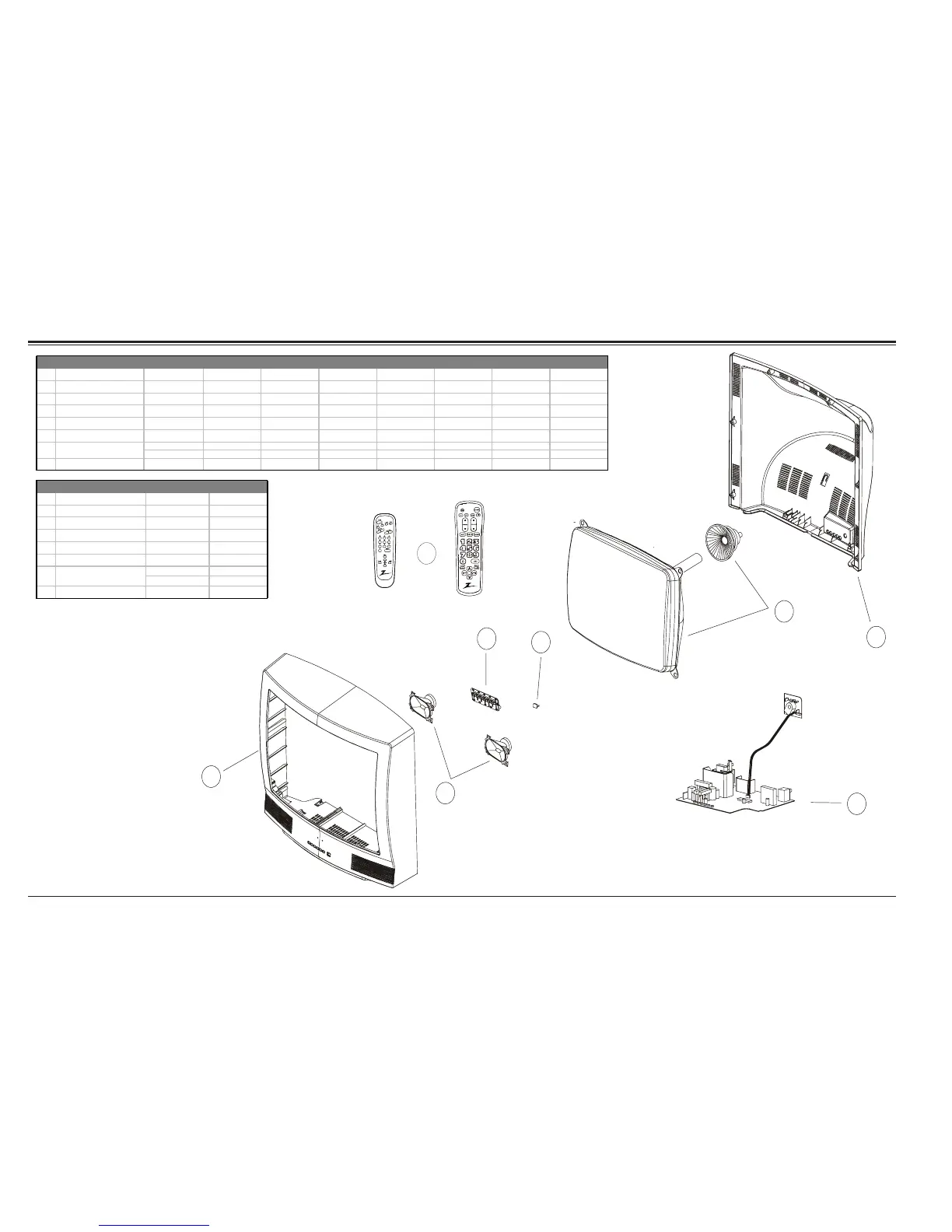

27/29V Table Top Set Exploded View
8
3
4
2
1
6
5
7
C
C
MBR3492Z
124-00213-23
MBR3345Z
124-00229
REF DESCRIPTION B27A10Z B27A10Z5 B27A10ZC5 B27A10Z6 B27A10ZC B27A10ZC6 B27A10ZCF LGB29A10ZM
1 FRONT CABINET 014-12305-08 014-12305-08 014-12305-08 014-12305-08 014-12305-08 014-12305-08 014-12305-08 014-12305-08
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03
3 KNOB ARRAY 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578
4 IR LENS 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916
5 YOKE & CRT ASSEMBLY A-19058-03 A-19058-01 A-19058-01 A-19058-03 A-19058-03 A-19058-03 A-19058-03 A-19058-03
6 REAR CABINET 014-12304-03 014-12304-03 014-12304-03 014-12304-03 014-12304-03 014-12304-03 014-12304-03 014-12304-03
COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
8 REMOTE CONTROL 129-00213-23 129-00213-23 129-00213-23 129-00213-23 129-00213-23 129-00213-23 129-00213-23 124-00213-23
7 MAIN MODULE
REF DESCRIPTION LGB29A10ZM5 LGB29A13ZM
1 FRONT CABINET 014-12305-08 014-12305-08
2 SPEAKER 049-01368-03 049-01368-03
3 KNOB ARRAY 046-10578 046-10578
4 IR LENS 192-00916 192-00916
5 YOKE & CRT ASSEMBLY A-19058-01 A-19058-03
6 REAR CABINET 014-12304-03 014-12304-03
COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR
8 REMOTE CONTROL 124-00213-23 129-00229
7 MAIN MODULE
