Zenith B25A76R - Page 94

CM151 5-7 CA - EXPLODED VIEWS
8
3
4
2
1
7
6
5
MBR3346Z
124-00229-01

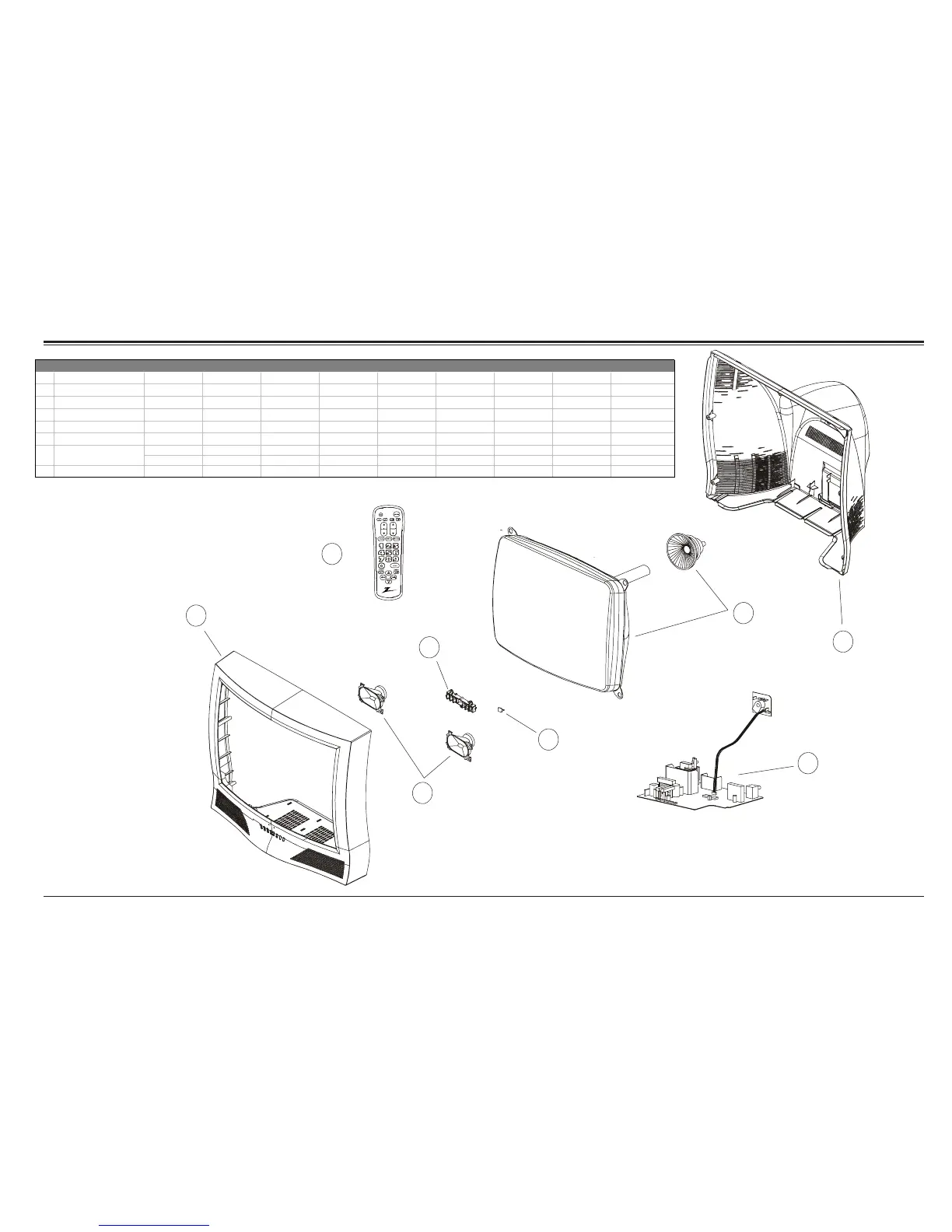

27/29V Table Top Set Exploded View
REF DESCRIPTION B27A30Z B27A30ZC B27A30ZC5 B27A30ZC6 B27A30ZC65 B27A30ZCF B27A30ZCF5 LGB29A30ZM LGB29A30ZM5
1 FRONT CABINET 014-12281-08 014-12281-08 014-12281-08 014-12281-08 014-12281-08 014-12281-08 014-12281-08 014-12281-08 014-12281-08
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03
3 KEYBOARD ASSEMBLY F-52954 F-52954 F-52954 F-52954 F-52954 F-52954 F-52954 F-52954 F-52954
4 IR LENS 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912
5 YOKE & CRT ASSEMBLY A-19058-03 A-19058-03 A-19058-01 A-19058-03 A-19058-01 A-19058-03 A-19058-01 A-19058-03 A-19058-01
6 REAR CABINET 014-12282-06 014-12282-06 014-12282-06 014-12282-06 014-12282-06 014-12282-06 014-12282-06 014-12282-06 014-12282-06
COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
8 REMOTE CONTROL 124-00229-01 124-00229-01 124-00229-01 124-00229-01 124-00229-01 124-00229-01 124-00229-01 124-00229-01 124-00229-01
7 MAIN MODULE
