CM151 5-8 CA - EXPLODED VIEWS

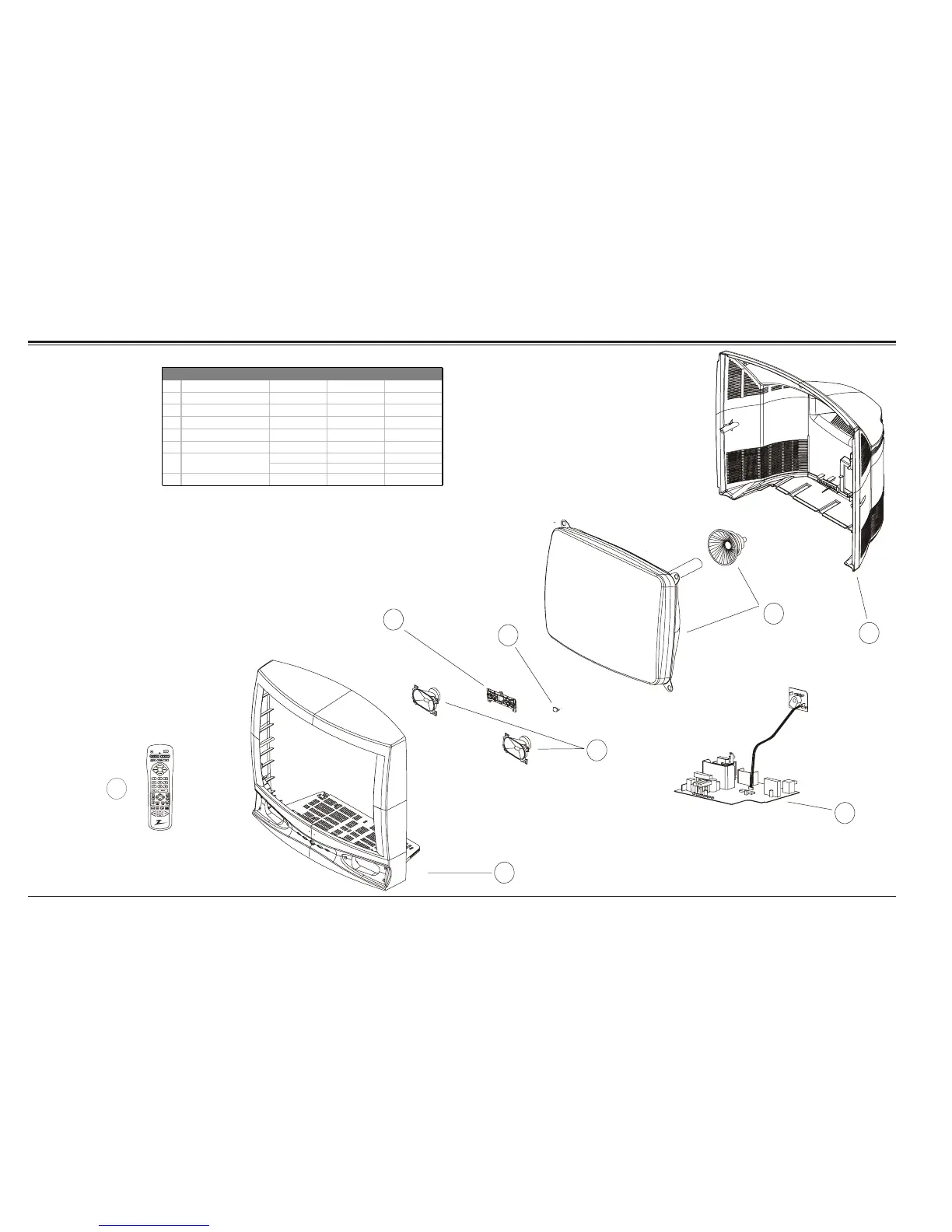

27V Table Top Set Exploded View
3
4
2
1
7
8
5
6
MBR3457Z
124-00233
REF DESCRIPTION B27A34Z B27A34Z6 B27A34ZF
1 FRONT CABINET 014-12347 014-12347 014-12347
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03
3 KEYBOARD ASSEMBLY F-53039 F-53039 F-53039
4 IR LENS 192-00923 192-00923 192-00923
5 YOKE & CRT ASSEMBLY A-19112 A-19112 A-19112
6 REAR CABINET 014-12254-06 014-12254-06 014-12254-06
COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
8 REMOTE CONTROL 124-00233-01 124-00233-01 124-00233-01
7 MAIN MODULE
