CM151 5-9 CA - EXPLODED VIEWS

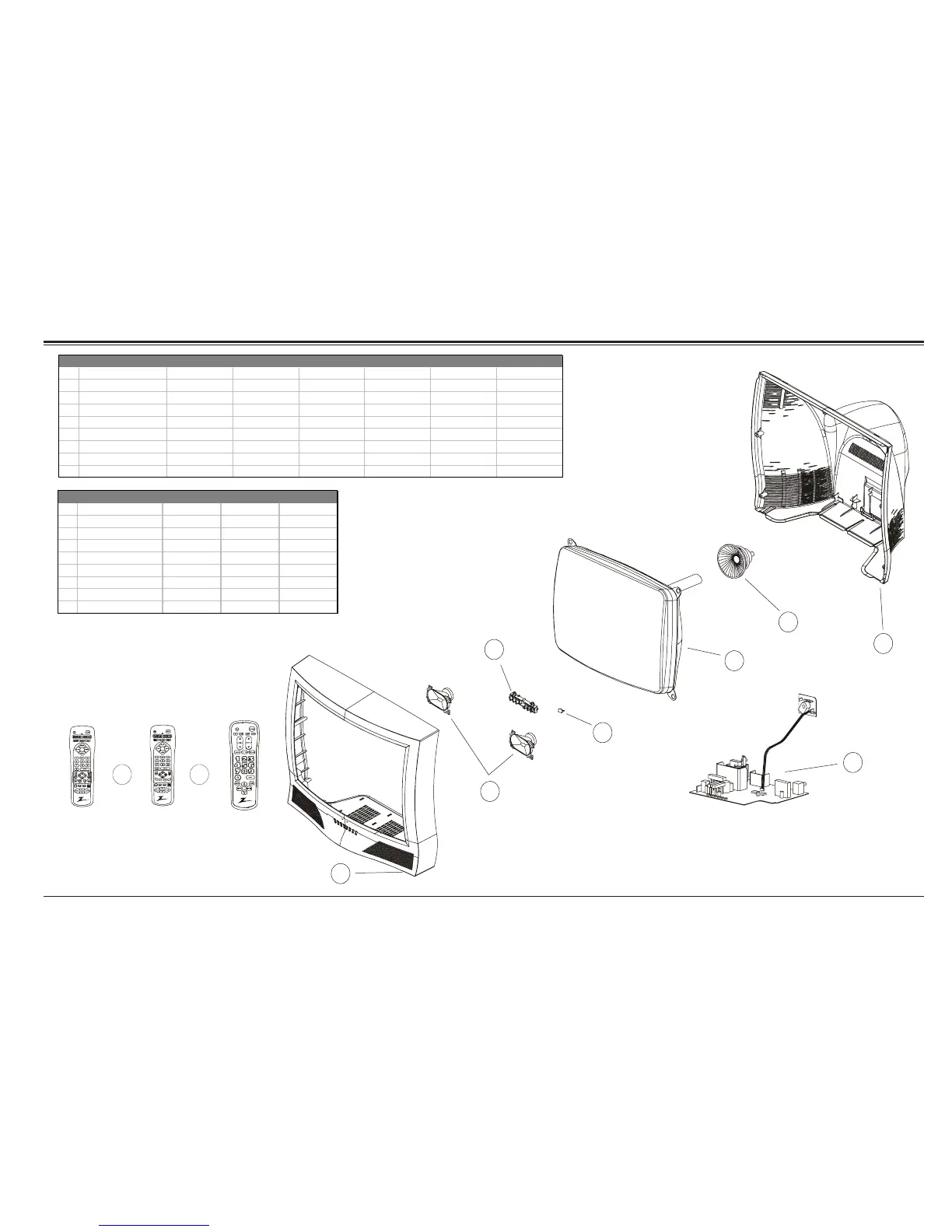

32V Table Top Set Exploded View
REF DESCRIPTION B32A24Z B32A24Z6 B32A24ZF B32A30Z B32A30Z6 B32A30ZF
1 FRONT CABINET 014-12284-23 014-12284-23 014-12284-23 014-12284-23 014-12284-23 014-12284-23
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03
3 KEYBOARD ASSEMBLY F-52060 F-52060 F-52060 F-52060 F-52060 F-52060
4 IR LENS 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912
5 CRT A81AGZ50X A81AGZ50X A81AGZ50X A81AGZ50X A81AGZ50X A81AGZ50X
6 YOKE 095-04517-01 095-04517-01 095-04517-01 095-04208-01 095-04208-01 095-04208-01
7 REAR CABINET 014-12285-08 014-12285-08 014-12285-08 014-12285-08 014-12285-08 014-12285-08
8 MAIN MODULE 009-02068 009-02068-01 009-02068 009-02072 009-02072-01 009-02072
9 REMOTE CONTROL 124-00233 124-00233 124-00233 124-00229-01 124-00229-01 124-00229-01
REF DESCRIPTION B32A34Z B32A34Z6 B32A34ZF
1 FRONT CABINET 014-12284-23 014-12284-23 014-12284-23
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03
3 KEYBOARD ASSEMBLY F-52060 F-52060 F-52060
4 IR LENS 192-00912 192-00912 192-00912
5 CRT A81AGZ50X A81AGZ50X A81AGZ50X
6 YOKE 095-04208-01 095-04208-01 095-04208-01
7 REAR CABINET 014-12285-08 014-12285-08 014-12285-08
8 MAIN MODULE 009-02075 009-02075 009-02075
9 REMOTE CONTROL 124-00233-01 124-00233-01 124-00233-01
8
3
4
2
1
7
6
5

MBR3457Z
124-00233
MBR3447Z
124-00233
MBR3346Z
124-00229-01
