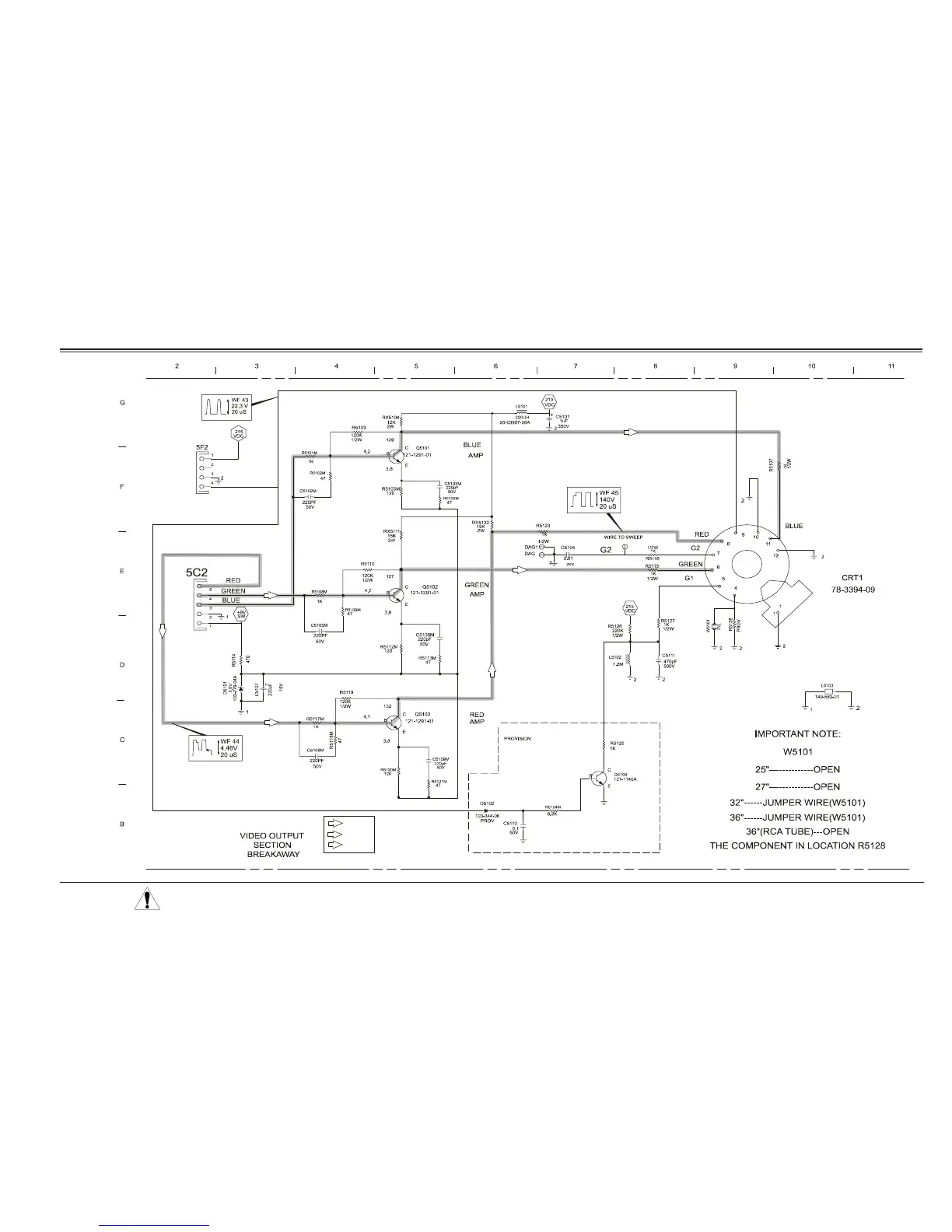

Zenith B27A74R - Video Output Schematic

CRITICAL SAFETY COMPONENTS ARE IDENTIFIED BY THE LETTER “X“ IN THEIR
COMPONENT DESIGNATORS. REPLACE ONLY WITH PART NUMBERS SPECIFIED.
ALL SYMBOLS WITH “M” ON END OF DESIGNATOR
INDICATE SURFACE MOUNTED COMPONENT
Video Output
Red Drive
Green Drive
Blue Drive
B
G
RR
G
G
RR
RR
RR
B
To
Video
Processor
(2C5 on
Sheet 5)
6-9 CA SHEET 9
