Mini glossary
75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire
sticking through the middle, and it screws onto the threaded jack on the back of your TV.
A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two screws
on one end and a round opening with a wire sticking out on the other end.

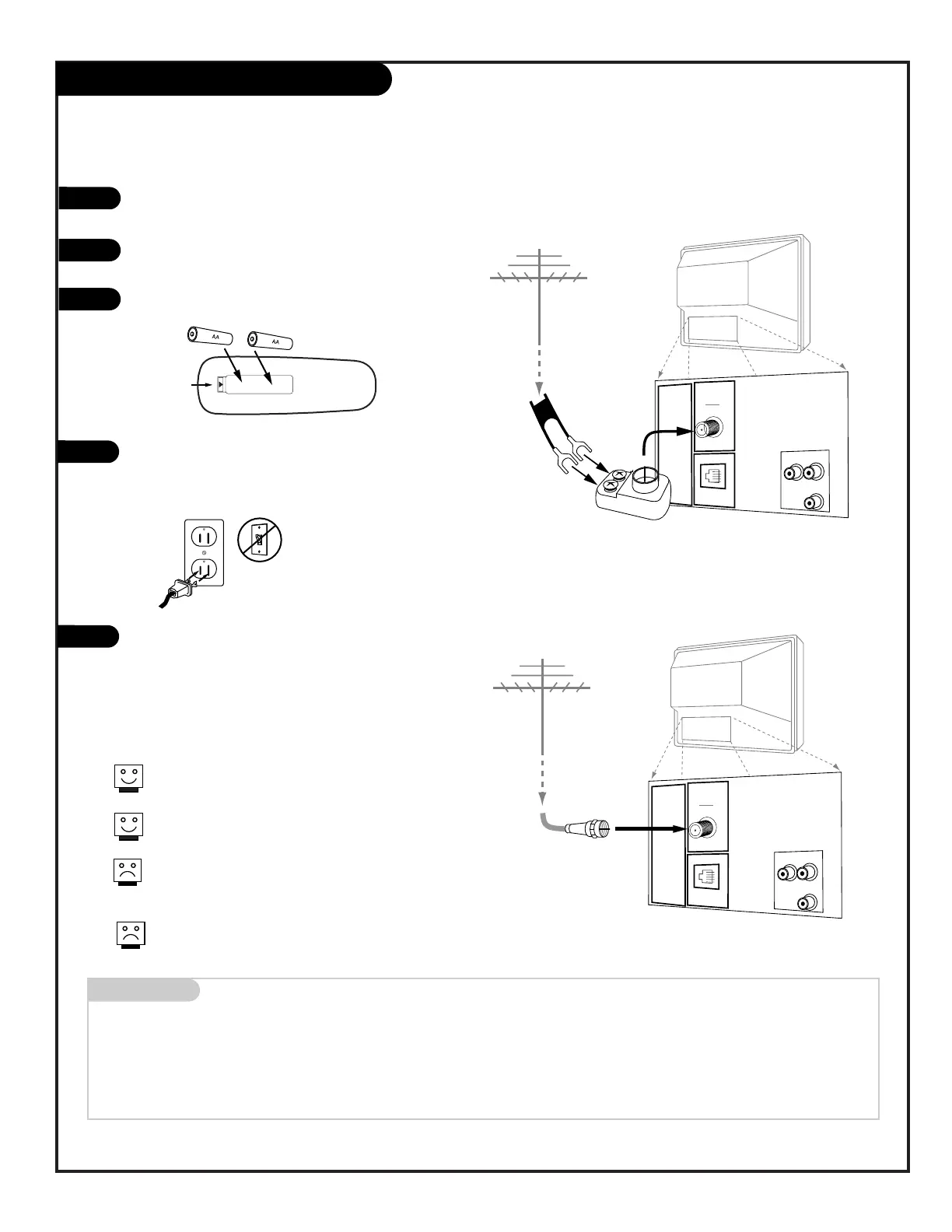

Hook Up Your Antenna to the TV
Connect an off-air antenna to the Concierge TV.
If you have a 75 ohm RF cable, then you don’t need
any adapters!
Remember, when screwing RF cables onto jacks, clock-
wise tightens, and counterclockwise loosens.
A 300 to 75 ohm adapter is not included with the
Zenith Concierge TV.
Model H2539Y does not have the MPI card.
300 TO 75 OHM
ADAPTER
Antenna
TV back
TV back panel
(expanded view)
VIDEO
IN
ANTENNA
CABLE
M.P.I.
Super
Port
SPEAKER
OUT
AUDIO
IN
Flat wire
(300 ohm)
300/75 ohm
Adapter
TV back
TV back panel
(expanded view)
VIDEO
IN
ANTENNA
CABLE
M.P.I.
RF coaxial wire
(75ohm)
Antenna
Super
Port
SPEAKER
OUT
AUDIO
IN
Locate the Antenna/Cable jack on the back of your
Concierge TV.
Connect the cable that runs from the wall directly to
this jack, according to the diagram to the right.
Remove the back of the remote and put in two AA bat-
teries.
Plug in your TV. Do not plug it into a switched outlet.
Your Entertainment Machine is designed to operate on
standard current, 120-volt 60 Hertz AC. Do not attempt
to operate it on DC Current.
Go to page 11 to Auto Program your Concierge TV.
back of
remote
1
2
3
4
5
