PAGE 8
206-3490-O

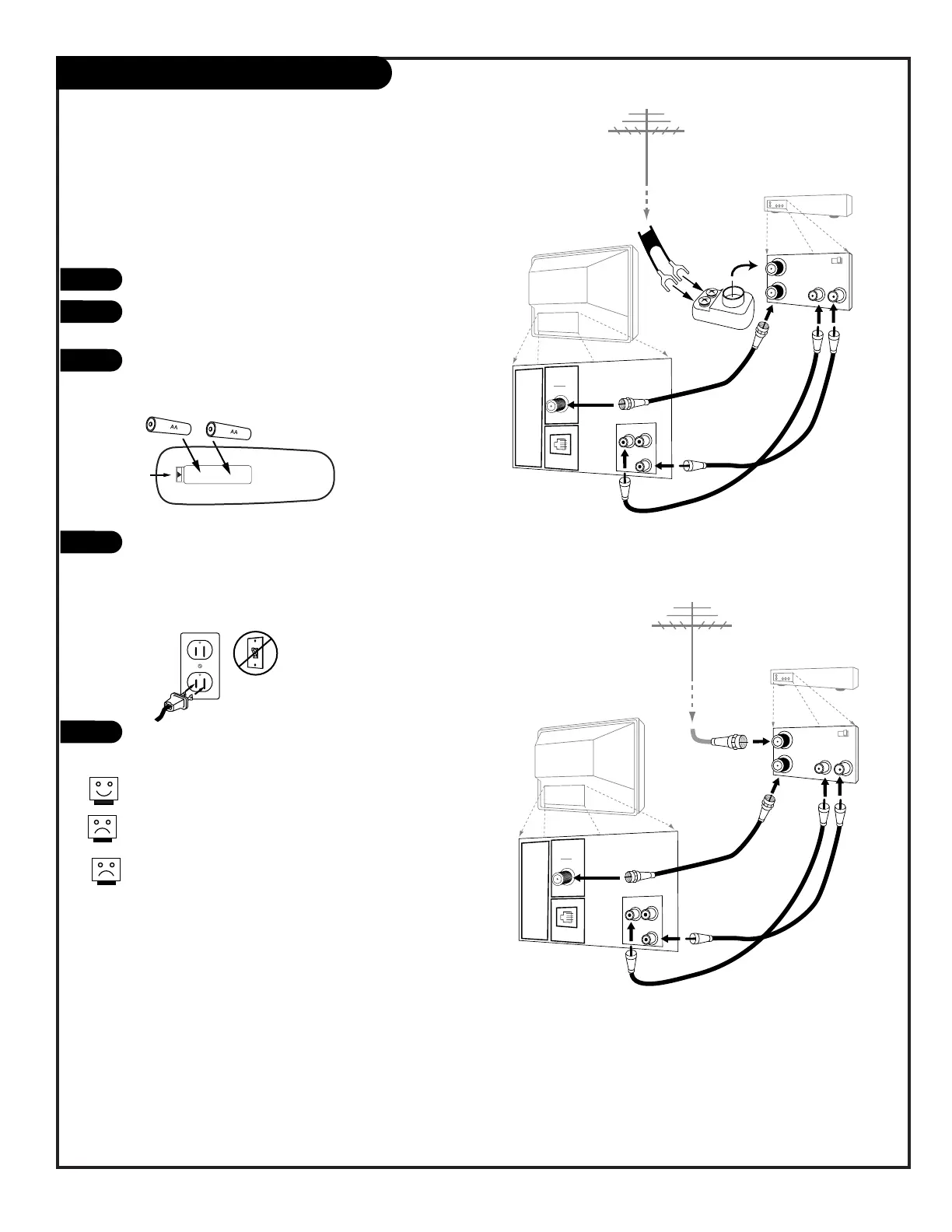

Hook Up Antenna and VCR to the TV
Connect your off-air antenna and VCR to the Concierge TV.
Remember, when screwing RF cables onto jacks, clockwise
tightens, and counterclockwise loosens.
No A/V cables are included with the Zenith Concierge TV.
Model H2539Y does not have the MPI card.
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
output
switch
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
TV back panel
(expanded view)
VIDEO
IN
ANTENNA
CABLE
M.P.I.
Super
Port
SPEAKER
OUT
AUDIO
IN
TV back
Flat wire
(300 ohm)
Antenna
300/75 ohm
Adapter
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
output
switch
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
TV back panel
(expanded view)
VIDEO
IN
ANTENNA
CABLE
M.P.I.
Super
Port
SPEAKER
OUT
AUDIO
IN
TV back
RF coaxial wire
(75ohm)
Antenna
Locate the Antenna/Cable jack on the back of the VCR.
Connect the cable that runs from the antenna directly to
this jack, according to the diagram to the right.
Remove the back of the remote and put in two AA batter-
ies.
Plug in the TV. Do not plug it into a switched outlet. The
Concierge TV is designed to operate on standard current,
120-volt 60 Hertz AC. Do not attempt to operate it on DC
Current.
Go to page 11 to Auto Program the Concierge TV.
back of
remote
1
2
3
4
5
