Hook Up Cable Service (CATV) and VCR
Connect a VCR and Cable service to the Concierge TV.
Leave the VCR and the television tuned to channel
three and use the cable box to change channels.
Remember, when screwing in RF cables onto jacks,
clockwise tightens, and counterclockwise loosens.
No A/V cables are included with your Concierge TV.
Model H2539Y does not have the MPI card.

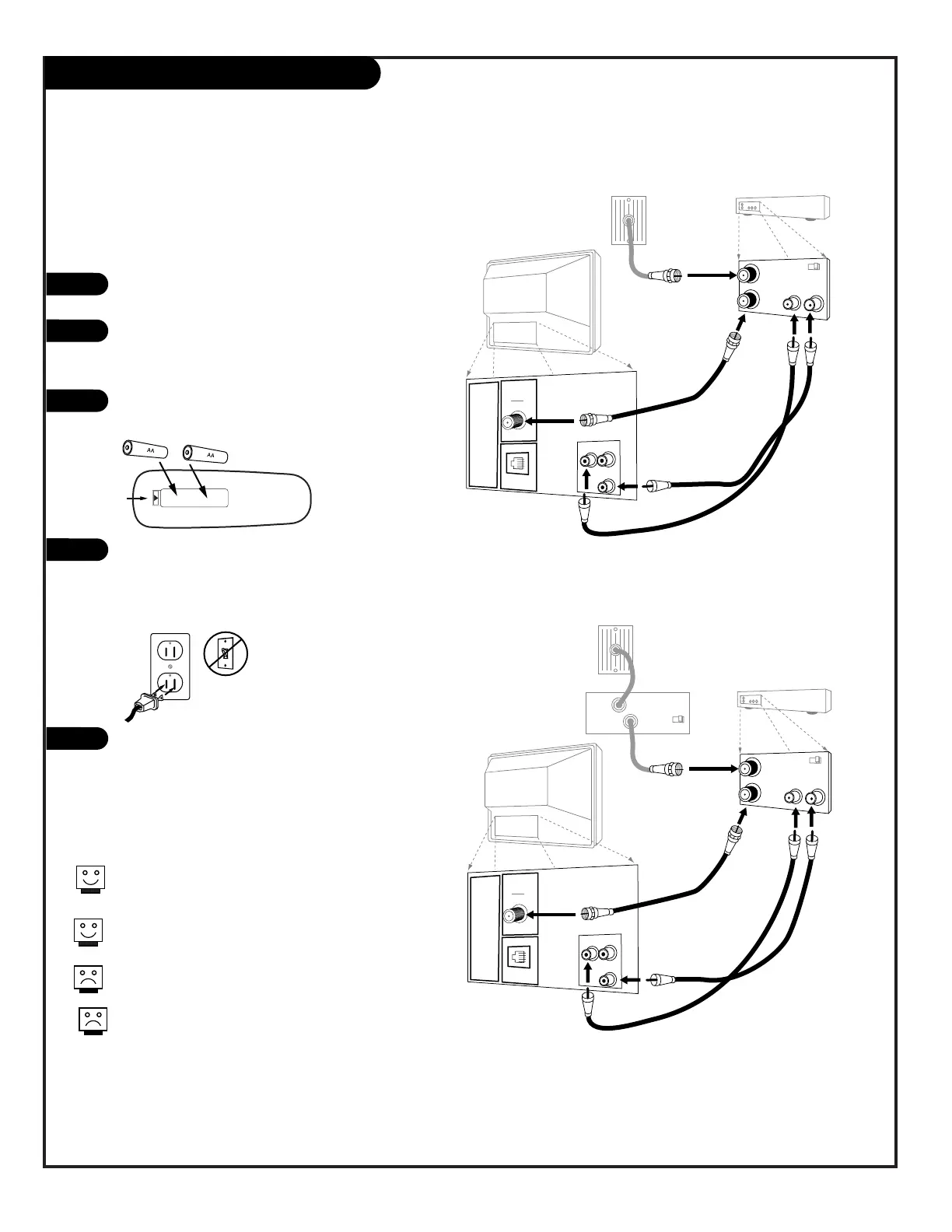

Cable TV
wall jack
Round wire (75ohm)
Cable box
In
Out
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
output
switch
3 4
output
switch
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
TV back panel
(expanded view)
VIDEO
IN
ANTENNA
CABLE
M.P.I.
Super
Port
SPEAKER
OUT
AUDIO
IN
TV back
Cable TV
wall jack
Round wire (75ohm)
In
Out
Audio
Video
3 4
VCR back
VCR back AV panel
output
switch
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
TV back panel
(expanded view)
VIDEO
IN
ANTENNA
CABLE
M.P.I.
Super
Port
SPEAKER
OUT
AUDIO
IN
TV back
Locate the Antenna/Cable jack on the back of the
VCR.
Connect the cable that runs from the wall directly
to this jack, according to the diagram to the
right.
Remove the back of the remote and put in two
AA batteries.
Plug in the TV. Do not plug it into a switched
outlet. The Concierge TV is designed to operate
on standard current, 120-volt 60 Hertz AC. Do not
attempt to operate it on DC Current.
Go to page 11 to Auto Program the Concierge TV.
