receiver chassis
and
insert
battery
cable
plug
into
receptacle
pro-
vided for
on battery.
When
making
replacement
of
the
battery
pack
be
positive
to
use
only Zenith
built Z985
battery
pack.
2.
BATTERY
OPERATION
A, INSERT
LINE
CORD
PLUG
into
the
Battery
Saver
Switch
socket
on top rear of
chassis.
(See
Figure
2.)

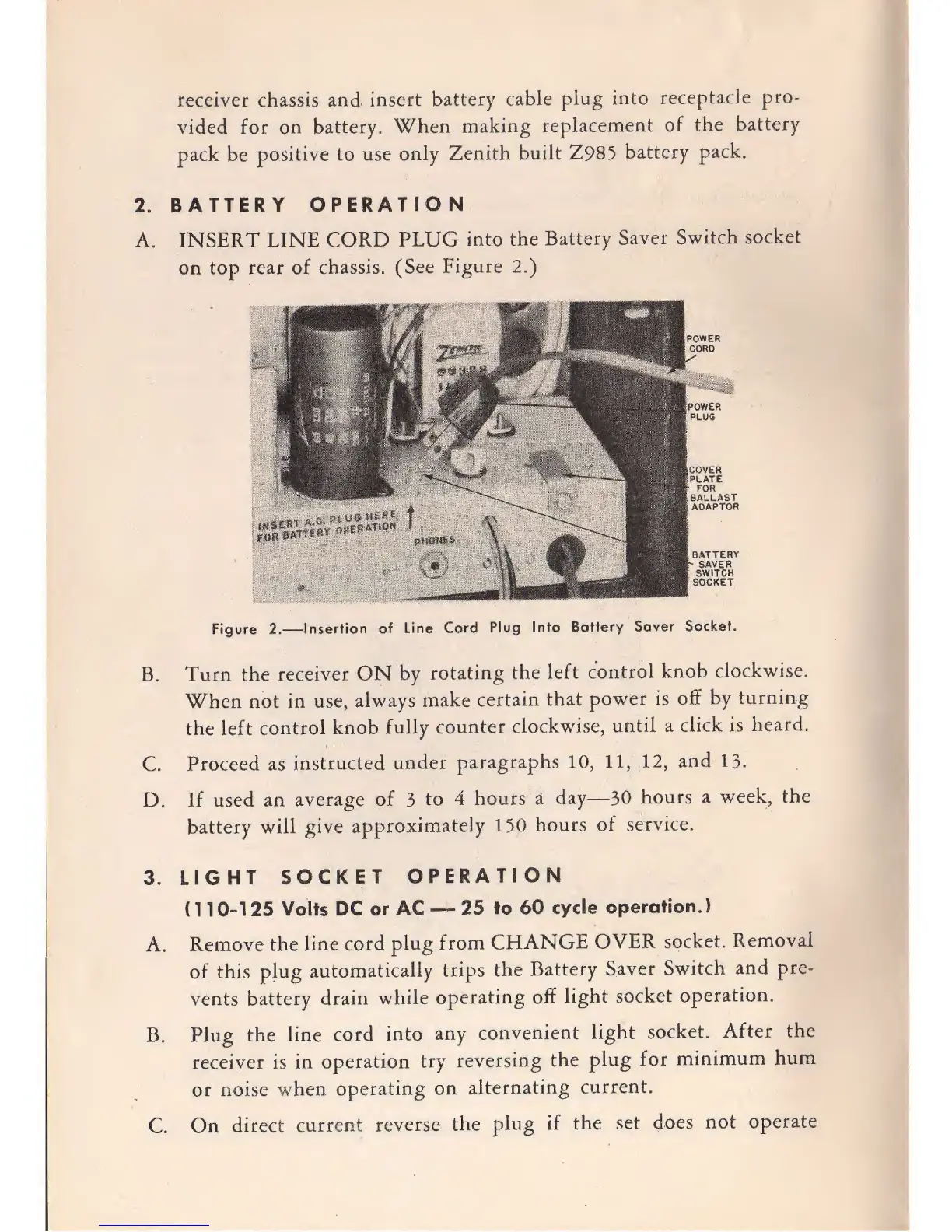

Figure
2.
—
Insertion
of
Line Cord
Plug
Into
Battery
Saver
Socket.
B. Turn
the
receiver
ON
by
rotating
the
left
control
knob
clockwise.
When not in
use,
always
make
certain
that
power
is
off
by
turning
the
left
control
knob
fully
counter
clockwise,
until
a
click is
heard.
C.
Proceed
as
instructed
under
paragraphs
10,
11,
12,
and
13.
D. If used
an
average
of
3
to
4
hours a
day
—
30
hours
a week,
the
battery
will
give
approximately
150
hours of
service.
3.
LIGHT
SOCKET
OPERATION
(110-1
25
Volts
DC
or
AC
—
25
to 60
cycle
operation.)
A.
Remove
the
line cord
plug
from
CHANGE
OVER
socket.
Removal
of
this
plug
automatically
trips
the
Battery
Saver
Switch
and
pre-
vents battery
drain
while
operating
off
light
socket
operation.
B. Plug
the
line
cord
into
any
convenient
light
socket.
After
the
receiver is
in
operation
try
reversing
the
plug
for
minimum
hum
or
noise
when
operating
on
alternating
current.
C.
On
direct
current
reverse
the
plug if
the
set
does
not
operate
