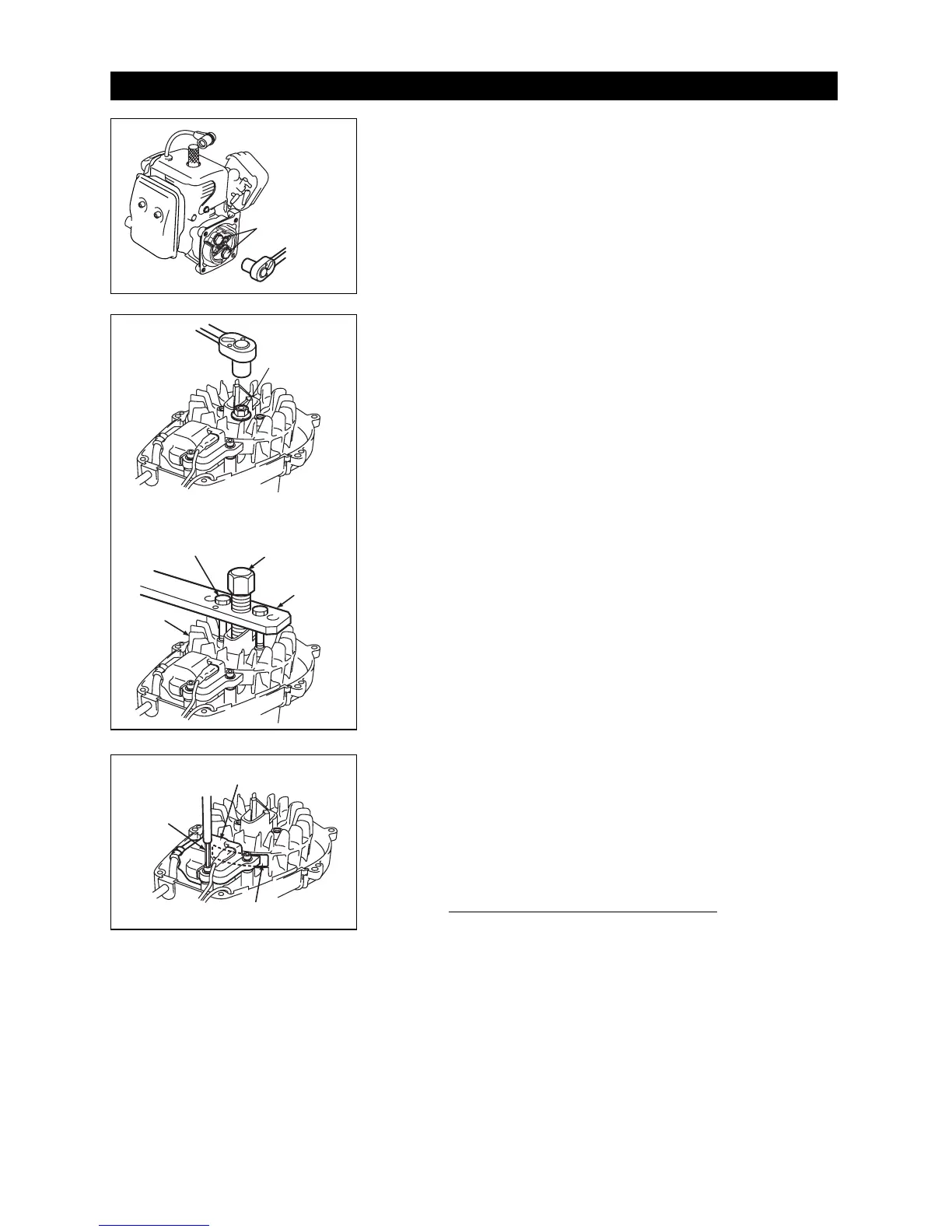

7. Service Guide

1) REMOVING CLUTCH SHOE

1. Remove the housing and plug cap.

2. Remove the spark plug and fit the

stopper(4810-96220) into the plug hole.

3. Remove clutch bolts(14mm Hex.).

2) REMOVING ROTOR (FAN)

4. Remove the rotor nut(12mm Hex.).

5. Remove the rotor using the puller assy (2890-

96100). Apply 8mm puller bolts.

3) ASSEMBLING ROTOR

Insert the gauge(3330-97310) in between the

rotor magnet metal and the coil.Tighten screws

while pressing the coil against the rotor.

Gap Specification 0.3 ~ 0.4mm

Clutch Bolt

(14mm Hex.)

Rotor Nut

17mm Hex.

Puller Bolts

Puller

Rotor

Wrench

Air Gap Gauge

Ignition Coil
